12. ABSOLUTE POSITION DETECTION SYSTEM
12 - 23

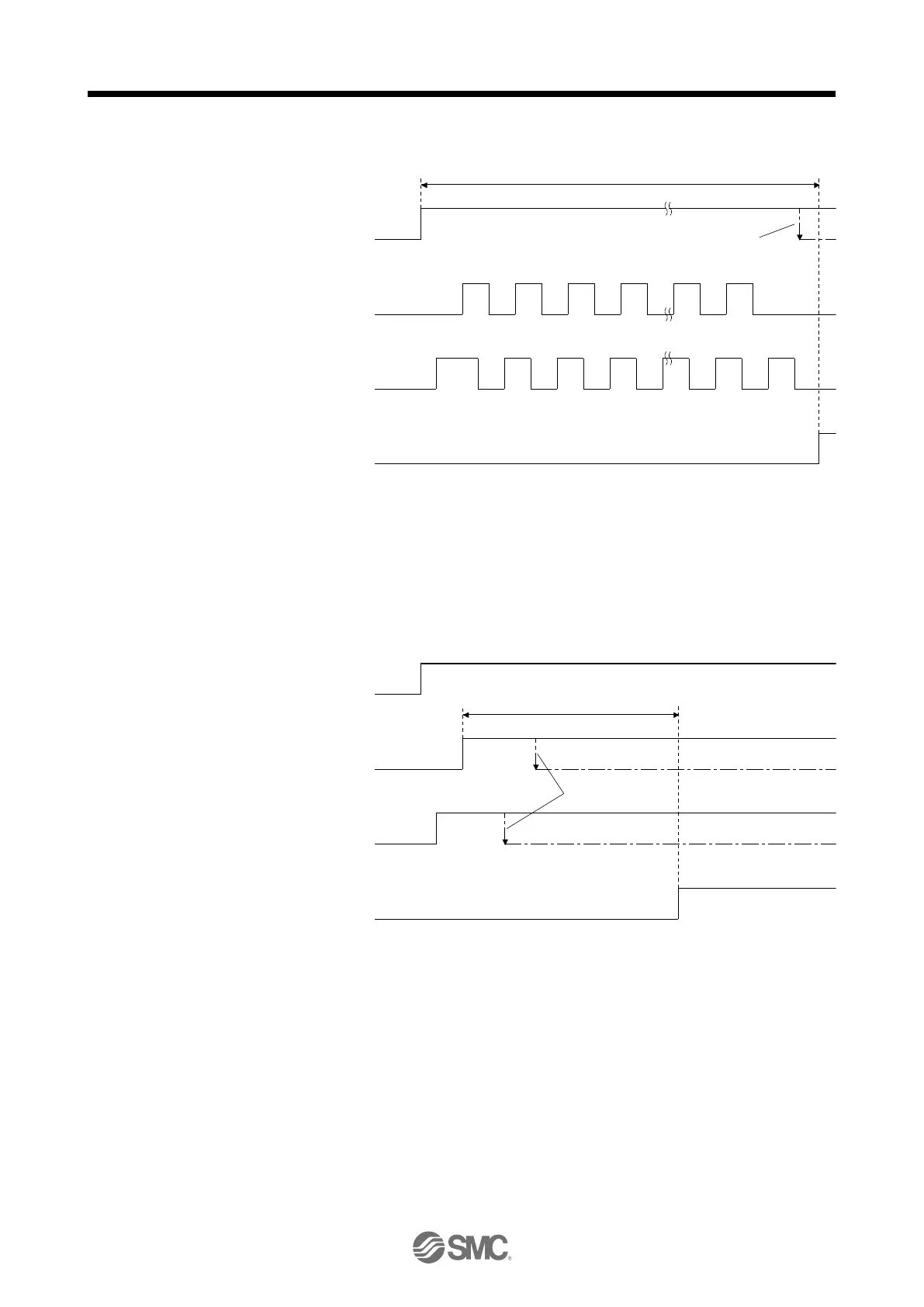

generate the ABS communication error. Generate the ABS communication error if [AL. E5 ABS time-out
warning] is generated at the driver due to an ABS transfer mode completion time time-out.
OFF
ON
OFF
ON
OFF
ON
1 2 3 4 18 19
1 2 3 4 18 19
5 s
ABSM
ABSR
ABST
ABS communication
error
The signal does not go OFF
NO
YES
(3) The time required for the ABS request signal to go off after it has been turned on (ABS transfer time) is
checked. To detect [AL. E5 ABS time-out warning] at the driver. If the ABS request remains on for longer
than 1 s, regard that a fault relating to the ABS request signal or the ABST has occurred and generate
the ABS communication error.
Generate the ABS communication error if [AL. E5 ABS time-out warning] is generated at the driver due to
an ABS request off time time-out.
OFF
ON
OFF
ON
OFF
ON
1 s
ABSM
ABSR
ABST
ABS communication
error
The signal does
not go OFF
NO
YES
