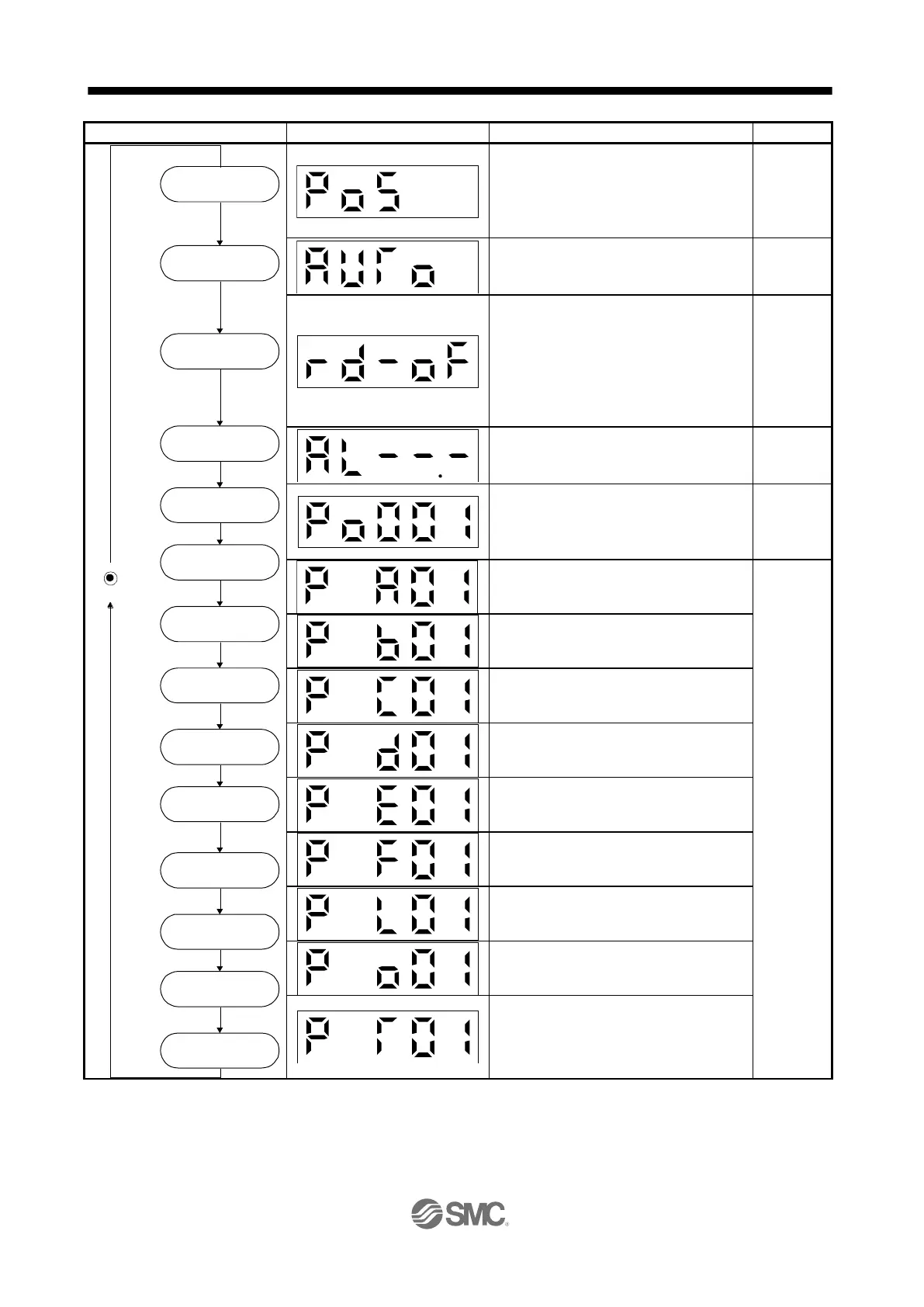

Servo status display.
For the point table method and program
method, "PoS" is displayed at power-on.
For the indexer method, "C" is displayed.
(Note)
One-touch tuning
Select this when performing the one-touch
tuning.
Sequence display, drive recorder
enabled/disabled display, external I/O signal
display, output signal (DO) forced output, test
operation, software version display, VC
automatic offset, servo motor series ID
display, servo motor type ID display, servo
motor encoder ID display, teaching function
Current alarm display, alarm history display
and parameter error No./point table error No.
display
Display and setting of point table data.
The screen is displayed only in the point table
method, and is not displayed in other control
mode.
Display and setting of basic setting
parameters.
Display and setting of gain/filter parameters.
Display and setting of extension setting
parameters.
Display and setting of I/O setting parameters.
Display and setting of extension setting 2
parameters.
Display and setting of extension setting 3
parameters.
Display and setting of linear/DD motor setting
parameters.
Display and setting of option setting
parameters.
Display and setting of positioning control
parameters.
When the axis name is set to the driver using setup software (MR Configurator2
TM
), the axis name is displayed and the servo
status is then displayed.
Status display
Diagnosis
Point table setting
Basic setting
parameters
Gain/filter
parameters
Extension setting
parameters
Extension setting 2
parameters
Extension setting 3
parameters
I/O setting
parameters
button
MODE
One-touch tuning
Positioning control
parameters
Linear/DD motor
setting parameter
Option setting
parameters
Alarm
