16. POSITIONING MODE
b) Position data in degrees

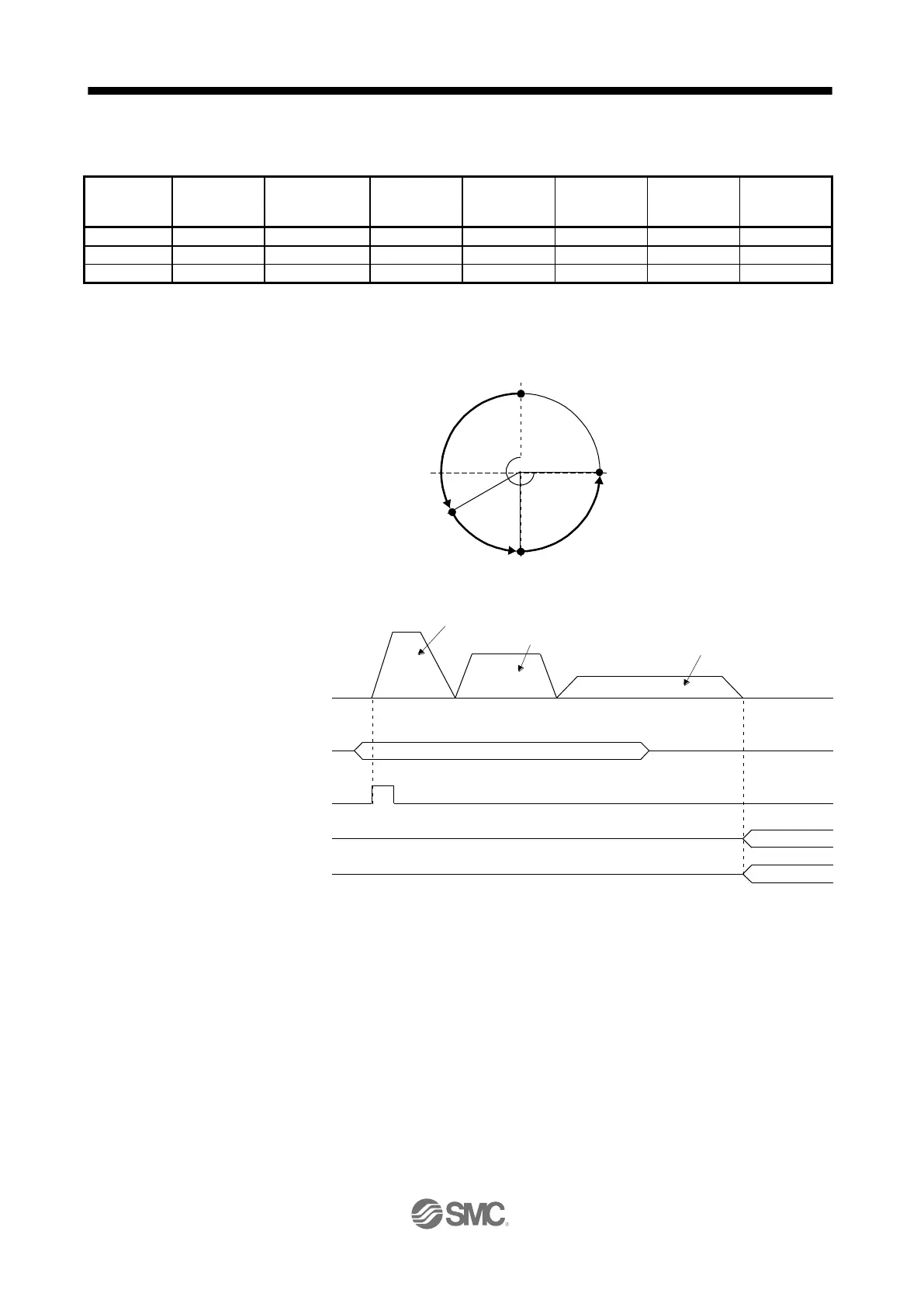

The following shows an operation example with the set values listed in the table below.
Point
table No.
Position data
[degree]
Servo motor
speed [r/min]
Acceleration
time constant
[ms]
Deceleration
time constant
[ms]
Dwell [ms]
Auxiliary
function
M code
1
120 .000
3000
100
150
0
1
05
2
60.000
1500
150
100
0
1
10
3
90 .000
1000
300
100
Disabled
0 (Note)
15
Note.
Always set "0" or "2" to the auxiliary function of the last point table among the consecutive point tables.
0: When using the point table under the absolute value command method
2: When using the point table under the incremental value command method
120
(-240)
0
9060
120
Point table No. 1
270
(-90)
Point table No. 3
180
(-180)
Point table No. 2
Servo motor speed
Forward rotation
0 r/min
Reverse rotation
Point table No. to select
ST1 (Forward rotation start)
PT0 (Point table No. output 1)
to PT7 (Point table No. output 8)
(Note)
ON
OFF
M code output
Point table No. 1
1
1
05
Point table No. 2
Point table No. 3
