SMC Networks LECSB2-T Series User Manual

16 - 216

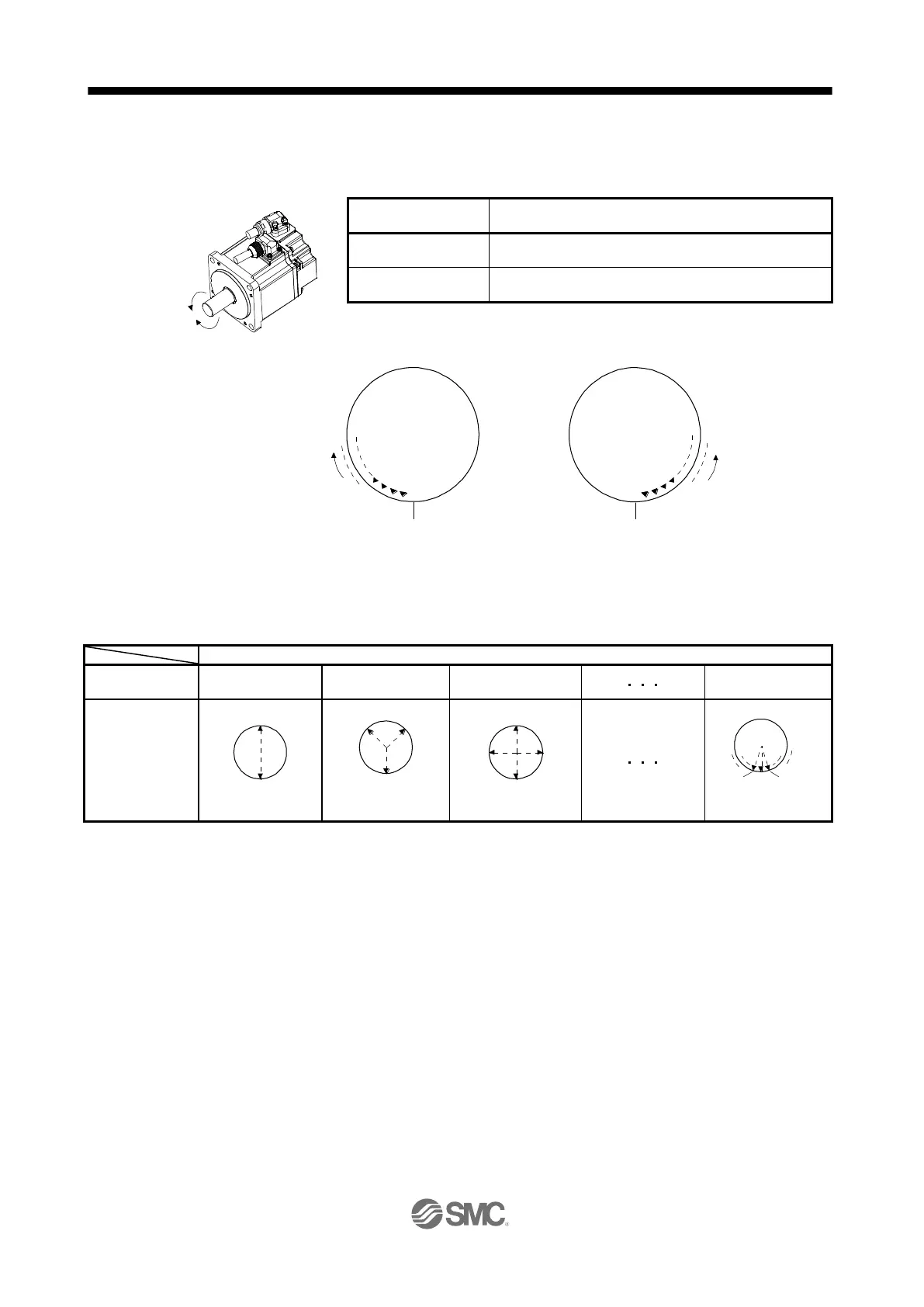

16. POSITIONING MODE
(2) Other parameter settings
(a) Setting assignment direction of station No.
Select an assignment direction of station No. with [Pr. PA14].
[Pr. PA14] setting
Servo motor rotation direction
ST1 (Forward rotation start) is on.
0
Next station No. will be assigned in CW direction in order of
1, 2, 3…
1
Next station No. will be assigned in CCW direction in order
of 1, 2, 3…
[Pr. PA14]: 0 (initial value)
[Pr. PA14]: 1
(b) Setting number of stations
Set a number of stations to [Pr. PT28].
[Pr. PT28] setting
Number of
stations
2
3
4
255
Station No.
CW
CCW
Station No.
1
2
3
4
CW direction
Station No.
1
2
3
4
CCW direction
No. 0
No. 1
No. 2No. 1
No. 0
No. 3
No. 0
No. 1
No. 2
No. 0
No. 254No. 1
