Set the electronic gear within the following range. Setting out of the range will trigger [AL. 37 Parameter
error].
(a) Set values to make numerator and denominator 16384 or lower if the electronic gear (CMX/CDV) is
reduced to its lowest terms.
(b) Set values to make numerator and denominator 16777216 or lower if (CMX × Pt)/(CDV × 360000) is
reduced to its lowest terms.

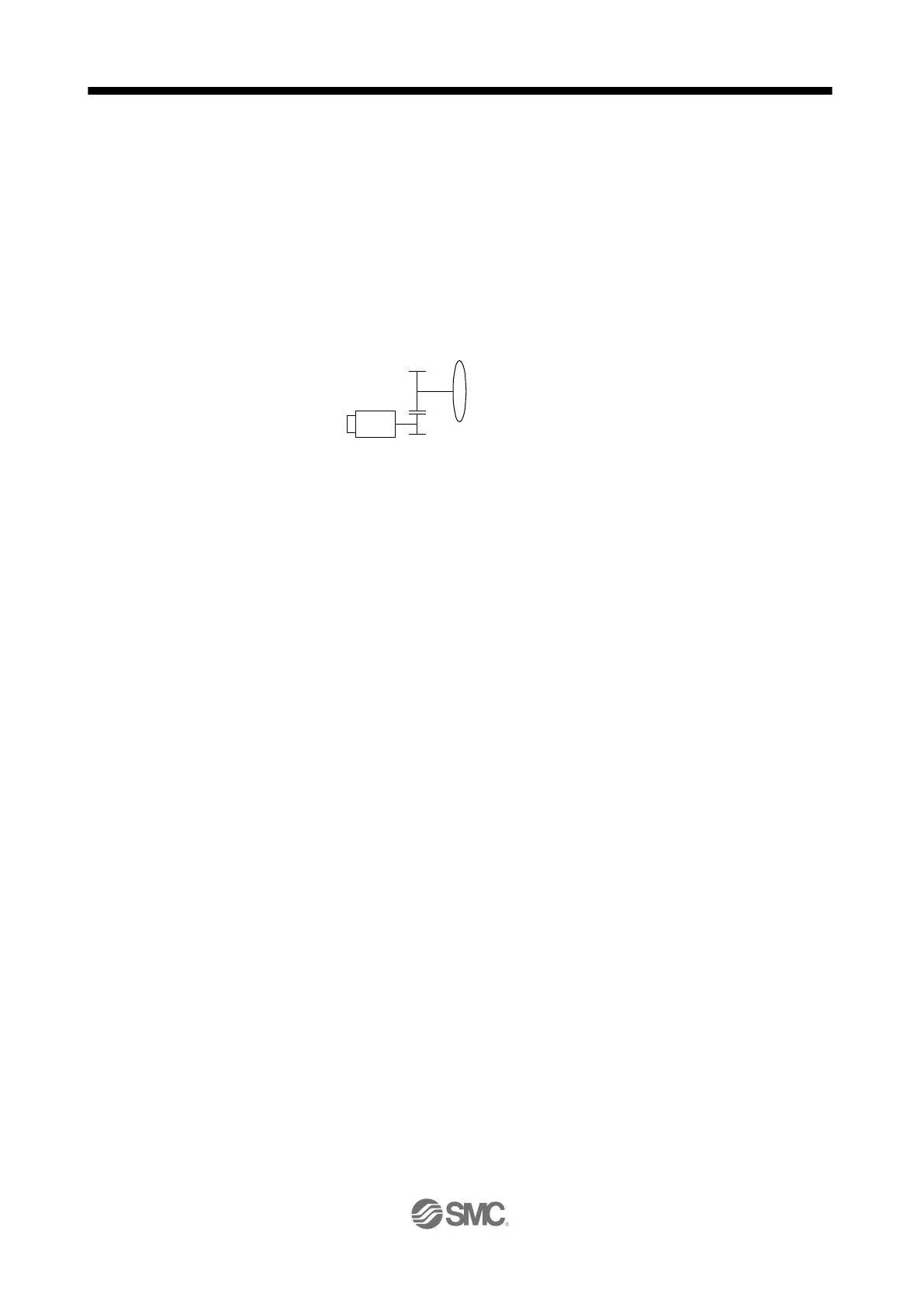

The following shows a setting example of the electronic gear.
Number of gear teeth on machine side: 25, number of gear teeth on servo motor side: 11
Set [Pr. PA06] = 25 and [Pr. PA07] = 11.
P
t
(Servo motor resolution): 4194304 pulses/rev
Z1: Number of gear teeth on servo motor side
Z2: Number of gear teeth on machine side
Z1: Z2 = 11:25
