16. POSITIONING MODE
(e) Dwell
Reads dwell of point tables.
1) Transmission
Transmits the command [6] [0] + the data No. [0] [1] to [F] [F] corresponding to the point tables to
read. Refer to section 10.1.1.
2) Return
The slave station returns the dwell of point table requested.
(f) Auxiliary function
Reads auxiliary function of point tables.
1) Transmission
Transmits the command [6] [4] + the data No. [0] [1] to [F] [F] corresponding to the point tables to
read. Refer to section 10.1.1.
2) Return
The slave station returns the auxiliary function of point table requested.

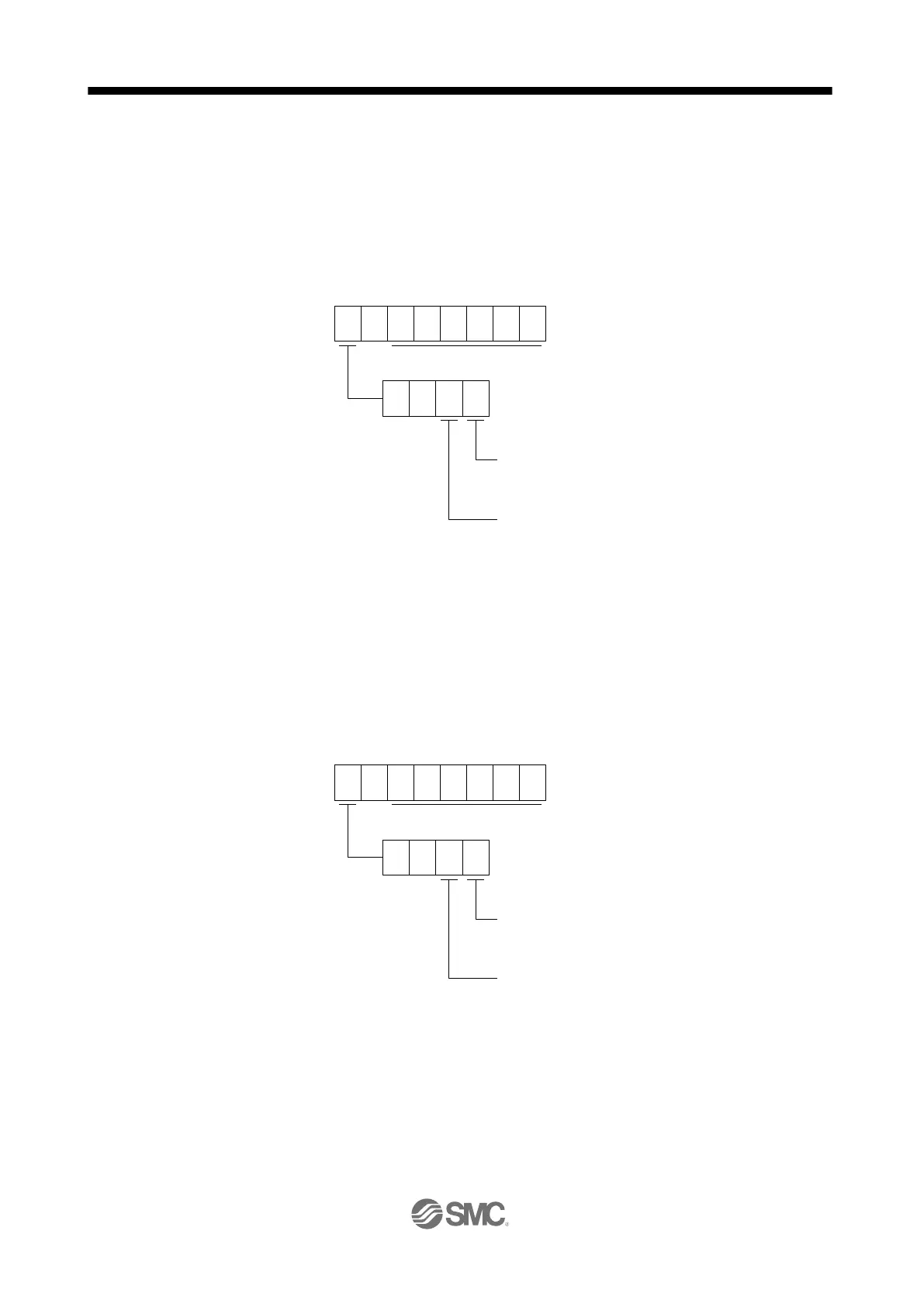

Data is transferred in hexadecimal.
Display type
0: Data is used unchanged in hexadecimal.
1: Data must be converted into decimal.
Position data writing type
0: Enabled after writing
1: Enabled when power is cycled after writing
0 0
0
Data is transferred in hexadecimal.
Display type
0: Data is used unchanged in hexadecimal.
1: Data must be converted into decimal.
Position data writing type
0: Enabled after writing
1: Enabled when power is cycled after writing
0 0
0
