3. SIGNALS AND WIRING
3 - 54
Note 1.
P: Position control mode, S: Speed control mode, T: Torque control mode
2.

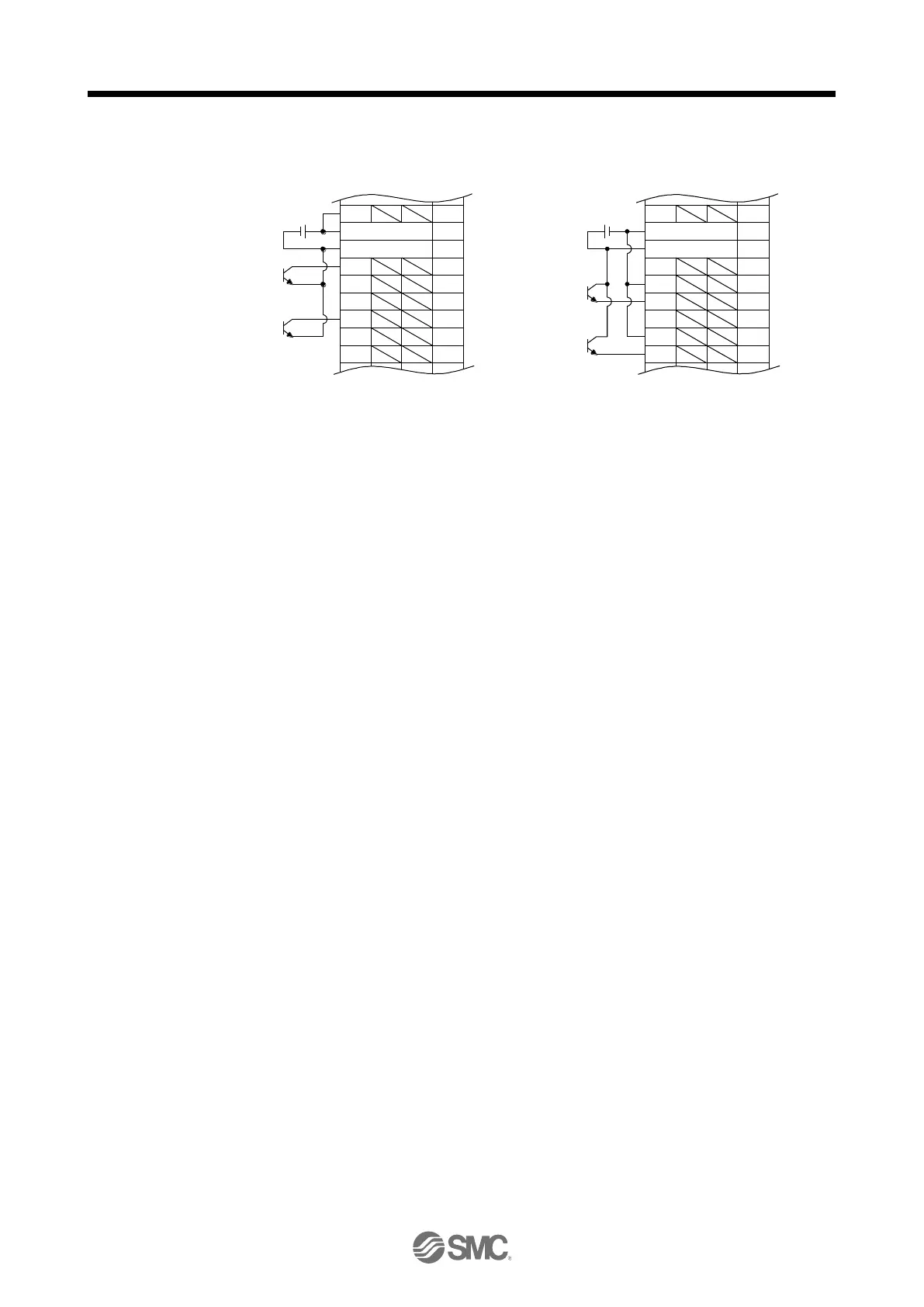

This is for the differential line driver pulse train input. For the open-collector pulse train input, connect as follows.
DOCOM 46
OPC 12
20
47
PP 10
PG 11
NP
35
NG 36
DICOM
DOCOM
PP2 37
NP2 38
24 V DC
DOCOM 46
OPC 12
20
47
PP 10
PG 11
NP
35
NG 36
DICOM
DOCOM
PP2 37
NP2 38
24 V DC
For sink input interface
For source input interface
3.
This diagram shows sink I/O interface. For source I/O interface, refer to section 3.9.3.
4.
CN2L can not be used. Connect the encoder cable to CN2.
5.
The illustration of the 24 V DC power supply is divided between input signal and output signal for convenience. However, they
can be configured by one.
7.
Output devices are not assigned by default. Assign the output devices with [Pr. PD47] as necessary.
