5 OPERATION
5.78 MHL360 E
Magnetization and demagnetization
Magnetization and demagnetization is per-
formed with the button toggle (212/43) on the
left-hand four-way lever. On the comfort mag-
net system display, indicators (211/1) and
(211/2) indicate the status of the magnetic
plate. Display (211/3) shows the relative mag-
netization time of the magnetic plate in rela-
tion to the total operating time of the magnet
system.
h Chapter 5.20.1.1 Magnetic plates
B SB511 38
Indicator (211/1) with green back-
ground: Magnetic plate is being magnet-
ized/is magnetized
B SB511 39
Indicator (211/2) with green back-
ground: Magnetic plate is being demag-
netized
Material handing in normal mode
►
Select the operating mode for large parts,
medium parts or chips.
►
Move the magnetic plate toward the mate-
rial.
►
For magnetization, briefly press button
toggle (212/43). Do not do this until just be-
fore you position the magnetic plate.
►
After no more than 5 seconds withdraw the
magnetic plate with the material attached.
► To drop the material, briefly press button
toggle (212/43).
Sorting in jog mode
j CAUTION
Risk of injury from falling sorting
material
• Use jog mode only at low working
heights for sorting.
In an emergency: Administer first
aid, seek treatment from a doctor
►
Select jog mode.
►
To pick up the material, press button toggle
(212/43) and hold it down.
►
To drop the material, release button toggle
(212/43).
09 :43 11 .03. 2 011
XX X / XXXX / LE X X X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
24.X V
120 %
0 %
100 %
80 %
60 %
40 %
20 %
F
100
90
80
70
60
50
40
30
20
10
0 %
CAN
M AG NE T V OL TA GE
M AG NE T C UR R E NT
M AG NE T P OW ER
E L EC T R. T EM P.
TO RQU E
S PE ED
M C U -P LC ST AT US
0
0 [1/min]
0 [N m]
0 [° C]
0 [W ]
0 [A]
0 [V]
ARB EITSHYDRAULIK IST GE SPE RRT
FEHLE RMELDUNG
ISO
0 kOhm
Se lftest
1
BSB51137
3
2

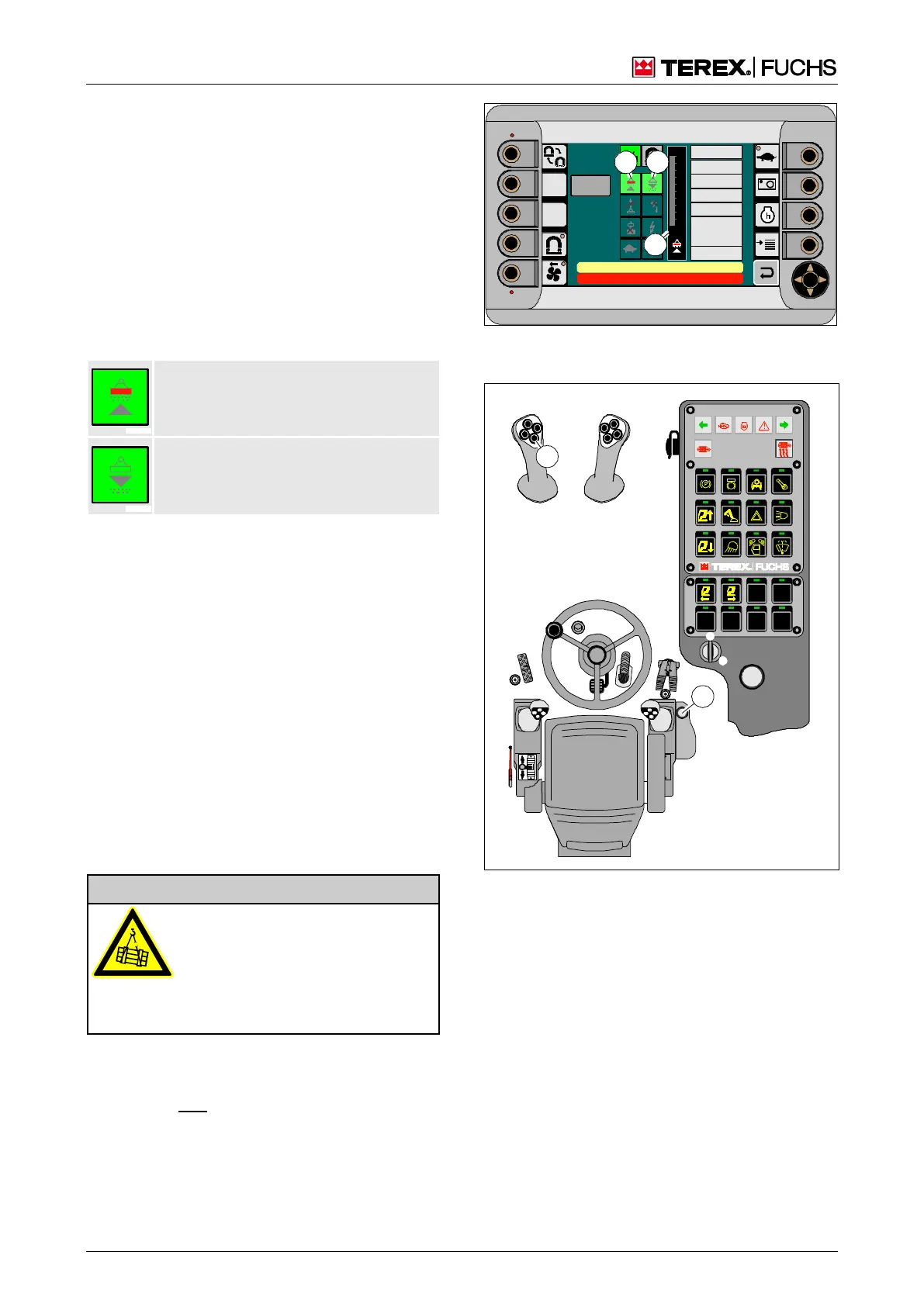

Fig. 211 Comfort magnet system display during
magnetization
I
0
BSB50678
43
15
Fig. 212 Magnetic plate button toggle
