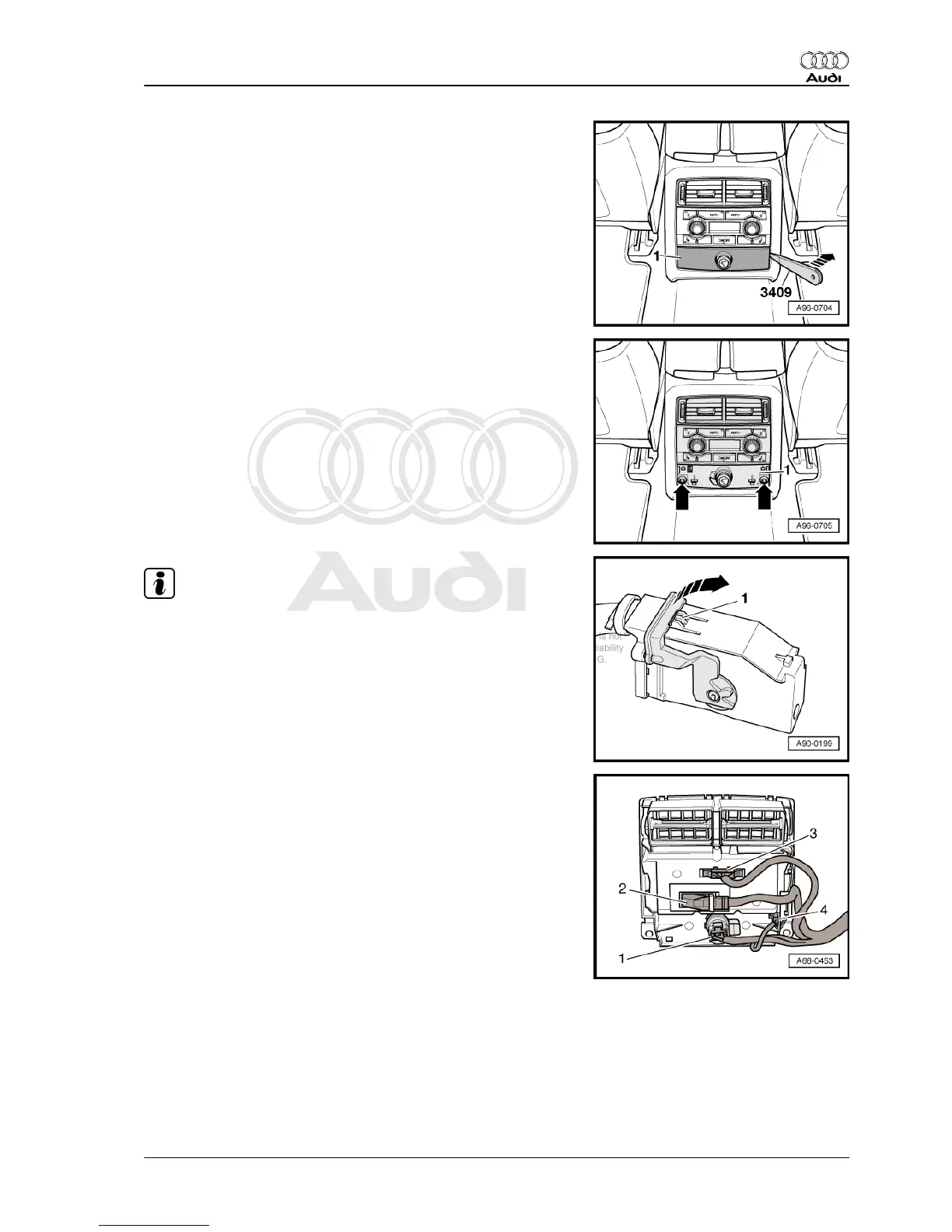

Vehicles with rear Climatronic operating and display unit
– Prise the trim -1- off the mounting frame using the removal
wedge -3409- -arrow-.
All vehicles (continued)
– Screw out the bolts -arrows-.
– Detach the mounting frame -1- with air vents and ashtray/rear
Climatronic operating and display unit.
Note
To unplug the connector at the rear Climatronic operating and
display unit, press the catch -1-, turn the holder in arrow direction
and unplug the connector.
– Unplug the connectors -1 ... 4-.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
3. Dash panel 229
