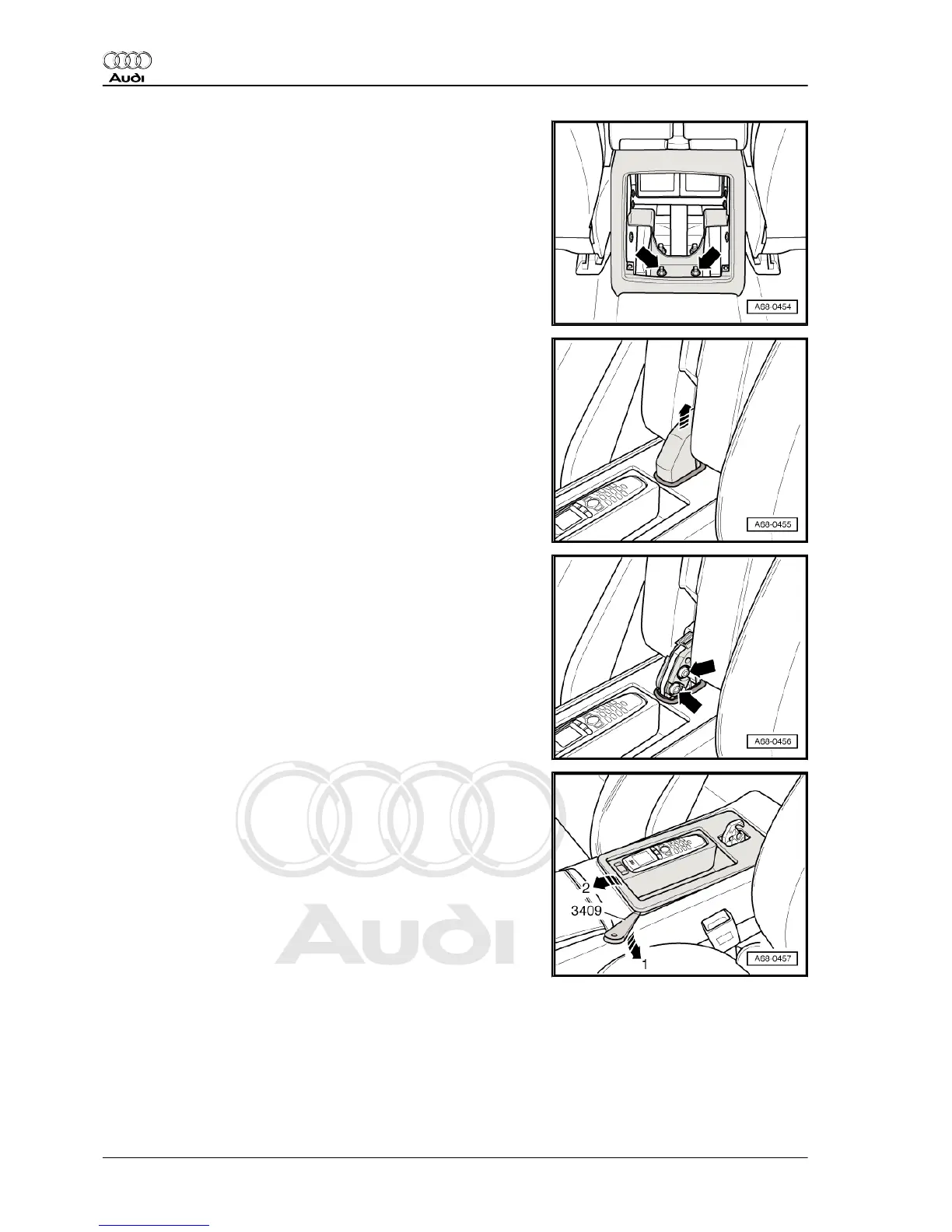

– Unscrew the nuts -arrows- for the rear centre console.
Vehicles with split centre armrest
– Fold the centre armrests upwards.
– Lift off the armrest hinge trim -arrow-.
– Screw out the bolts -arrows-.
– Unplug the connectors for the storage compartment light in the
centre armrests.
– Lift off the centre armrests.
Vehicles with one-piece centre armrest
– Fold the centre armrest upwards.
All vehicles (continued)
– Use the removal wedge -3409- to prise the front corners of the
storage compartment out of the centre console -arrow 1- and
pull the storage compartment forwards -arrow 2-.
