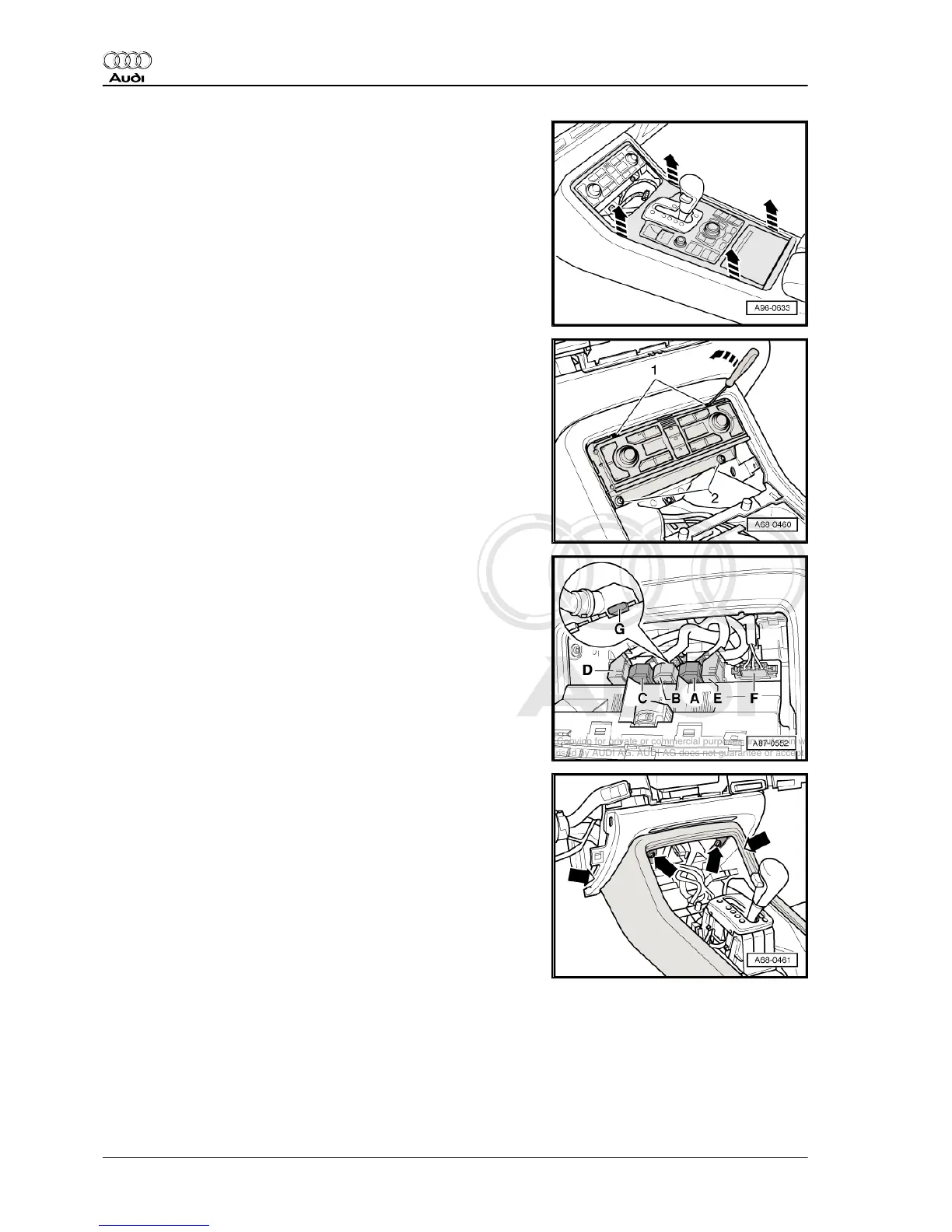

– Lift off the centre console switch trim -arrows-.
– Unplug the connectors.
– Screw out the bolts -2-.
– Release the retaining springs -1- with a small screwdriver
-arrow-.
– Swivel the top edge of the Climatronic control unit -J255- to
the rear.
– Take the Climatronic control unit out of the mount.
– Unplug the connectors -A ... E- by releasing the retainer tab
-G-.
– Unplug the connector -F-.
– Screw out the bolts -arrows-.
