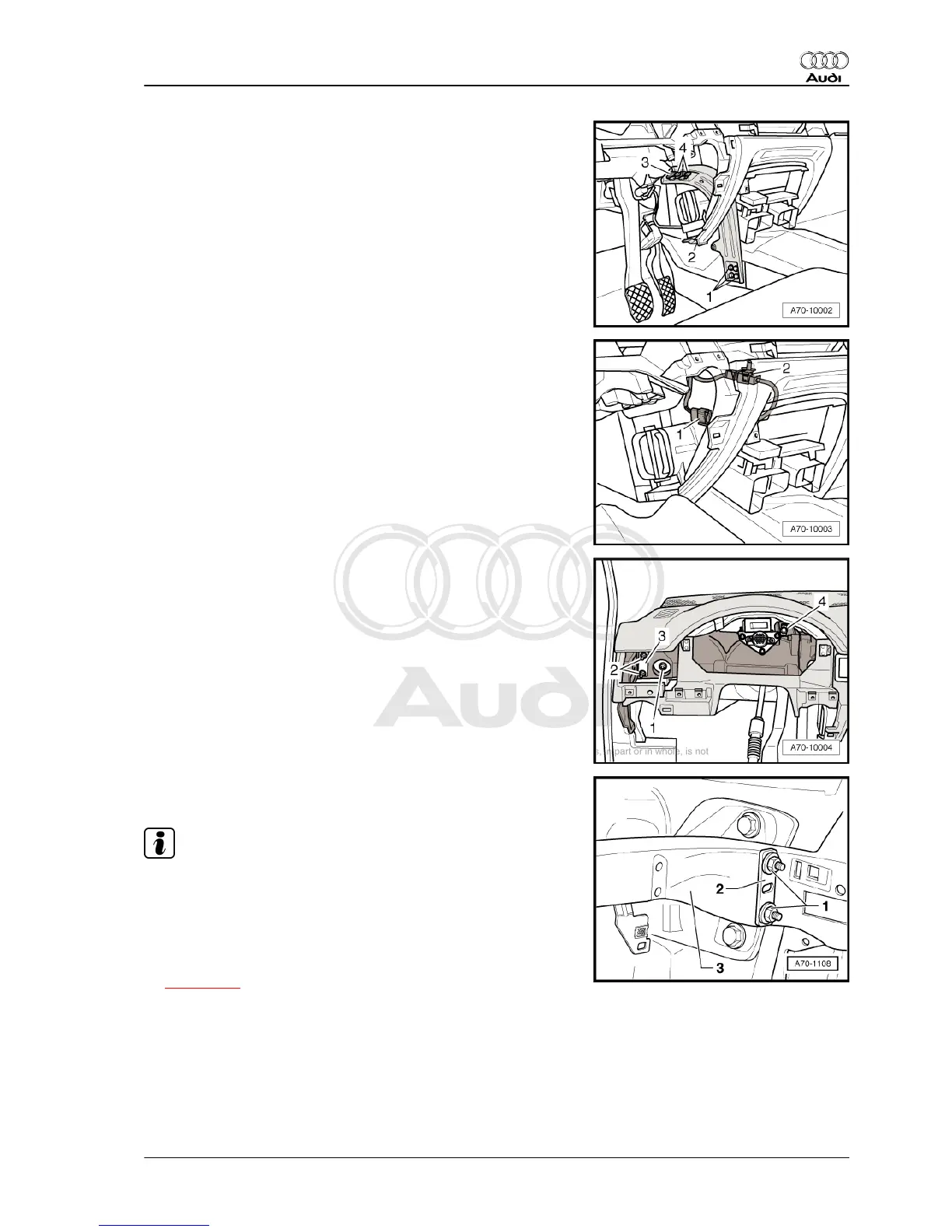

– Screw out the bolt -2- at the bottom of the dash panel.
– Screw out the bolts -1- and -4- and detach the support for the
dash panel central tube with packing plates -3-.
– Unplug the connector at the left centre vent control motor -
V110- -Item 1- and at the open and close display motor -V301-
-Item 2-.
– Unscrew the nuts -1- and -2- on the left at the central tube and
detach the packing plate -3-.
– Screw out the bolt -4-.
– Unscrew the nuts -1- on the right at the central tube and detach
the packing plate -2-.
Note
A second mechanic is required to detach the central tube with
dash panel.
– Take the central tube -3- with dash panel out of the passenger
compartment and set it down on a soft surface.
– If necessary, separate the dash panel from the central tube
⇒ page 241 .
