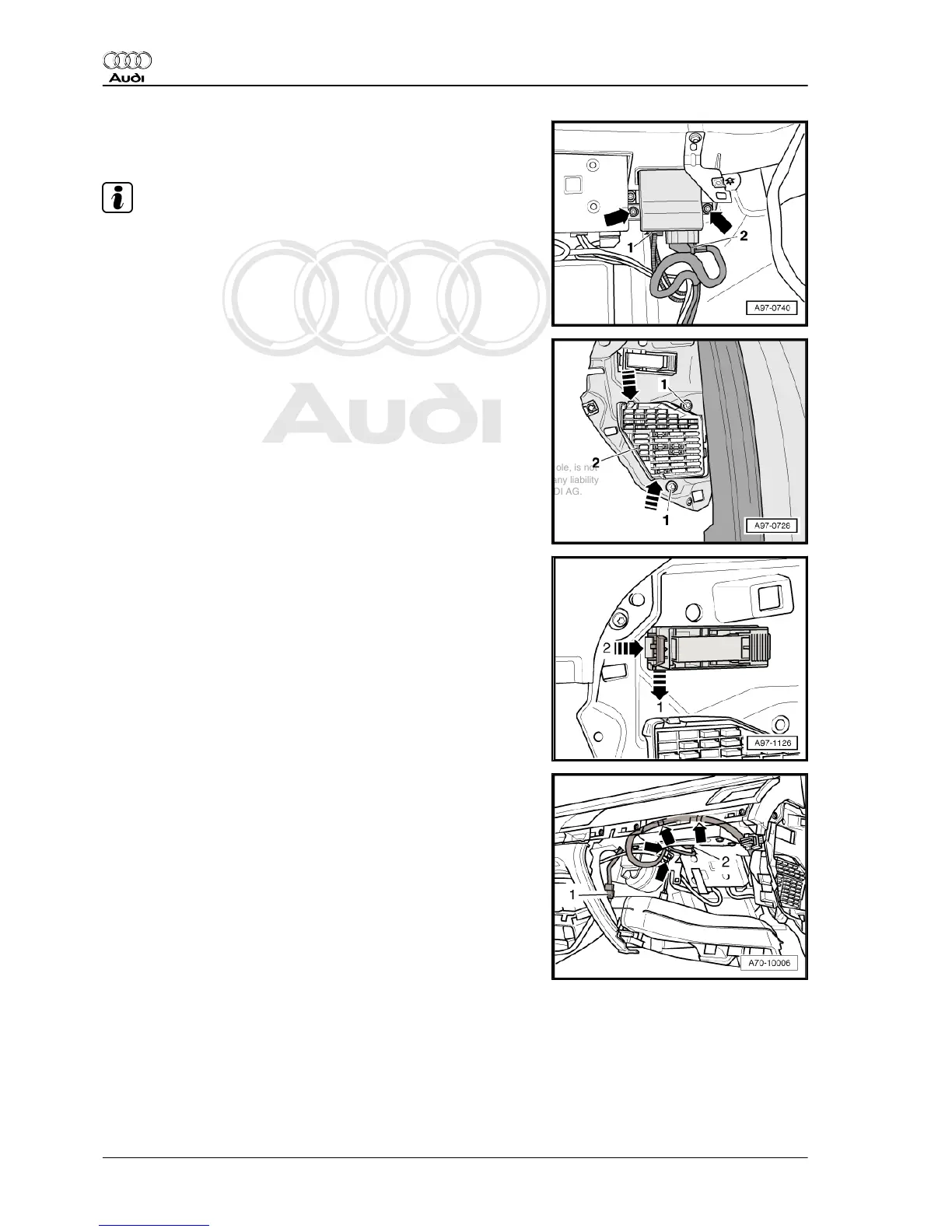

– Screw out the bolts -arrows-.
– Detach the data bus diagnostic interface -J533- .
Note
Leave the connectors -Items 1- and -2- plugged in.
– Set down the data bus diagnostic interface in the footwell.
– Screw out the bolts -1- of the right fuse box -2-.
– Release the retainer tabs -arrows- and detach the fuse box
from the central tube for the dash panel (leave the wires con‐
nected).
– Release the securing clip -arrow 1- at the right CAN connector.
– Press the retainer tab -arrow 2- and detach the CAN connector
-T46b- inwards (leave the wires connected).
– Release and unplug the connector at the front passenger's
airbag -2- and at the right centre vent control motor -V111-
-Item 1-.
– Use the removal lever -80-200- to unclip the wiring harness
from the dash panel -arrows-.
– Unclip the wiring harness at the central tube for the dash panel.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
238 Rep. gr.70 - Trim, insulation
