WARNING
Heed the safety regulations for pyrotechnic components
⇒ page 94 .

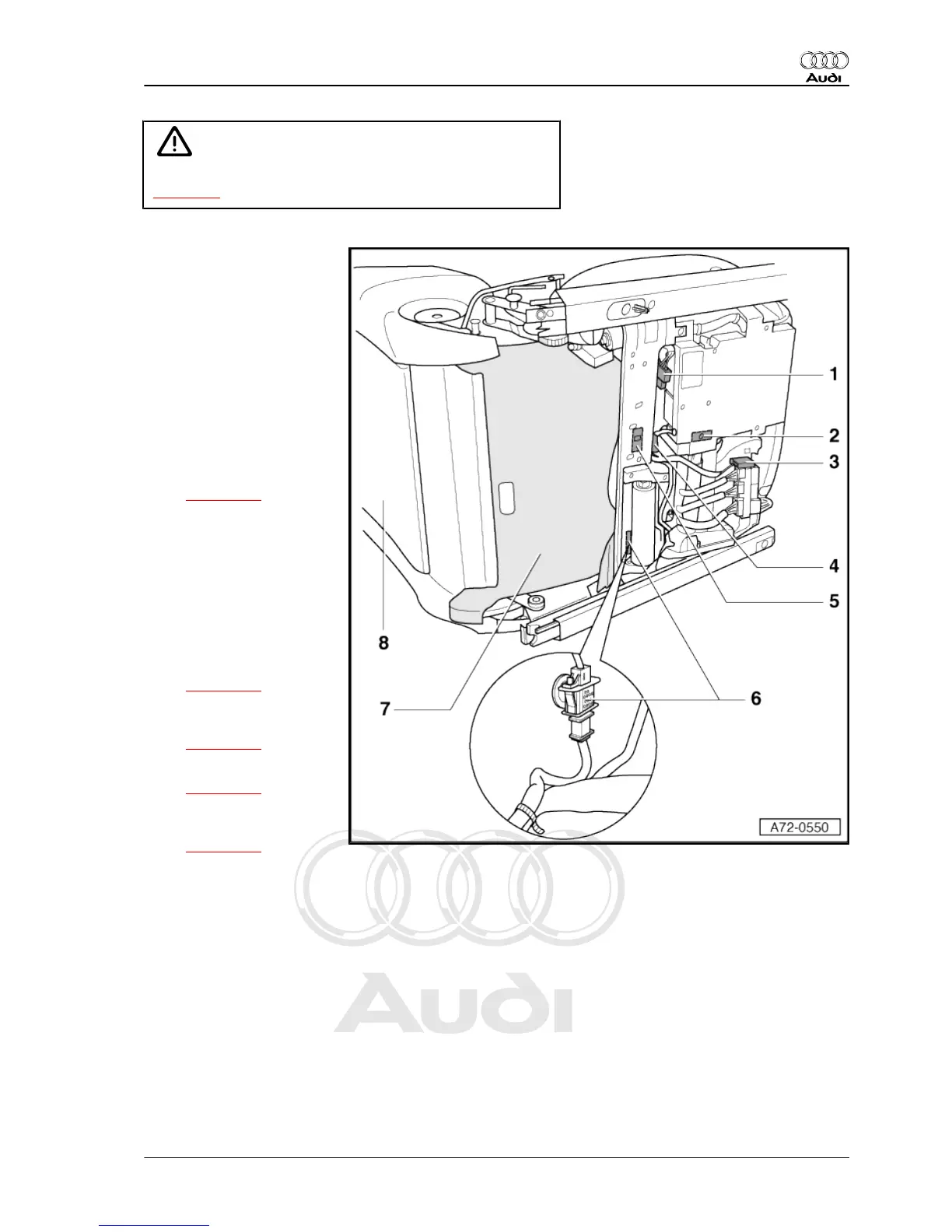

1 - Connector
2 - Connector
3 - Side airbag connector
4 - Clip
5 - Connector
6 - Connector
7 - Protective mat
8 - Front seat backrest
♦ Removing
– Remove the seat
⇒ page 282 .
– Attach the holder for
seat repair -VAS 6136-
to the engine and gear‐
box holder -VAS 6095- .
– Attach the front seat to
the holder for seat repair
-VAS 6136- .
– Remove the side trim on
the sill panel side
⇒ page 292 .
– Remove the side trim on
the tunnel side
⇒ page 293 .
– Remove the front trim
⇒ page 293 .
– Remove the holder for
the seat side trim panels
⇒ page 294 .
– Pull the protective mat -7- aside.
– Unplug the connector -6-.
– Unclip the connector -5- and unplug the connector -5-.
– Unfasten the wiring harness at the clip -4-.
– Unplug the connector -1-.
– Unclip the connector -2- and unplug the connector -2-.
– Unplug the connector -3-.
