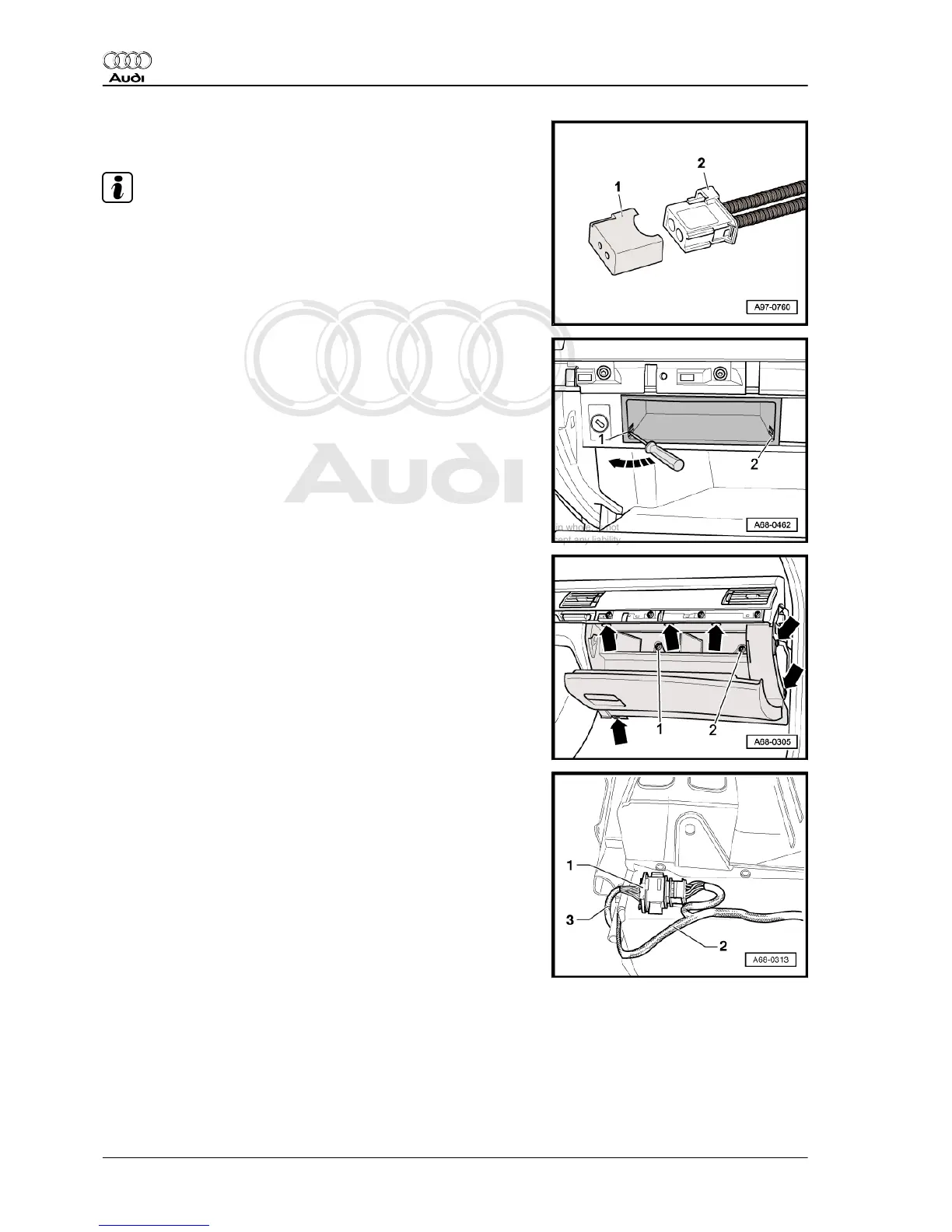

– Cover open wiring harness connector -2- of optical fibre cable
with protective cap -VAS 6223/9- -Item 1-.
Note
The protective cap is designed to prevent the end face of the op‐
tical fibre from becoming soiled or damaged, as this would impair
light transmission.
– Press catches on CD changer and pull release keys out of CD
changer.
– If fitted, remove storage compartment from glove box. To do
so, use small screwdriver to release retaining tabs -1- and
-2- in -direction of arrow-.
– Pull storage compartment out of glove box.
– Remove bolts -arrows-.
– Remove bolts -1- and -2-.
– Unplug electrical connector -1- for glove box wiring harness
-2- from supply lead -3-.
