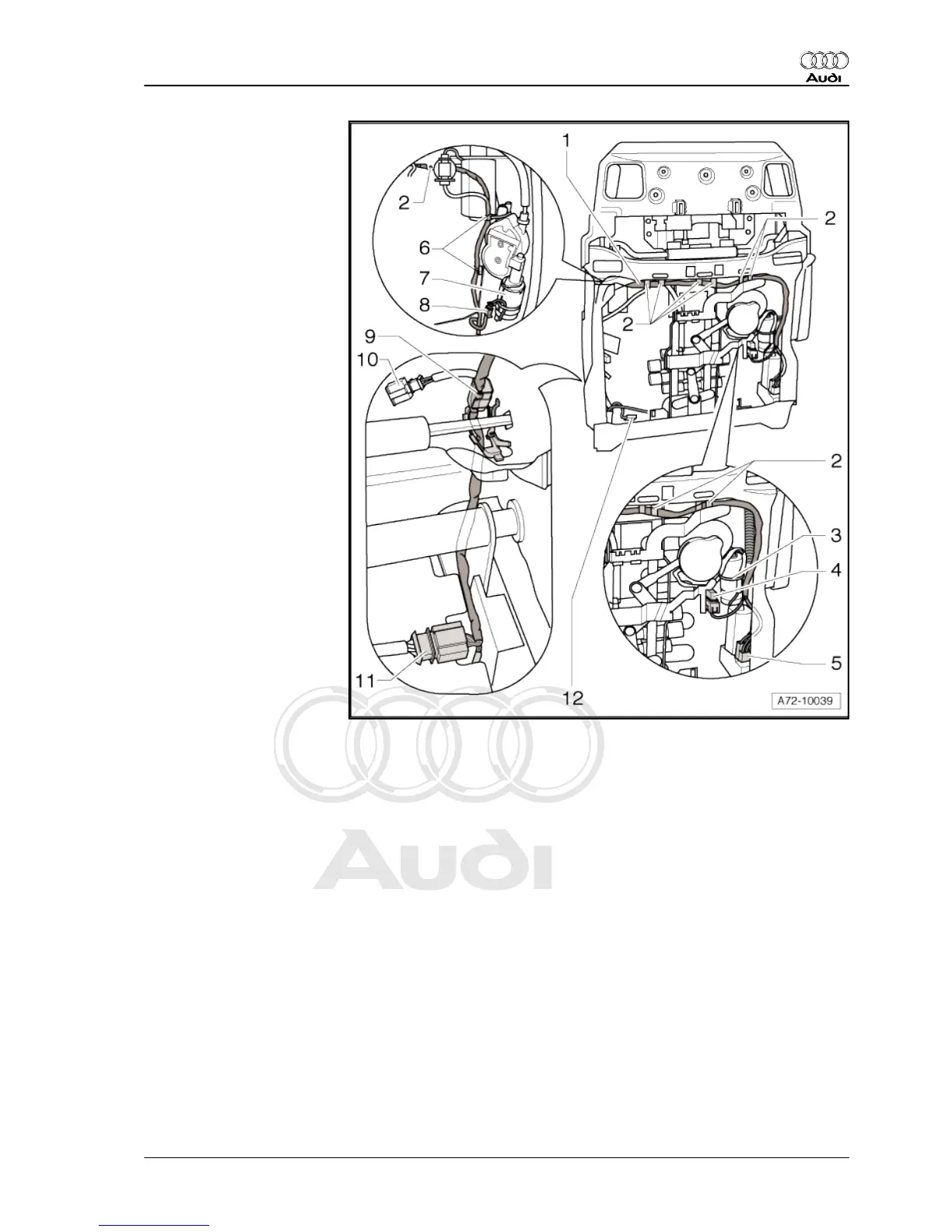

1 - Backrest wiring harness
2 - Locating clips (6x)
3 - Motor for massage function
4 - Connector for massage
function motor
5 - Backrest adjustment motor
connector
6 - Cable tie for securing wiring
(2x)
7 - Lumbar support height ad‐
justment motor connector
8 - Lumbar support height ad‐
justment motor
9 - Cable guide
♦ The cable must be routed
through the cable guide -7-
and behind the backrest
adjustment shaft.
10 - Backrest heating connec‐
tor (2–pin)
11 - Seat heating connector
(8–pin)
12 - Backrest fan connector (3–
pin)
Head restraint motor wiring
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
1. Front seats (memory seat, electrically operated seat) 329
