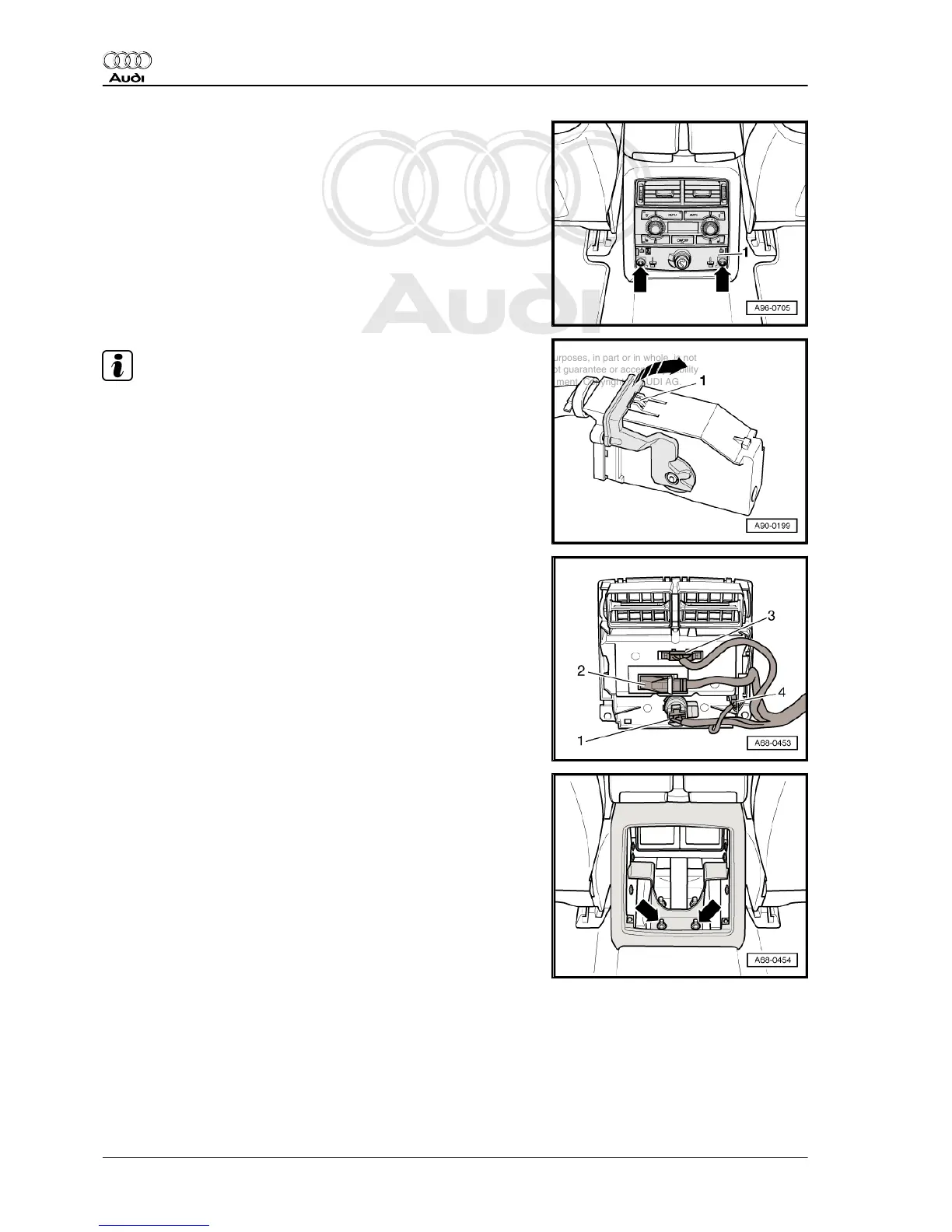

All vehicles:
– Remove bolts -arrows-.
– Detach mounting frame -1- with air vents and ashtray/rear Cli‐
matronic operating and display unit.
Note
To unplug electrical connector at rear Climatronic operating and
display unit, press catch -1-, turn retaining bracket in direction of
-arrow- and unplug connector.
– Unplug electrical connectors -1 ... 4-.
– Remove nuts -arrows- for rear centre console.
