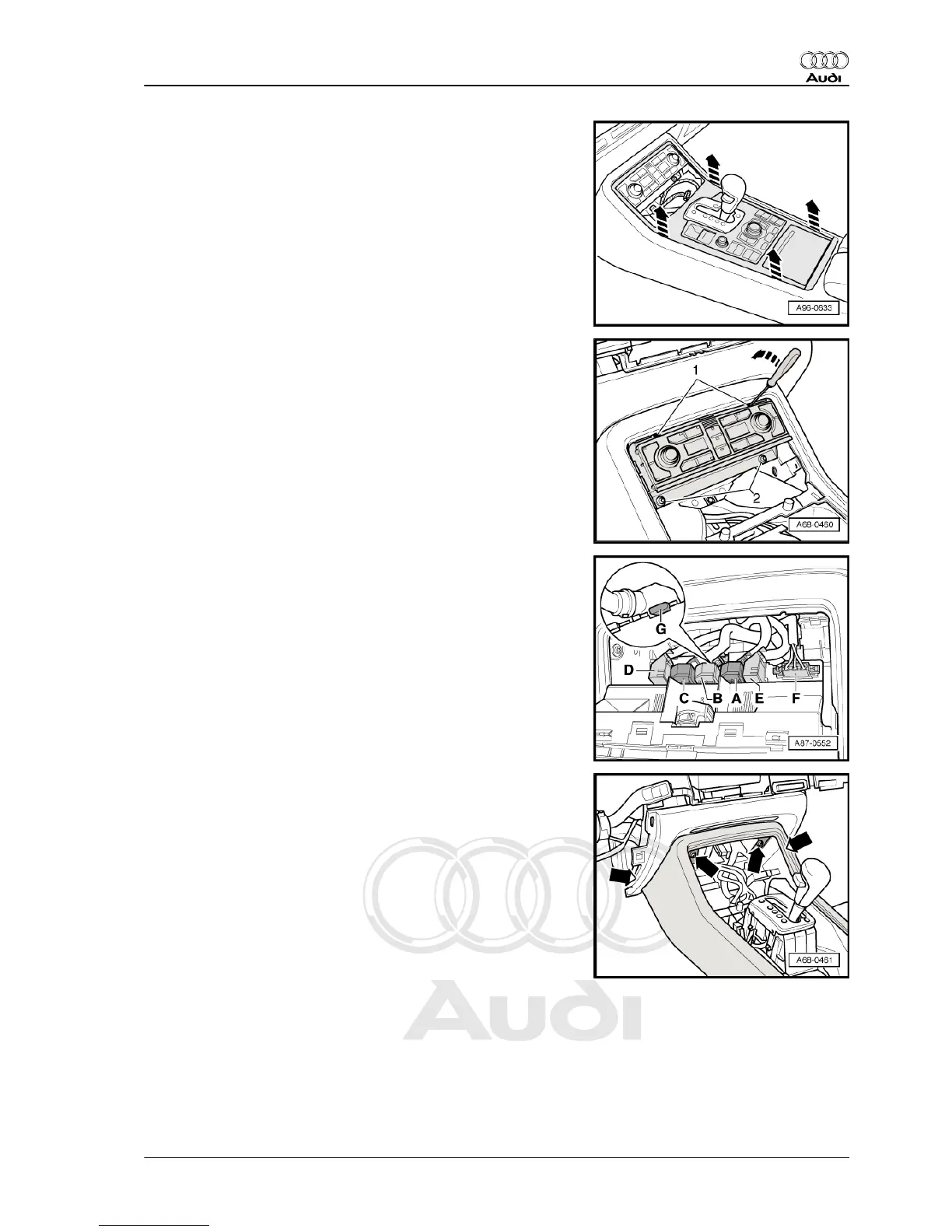

– Lift off centre console switch trim -arrows-.
– Unplug electrical connectors.
– Unscrew bolts -2-.
– Release retaining springs -1- with small screwdriver -arrow-.
– Swivel top edge of Climatronic control unit -J255- to rear.
– Take Climatronic control unit out of mounting.
– Unplug electrical connectors -A ... E- by releasing retaining tab
-G-.
– Unplug electrical connector -F-.
– Remove bolts -arrows-.
Audi A8 2003 ➤
General body repairs, interior - Edition 07.2011
3. Removing and installing centre console with extension 57
