Cisco ASR 1004 Hardware Installation Guide

The Cisco ASR 1000 Series embedded services processors have the same faceplate and status information
except for the name label, such as Cisco ASR1000-ESP40, Cisco ASR1000-ESP20, Cisco ASR1000-ESP10,
Cisco ASR1000-ESP10-N, and Cisco ASR1000-ESP5.
Note

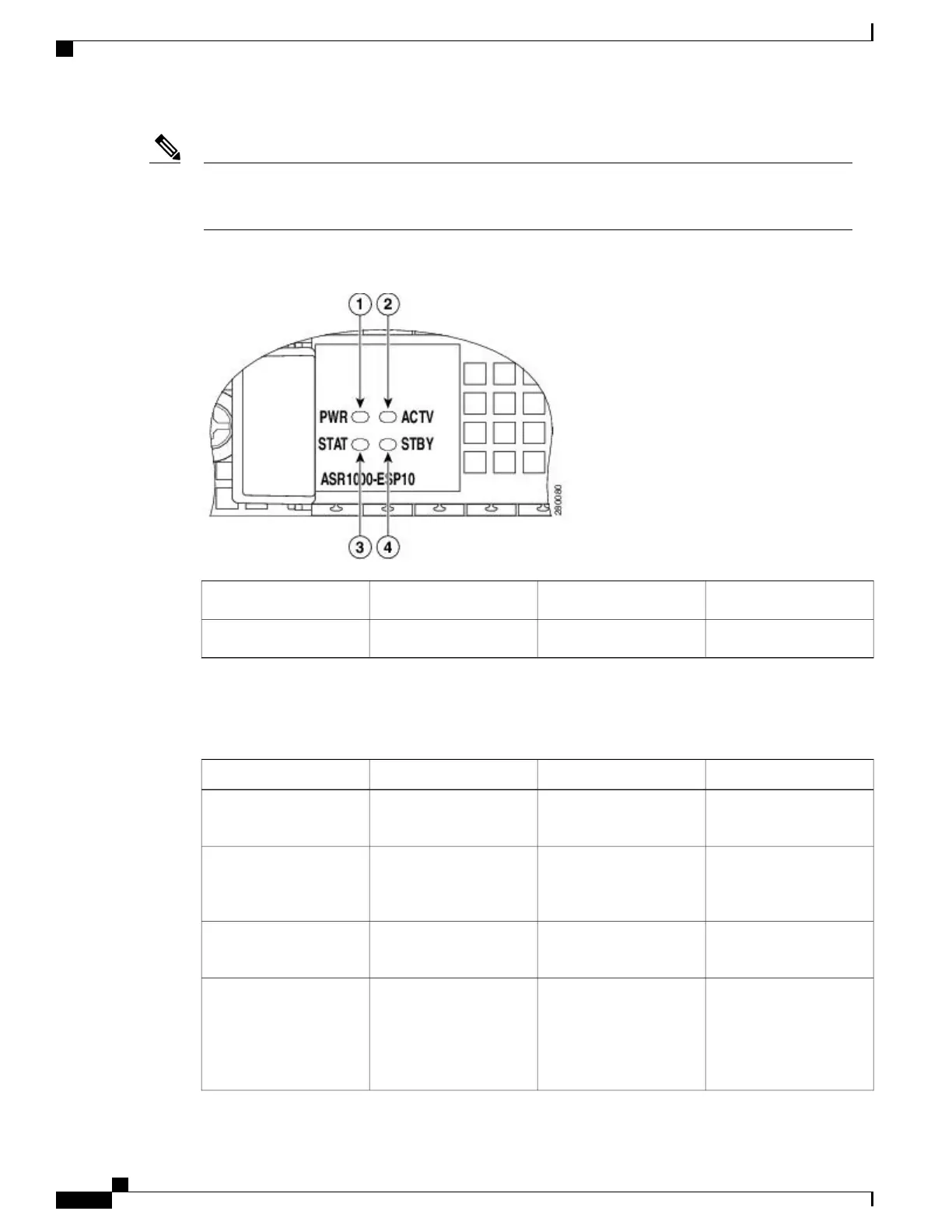

Figure 27: Cisco ASR1000-ESP Faceplate LEDs
STAT—Status LED
3
PWR—Power LED
1
STBY—Standby LED
4
ACTV—Active LED
2
The following table describes the LEDs on the embedded services processors.
Table 37: LEDs on the Embedded Services Processors
Behavior DescriptionColorLEDLED Label
All power requirements
are within specification
Solid greenPowerPWR
The embedded services
processor is not powered
on.
Off
Cisco IOS has
successfully booted.
Solid greenSystem statusSTAT
ROMmon is running or
when the Process
Manager declares that a
critical route processor
process is not running.
Amber
Cisco ASR 1000 Series Router Hardware Installation Guide
98
Cisco ASR 1000 Series Routers Embedded Services Processors
Features of the Cisco ASR 1000 Series Embedded Services Processors

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
