Cisco ASR 1004 Hardware Installation Guide

The following shows the route processor console port.

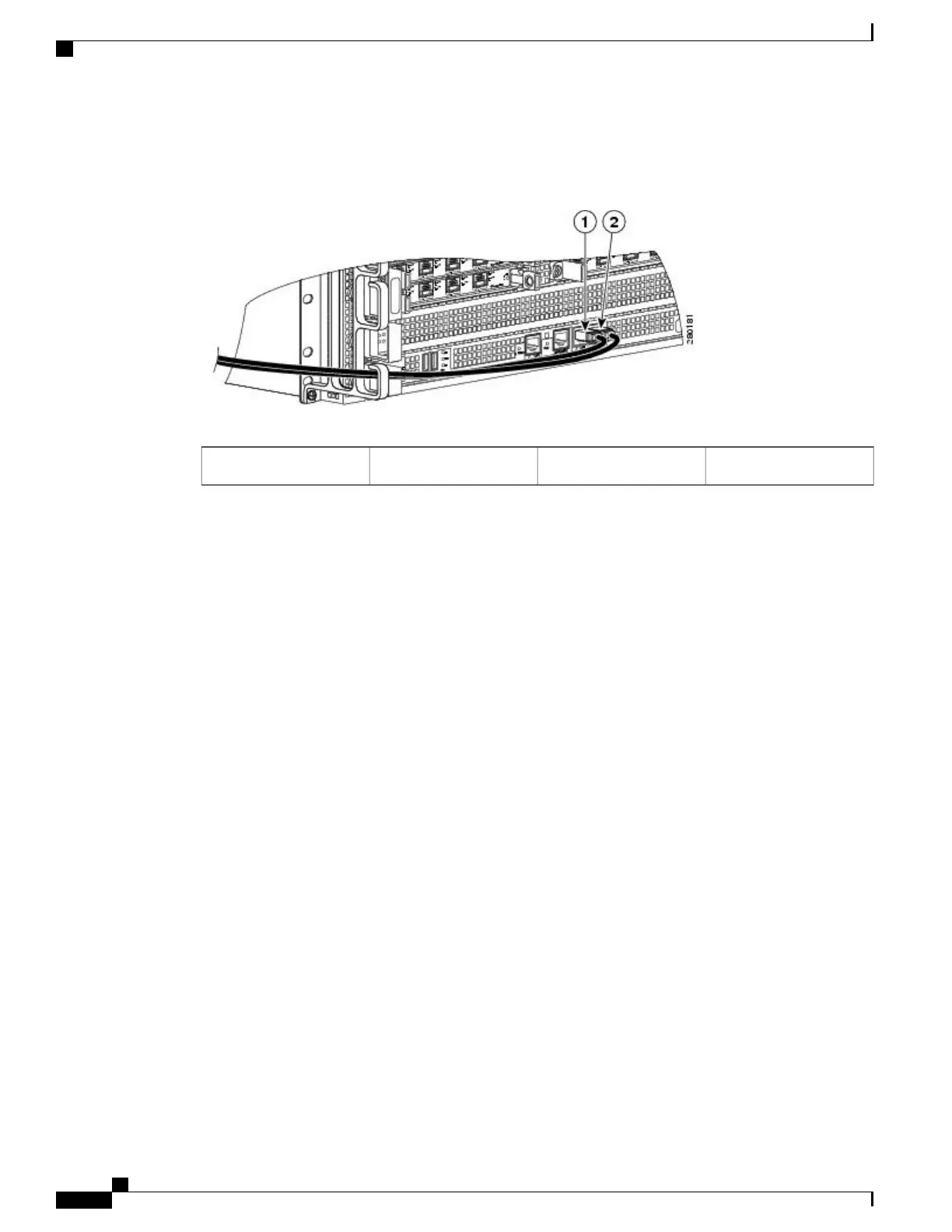

Figure 77: Cisco ASR 1004 Router ASR 1000 Series Route Processor Console Port
AUX port connection2CON port connection1
SUMMARY STEPS
1.
Connect one end of the RJ-45 cables to the serial RJ-45 port (CON) on the Cisco ASR 1000 Series Route
Processor 1 (see Figure 77: Cisco ASR 1004 Router ASR 1000 Series Route Processor Console Port, on
page 216).
2.
Run the cable up and through the cable-management bracket and connect the other end of the RJ-45 cable
to the RJ-45 adapter (see the following image).
3.
Connect the adapter to your video terminal to complete the cable connection.
4.
Power on your video terminal.
5.
Configure your video terminal to match the following default console port settings:
6.
Go to the Connecting the Network Management and Signal System Cables, on page 218 to continue the
installation.
Cisco ASR 1000 Series Router Hardware Installation Guide
216
Cisco ASR 1004 Router Overview and Installation
Connecting a Terminal to the Cisco ASR Series 1000 Route Processor Console Port

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
