Cisco ASR 1004 Hardware Installation Guide

Step 9
After the lead wire is fully inserted, hold the lead wire in place by pressing inward while you remove the screwdriver to
release the spring to tension down on the installed lead wire, then perform these steps:
a) Hold the lead wire in place while you are removing the screwdriver.
b) Once the screwdriver is completely removed, gently pull on the lead wire to make certain that the lead wire is securely
installed.
The following figure shows a lead wire fully inserted and the screwdriver removed while you gently pull on the lead
to make certain it is secured in the terminal block.

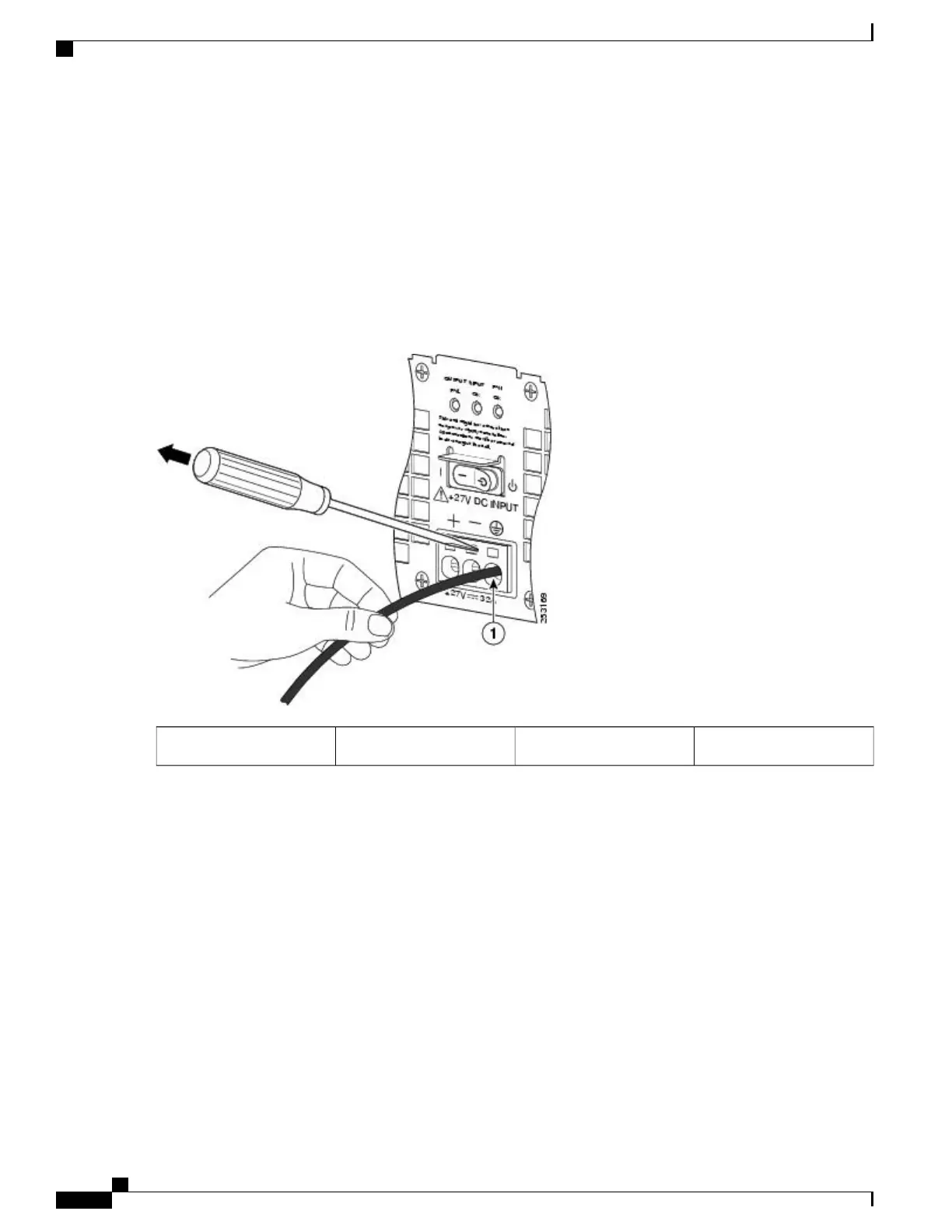

Figure 290: Removing a Screwdriver from the +24 VDC Power Supply Terminal Block
——
Gently pull on lead wire.1
Cisco ASR 1000 Series Router Hardware Installation Guide
584
Removing and Replacing FRUs from the Cisco ASR 1000 Series Routers
Removing and Replacing a +24 VDC Power Supply in Cisco ASR 1002 Router

Cisco ASR 1004 Specifications

General

Product Type	Router
Form Factor	Rack-mountable
Rack Height	2U
Forwarding Capacity	Up to 20 Gbps
Total Number of Ports	Varies by configuration
Number of Total Expansion Slots	4
Product Series	ASR 1000
Model	ASR 1004
Forwarding Performance	Up to 20 Gbps
Operating System	Cisco IOS XE
Power Supply	Dual
Route Processor	ASR 1000 Series Route Processor
Network Interface Modules	SFP, SFP+, Gigabit Ethernet, 10 Gigabit Ethernet
Interfaces/Ports	Varies by configuration
Expansion Slot Type	SPA
Throughput	20 Gbps
Redundancy	Power supply, Route Processor
Interfaces	Gigabit Ethernet, 10 Gigabit Ethernet, SFP, SFP+
Storage	Up to 64 GB Flash
