The X Axis Drive Assembly
DSX™ System Service Manual 7-55
2 Route the belt around the pulleys, then fit the Adjustable X Belt Block (Part No.
204002700) to the left end of the datum block (Figure 7-64). Make sure that the
belt is properly located and flush with the end of the block and affix using 4 M3 x
12 skt cap screws, 4 M3 Washers and Loctite 222.

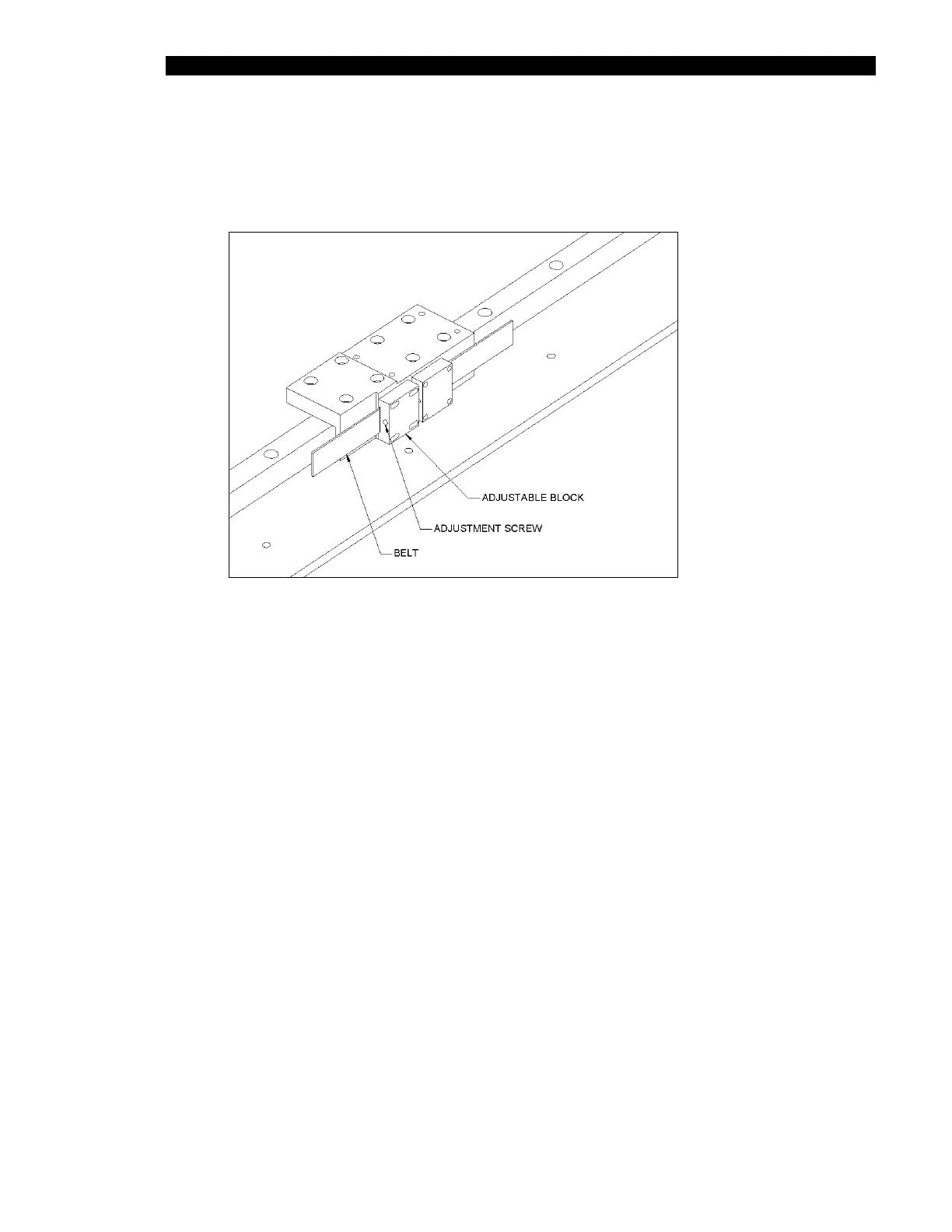

Figure 7-64 Mounting the Adjustable Block
3 Fit the adjustment screw (Part No. 303000335) through the adjustable block and
into the fixed block (Figure 7-64).
4 Tighten the X Belt according to the following procedure.
