Servicing Internal Components
15-6 DSX™ System Service Manual
4 Using the force gauge in compression mode, engage the tab on the tensioning
bracket and create between 3000 and 3750 grams (6.14 to 8.27 lbs) of tension in
the belt (Figure 15-5).
5 Tighten the belt tensioner lock nuts when the required tension is achieved.
Tab
Lock Nuts
Tensioning

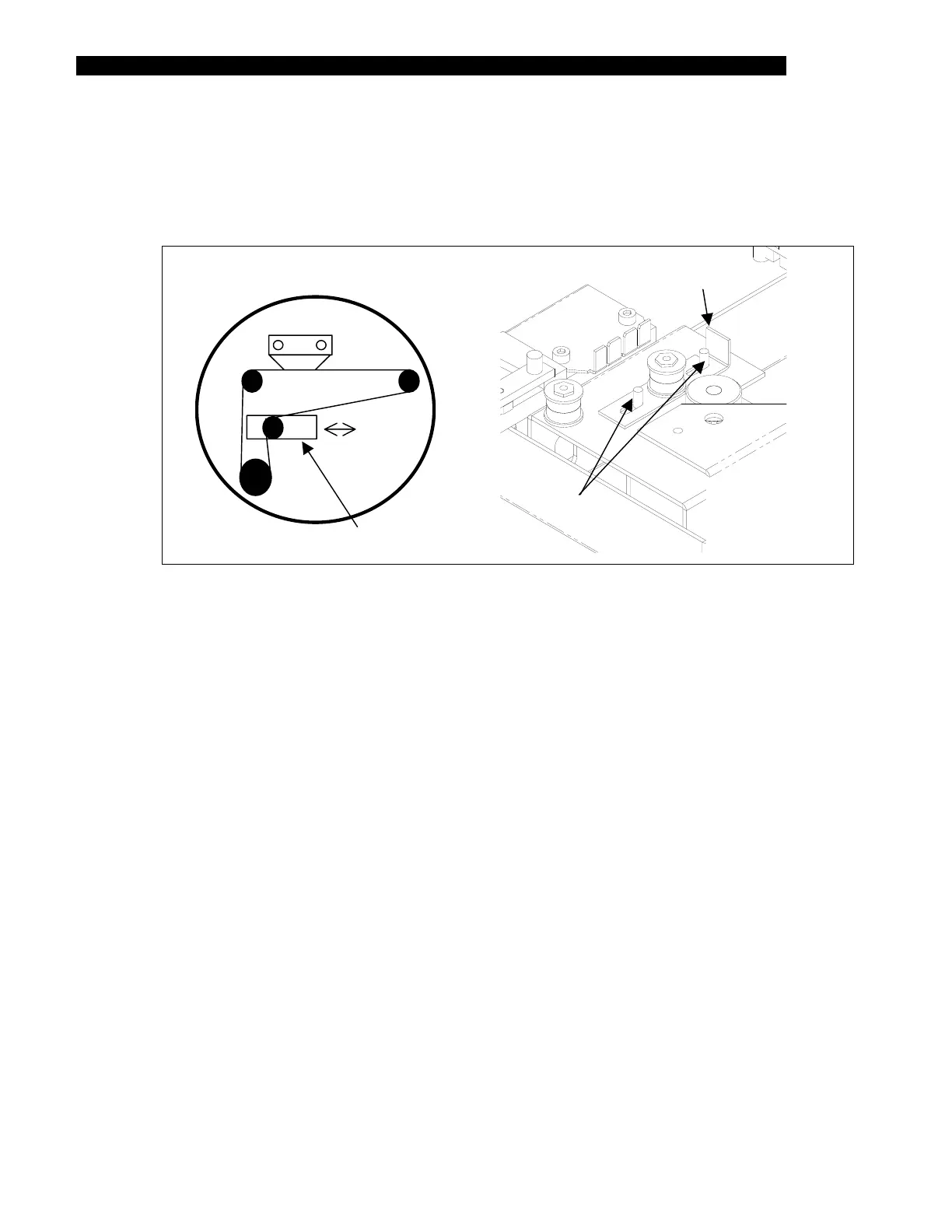

Figure 15-5 Tightening the Belt
6 Move the drawer in and out a few times to make certain that it runs freely and that
the belt is aligned with the pulleys.
7 Replace the ambient drawer cover (Figure 15-1).
