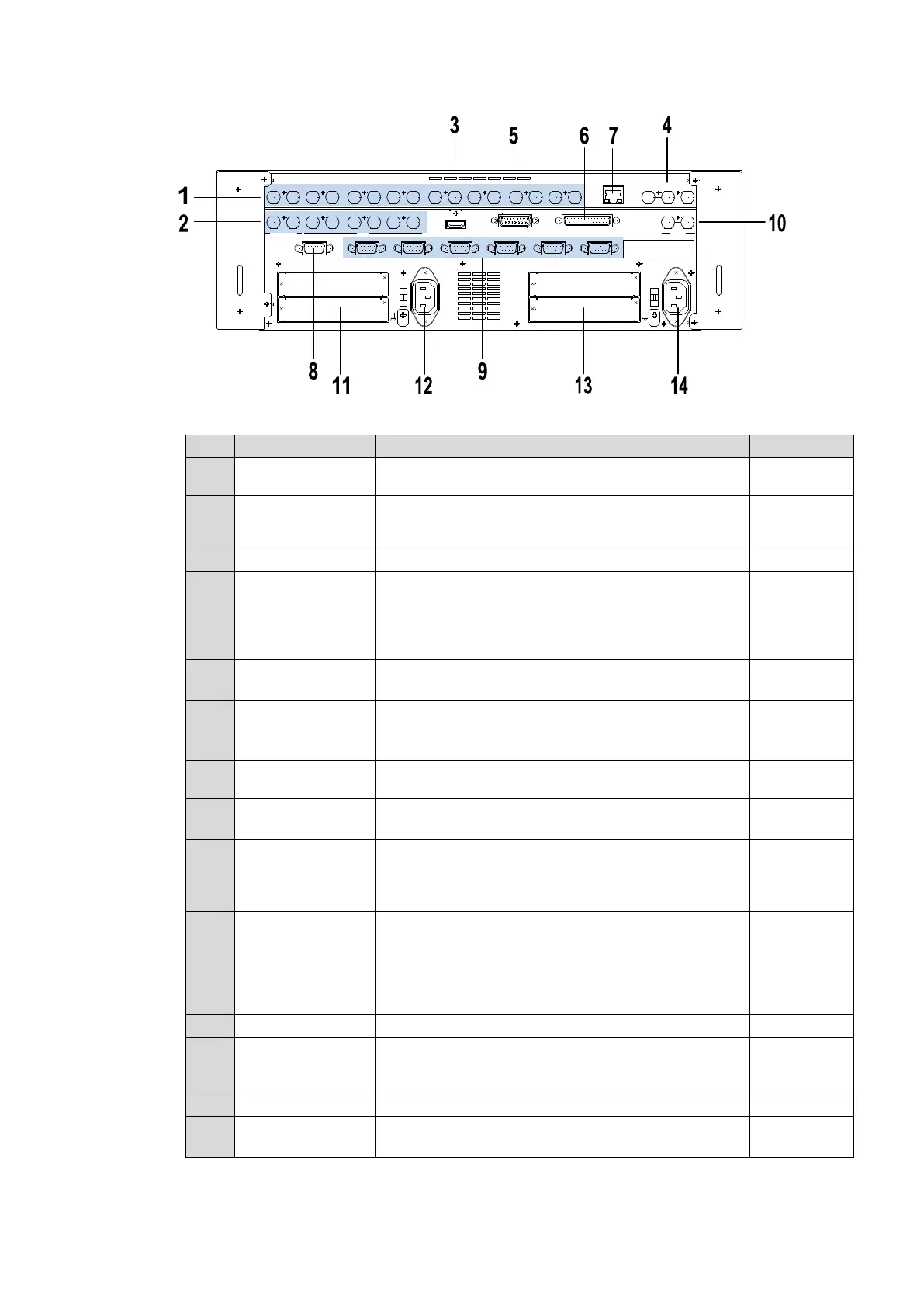

Rear Panel
No. Name Description Refer to sec.
1 SDI INPUT
Used to input HD/SD SDI video signal. 16 inputs
(BNC)
5
2 SDI OUTPUT
Used to output HD/SD SDI video signal. 8 outputs
(M/E1 PGM, M/E2 PGM and 6 auxiliary outputs)
(BNC)
6
3 HDMI Used to output an HDMI output. 6-5
4
REF IN
REF OUT
Used to input and output a genlock signal; tri-level
sync or black burst. (BNC)
The center terminal is used for loopthrough
connection. It must be 75-ohm terminated if not
looped-through.
3
5 GPI IN Used for GPI input. (15-pin D-sub, female)
2-4-3
24-1-1
6 GPI /TALLY OUT
Used for GPI output and Tally output.
(25-pin D-sub, female)
2-4-3
24-1-2
24-2-2
7 LAN
Used for 100BASE-TX/1000BASE-T Ethernet
connection. (RJ-45)
30-2
8 EDITOR Used for editor connection. (9-pin D-sub, female)
2-4-1
29
9 RS-422
6 ports (9-pin D-sub, female)
Used to connect external devices such as Hanabi
tally units, HVS-30RU, VTR/VDCP devices, routers
and audio mixers.
2-4-2
10 TO OU
Used for control panel (HVS-391OU, 392OU and
392ROU) connection via Arcnet. It can also be used
to connect the Hanabi AUX control boxes. (BNC)
One of two terminals is used for loop-through
connection. It must be 75-ohm terminated if not
looped-through.
3-3
30-1
33-2
11 Option Slots Used to install optional input expansion cards. 2-3
12 AC IN2
Power 2 connection with ground terminal for
redundant power configuration. (option)
(AC100V-240V 50/60 Hz)
13 Option Slots Used to install optional output expansion cards. 2-3
14 AC IN1
Power 1 connection with ground terminal
(AC100V-240V 50/60 Hz)
