71

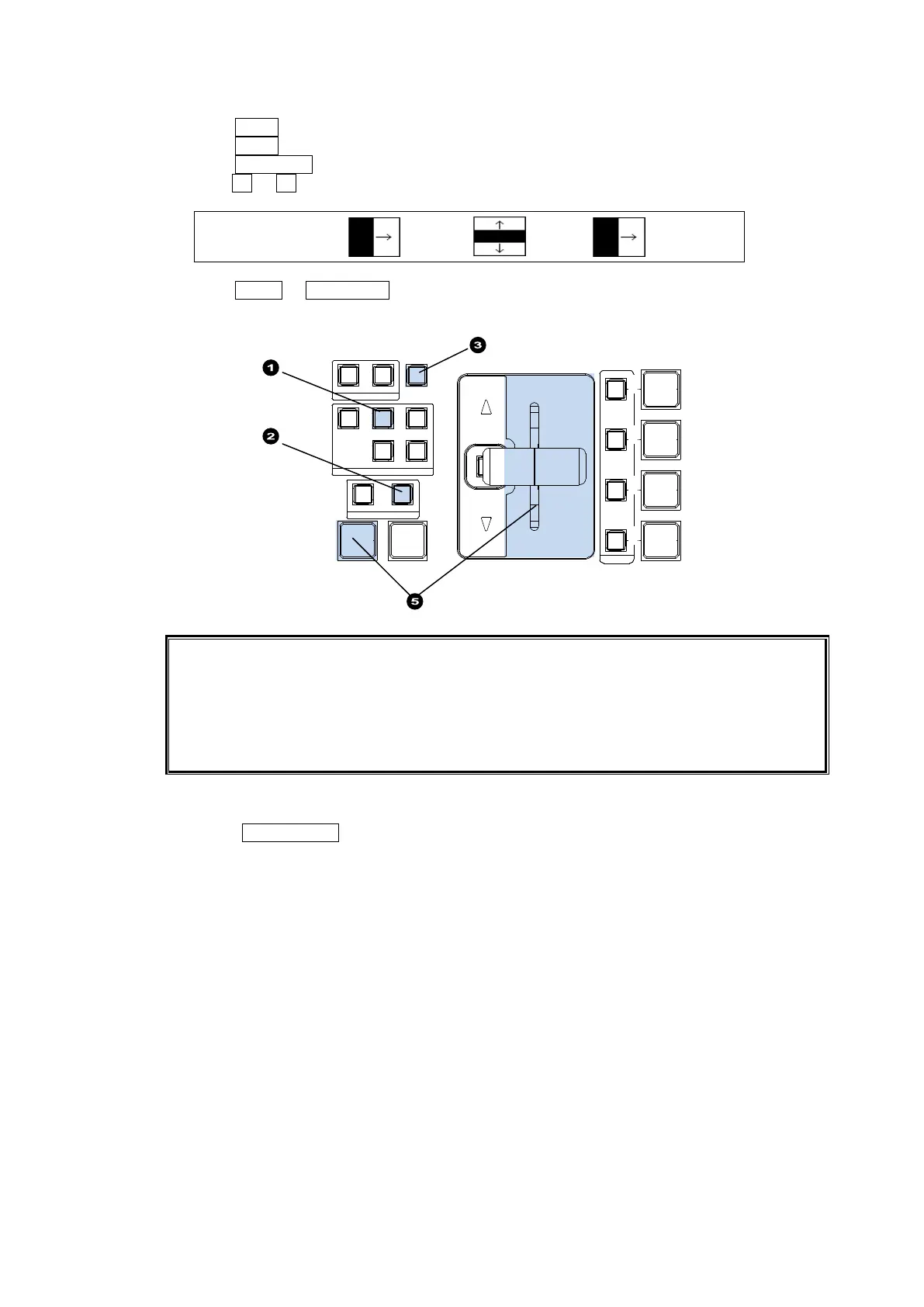

Pattern transition
(1) Press KEY1 in the NEXT TRANSITION block.
(2) Press WIPE in the TRANSITION TYPE block.
(3) Press PATTERN to display the [WIPE PATTERN] menu.
(4) Turn F2 or F3 to select a desired pattern. (See section 8-8 "How to Select Patterns.")
WIPE :BKGD :KEY1 :KEY2 : 1/1
PAT M1 :00 :20 :00 :
(5) Press AUTO or KEY AUTO, or move the fader lever to perform the pattern transition.
Note that pattern transitions are available only for KEY1 and KEY2.
KEY3 or KEY4 images can be displayed directly on an AUX bus instead of the M/E bus.
(See section 10-9. "Where KEY3 and KEY4 Appear")
See section 8-7. "Pattern (WIPE/DVE) Transitions" for the WIPE transition details.
See section 8-10-2. "Transition Rate" for the transition rate.
See section 8-10-1. "Fader Limit" for the fader limit.
USER Transitions
Press the KEY ON AIR button to insert the KEY on the M/E program video by using a USER
transition (scaler, slide in/out, etc.). (See section 8-9. " Key IN/OUT Effects" for details.)
REV NOR/REV
PATTERN
BKGD
DIRECTION
KEY1 KEY2
KEY3 KEY4
NEXT TRANSITION
FASER LIMIT
MIX
WIPE
TRANSITION TYPE
AUTO CUT
ON AIR
DVE
DVE
KEY 4
KEY 3
KEY 2
DVE
KEY 1
DVE
