GRASS VALLEY MASTERPIECE User Manual

83
Masterpiece
User Manual

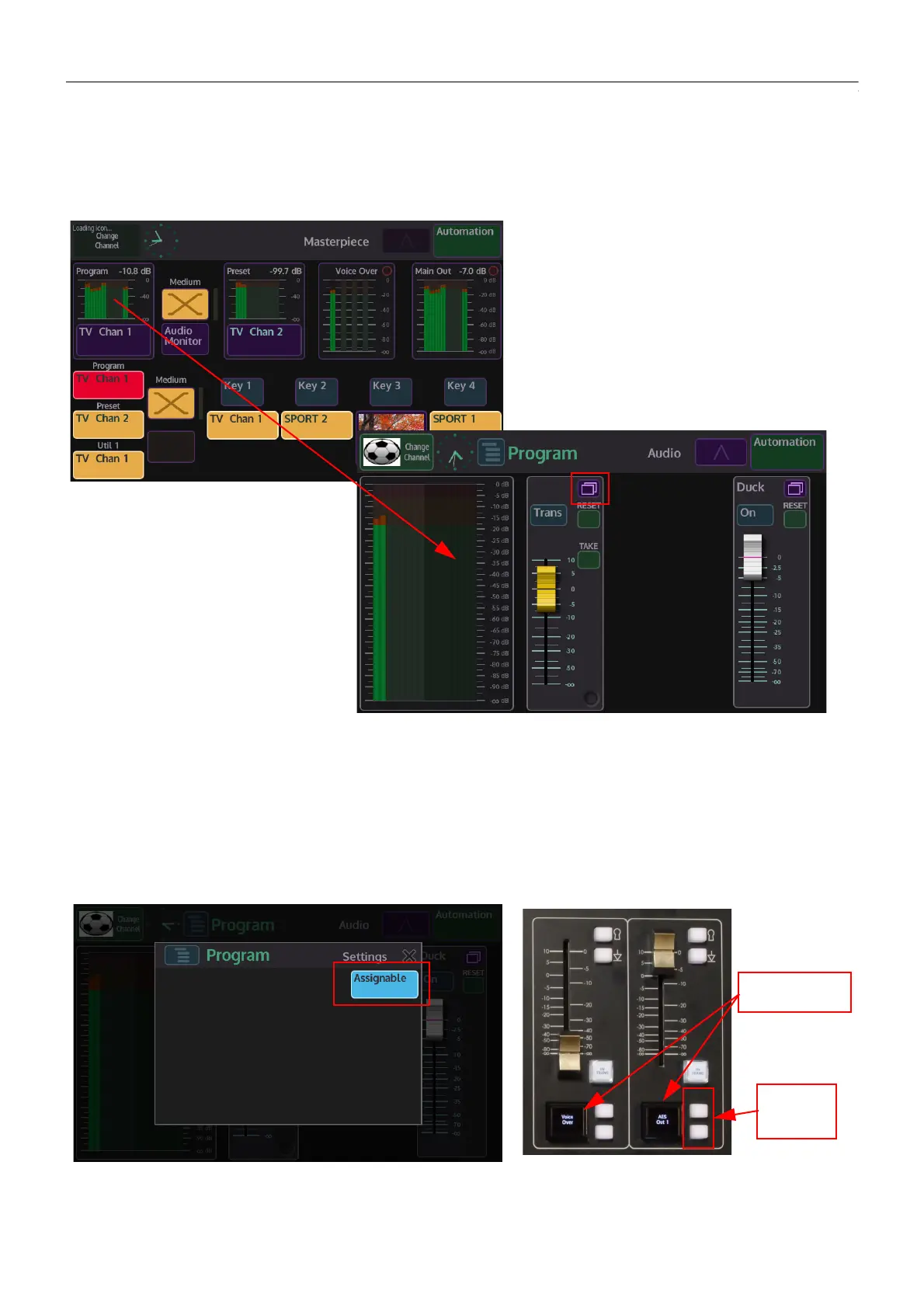

Understanding the Masterpiece GUI Audio Menus
As mentioned earlier, the Masterpiece GUI home menu displays the Program, Preset, Voice
Over and Main Out audio metering. If for example you touch the “Program” audio meter, the
“Program” audio menu will be displayed.
This menu displays a more detailed menu with “soft” audio faders that can be assigned to the
physical faders on the Masterpiece control surface. You can see which soft fader controls are
currently assigned to the control surface by using the toggle buttons to scroll through the
assigned function list.
To assign a slider to the function list, touch the menu expander, then when the settings dialog
box appears, touch the {Assign} button. The button will light up “light blue” (as shown below).
The function will be displayed when scrolling through the function list. To enable the function
touch the OLED button
.
Toggle
Buttons
OLED buttons
