Using Masterpiece GUI Audio Menus
Using Masterpiece GUI Audio Menus
Program, Preset and Main Out
The Program Preset and Main Out audio menus are the most critical to the to the output of
Masterpiece as these control the audio that is going live to air and the audio that will be going
live to air next. With a Button Maps created and the Crosspoints set up on the Masterpiece
control surface, the audio menus on the Masterpiece GUI can now be used.

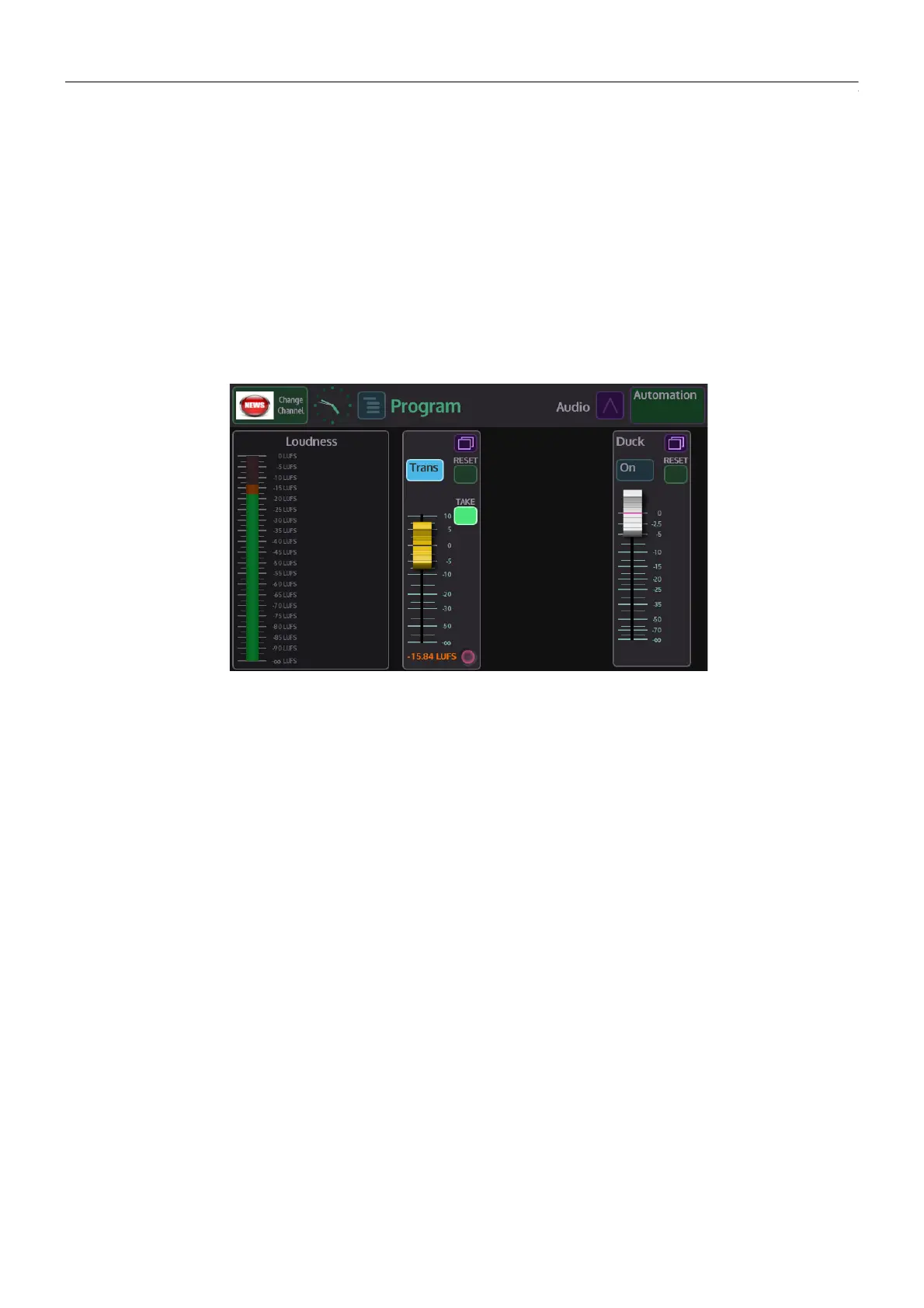

Program Audio
The Program Audio menu displays the level of audio for the currently selected source going
live to air. The audio level indicators in the menu display the level of audio from the source, it is
a visual display to confirm that there is audio present.
The soft fader control has no control over this level, the fader control adjusts the audio to the
Main Out. The fader provides some gain +10dB and attenuation (0dB to -Inf).
Buttons:
Trans - selection will push the Program Audio into the main audio transition
Reset - resets the fader to 0dB (can be overridden by Morpheus automation)
Take - selection will push the Program Audio to transition when the [Take Next] button is
pressed.
