Masterpiece
User Manual
AVSP Control
Advanced Video Server Protocol, It allows the running, recording and editing of clips from up
to 6 channels with either EVS XT or EVS XT2.
The protocol is connected via a Serial Port, one serial port will support the use of 6 channels of
EVS, either in Playback or Record modes.

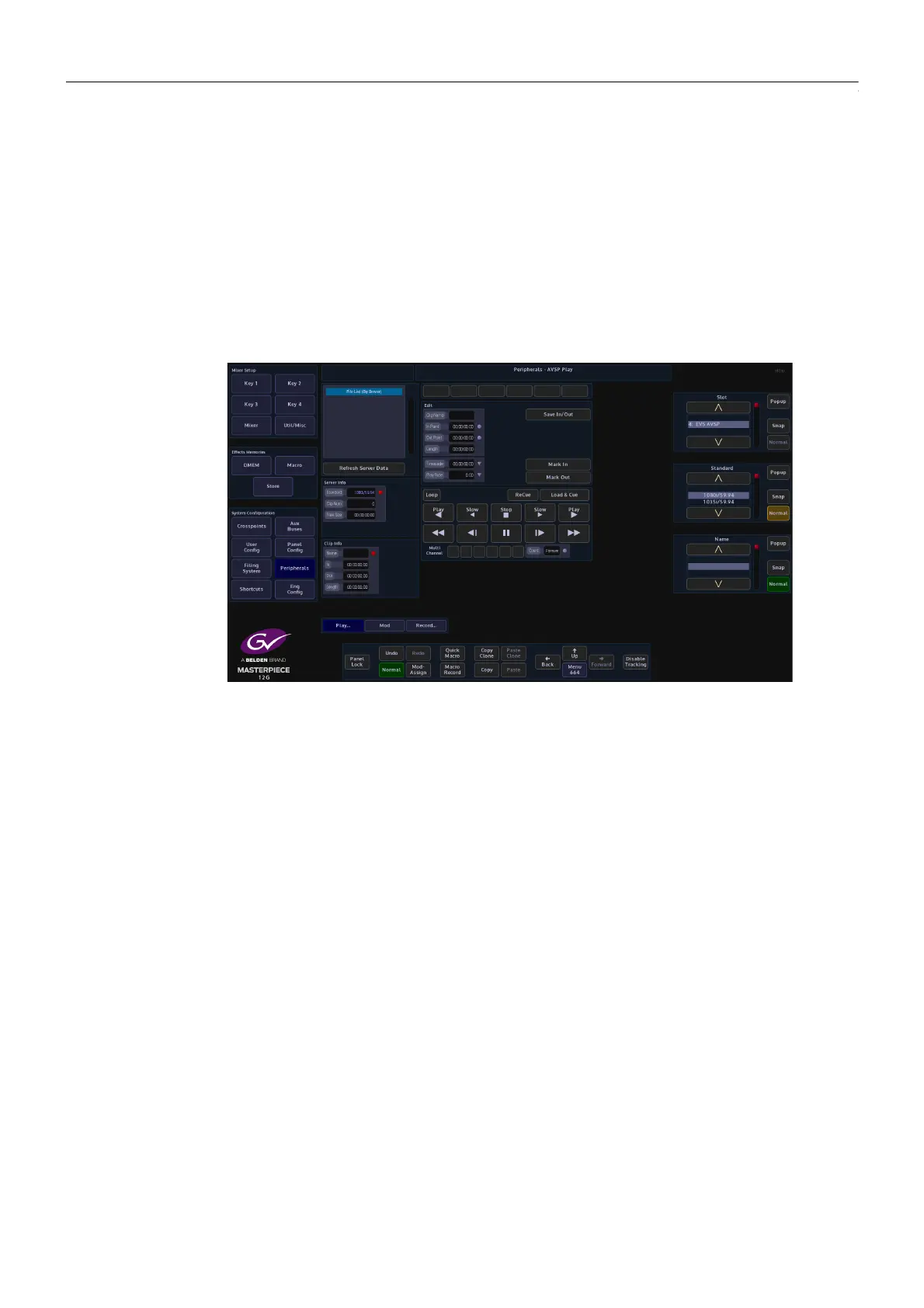

Play
The box in the top middle will display the number of configured EVS channels and their
relevant details, these channels are displayed as “Rec” or “Play”.
Center Top Buttons - (Channel Selector Area) - which channel of EVS is being controlled.
Slot - this displays the serial port that is connected to the server.
Standard - this has to be set to the video standard being used by the server.
Name - the Clip Name
