GRASS VALLEY MASTERPIECE User Manual

36
Masterpiece Menu Operation
The Graphical User Interface

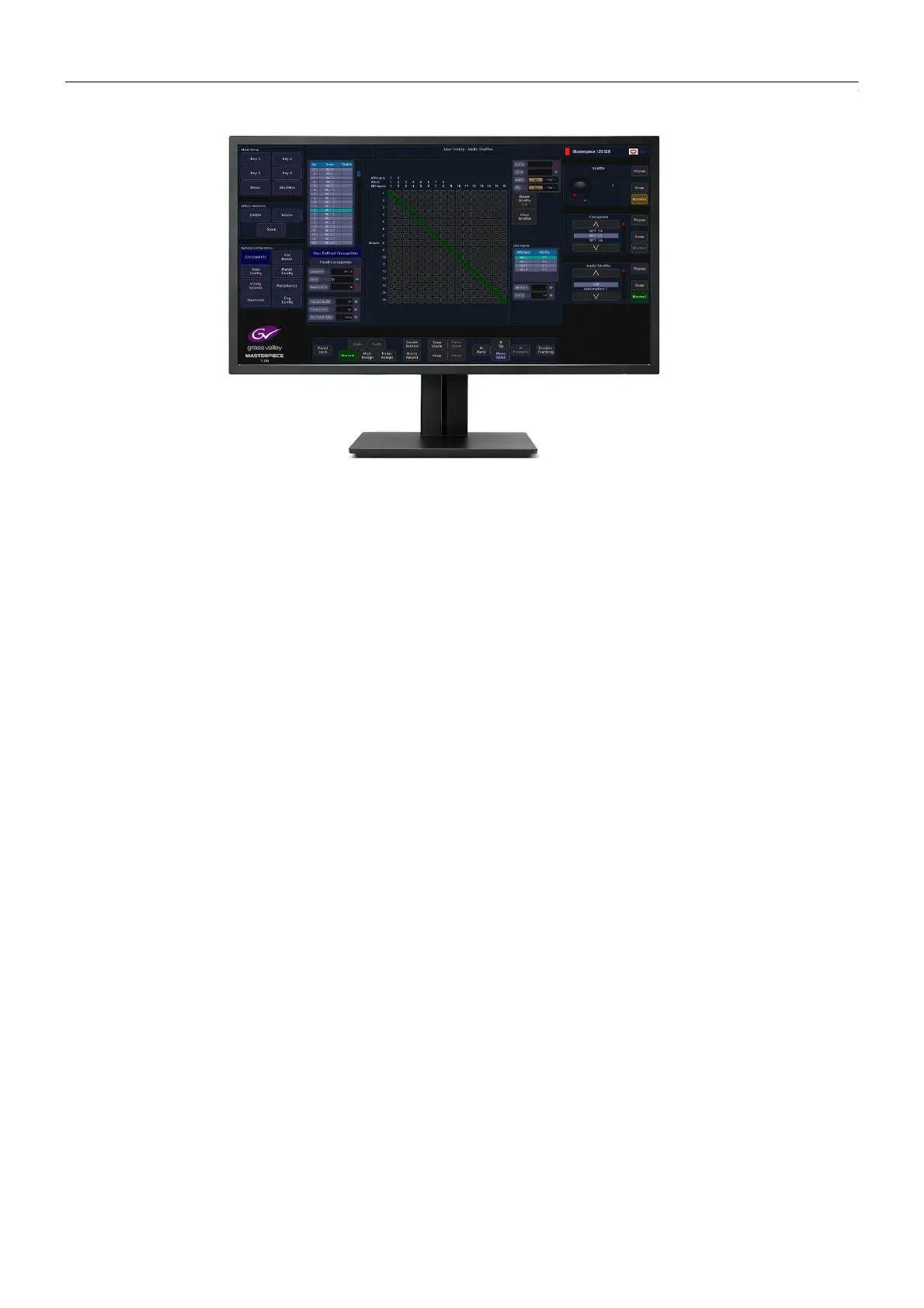

Touch Screen Monitor Menu Overview
Configuration and setup of a Masterpiece system is driven using the intuitive menu system on
the touch screen or mouse pointer driven Graphical User Interface (GUI). The type of GUI
monitor used is a customer selected option, but the menu structures will be identical.
The menu structures are clear and allow the user to quickly move from menu to menu when
setting up or using a Masterpiece production switcher.

GRASS VALLEY MASTERPIECE Specifications

General

Type	Video Production Switcher
MultiViewer Support	Yes
Redundancy	Yes, with redundant power supplies and control systems
Protocol Support	SDI, IP
Frame Synchronization	Yes, built-in frame synchronizers
Audio Embedding/De-embedding	Yes
Format Support	SD, HD, UHD
