GRASS VALLEY MASTERPIECE User Manual

180
IP Connectivity and Operation
IP Input Menus
IP Output Menus

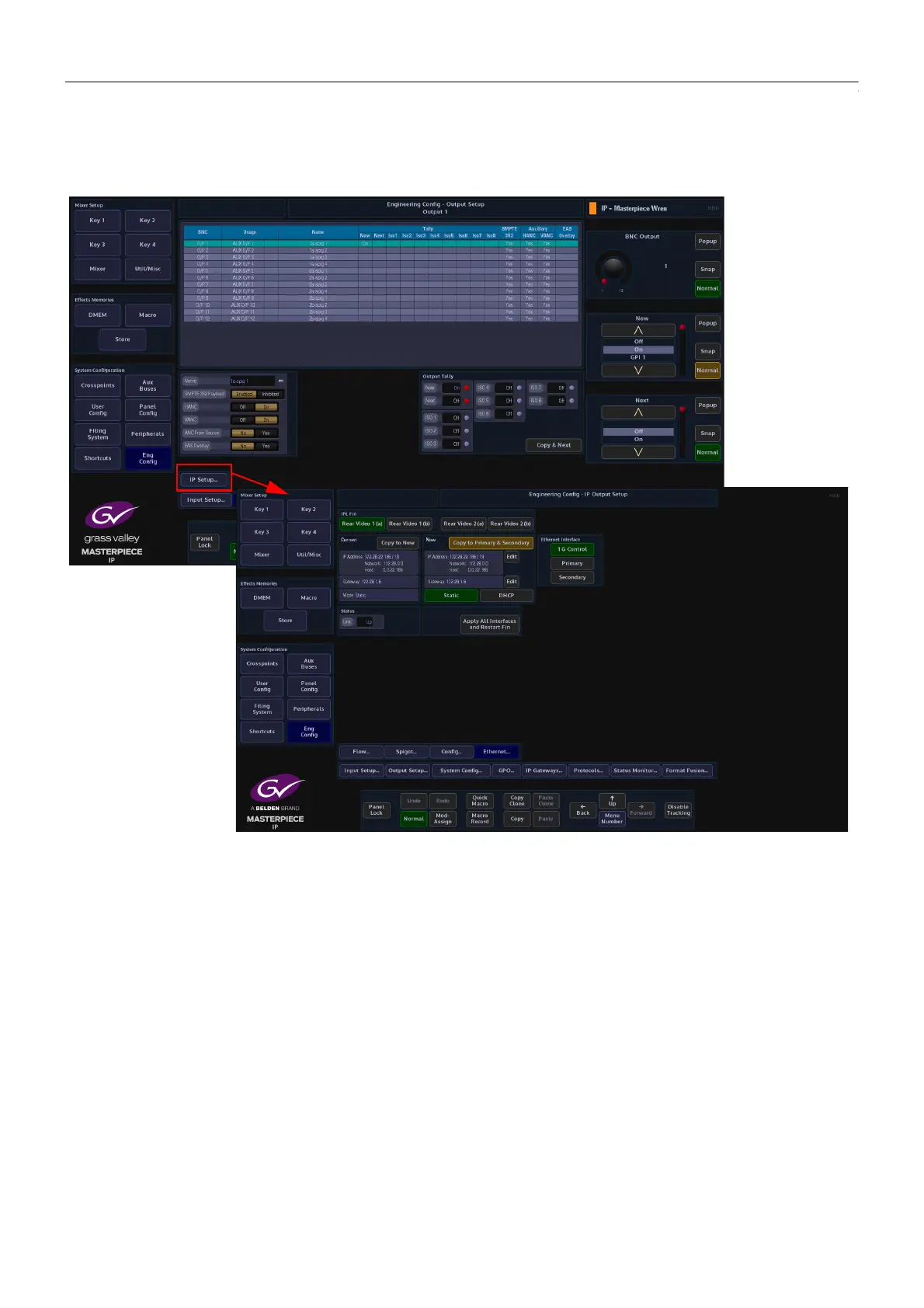

To get to the IP Setup menus, go to the “Eng Config - Output Setup” menu and then touch the
{IP Setup...} menu link button.
Ethernet Menu (above)
At the top of the menu are the IPL Fin selection buttons. These buttons correspond to the IP
QSFP cages at the rear of the mainframe.
The Ethernet menu is used to setup the IP addresses for the following:
• 1G Control - this is the IP address for the RJ45 network port on the IP Fin
• Primary - this is the QSFP cage number A1/B1
• Secondary - this is QSFP cage number A2/B2
The IP addresses have to be setup for each Ethernet Interface set (1G Control, Primary and
Secondary) for each IP Video Rear. Once the IP address has been set for the (as shown above)
1G Control, touch the {Copy to Primary & Secondary} will copy the IP information to the
Primary and Secondary sets. After using copy, it is necessary to modify the Primary and
Secondary IP addresses to make sure that they are different. Typically, these are incremented
by 1.
If an existing IP address exists, the user can touch the {Copy to New} button and the IP address
info will be copied across to the “New” IP address box.
