5
Masterpiece
User Manual
Connecting the Touch Screen Monitor GUI
An external monitor has to be connected to the Masterpiece Control Surface to be used as an
external touch screen GUI. The external monitor must have a 1920 x 1080 display resolution
and can be either a touch screen or a non touch screen display.
For touch screen monitors, connect the USB lead from the monitor to a USB port on the
Control Surface and the HDMI to DVI (for example) lead to the monitor port.
For non touch screen displays, the user can connect a USB mouse to a USB port on the Control
Surface and the HDMI to DVI (for example) lead to the monitor port.
Touch screen monitor - once the external monitor is connected to the Masterpiece Control
Surface, a USB control lead (shown above) is connected, allowing the touch screen functions to
be used.
Non- touch screen monitor - once the external monitor is connected to the Masterpiece
Control Surface, a USB mouse (shown above) is used to control the Masterpiece menus on the
monitor screen.

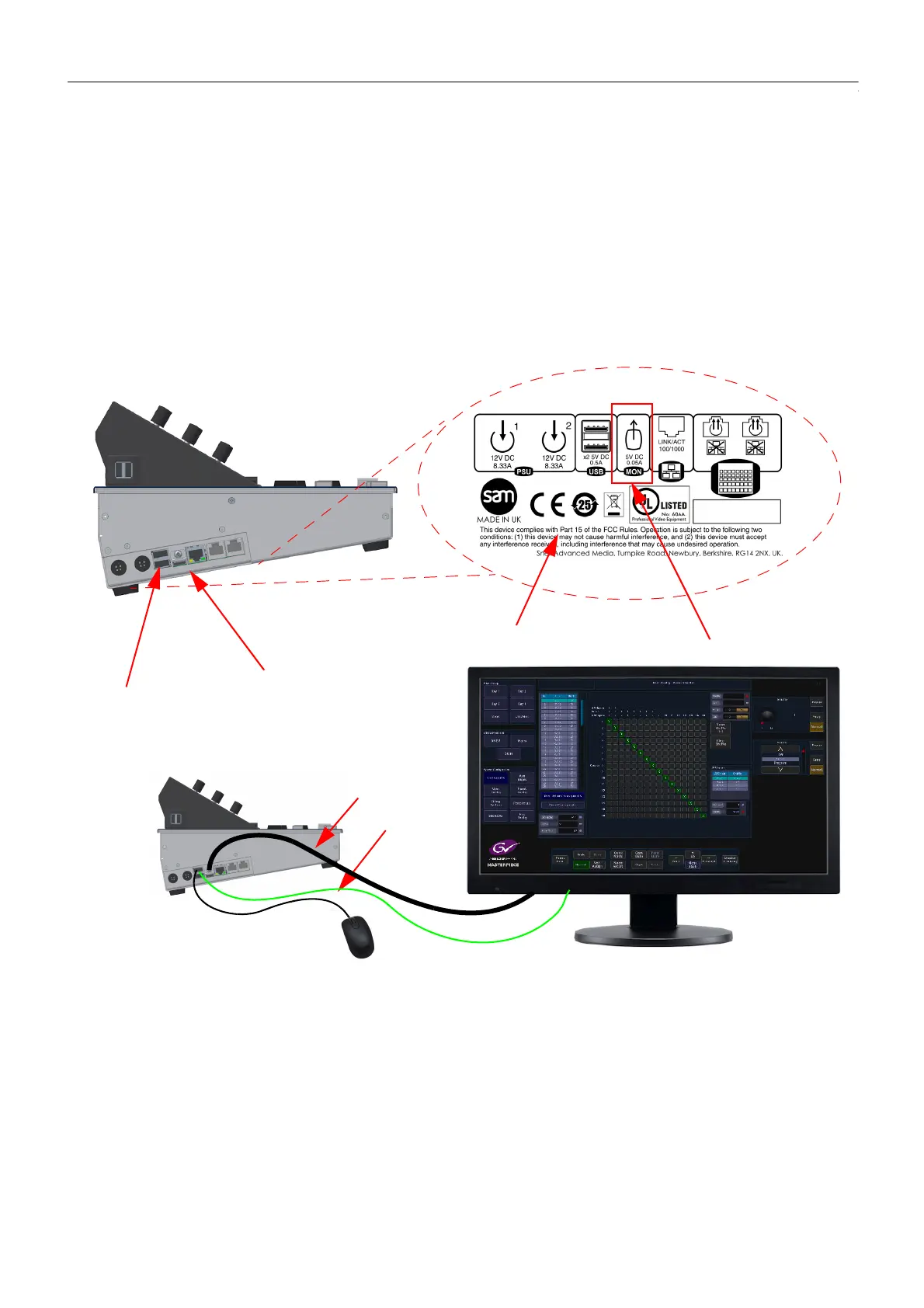

Label from the
under side of the Control Surface
MON (monitor) output port
MON (monitor) output port
USB port
When using a touch screen
Monitor Lead
USB Lead
(Mouse only required when
not using a touch screen)
