GRASS VALLEY MASTERPIECE User Manual

318
Peripherals
Peripherals - Engineering

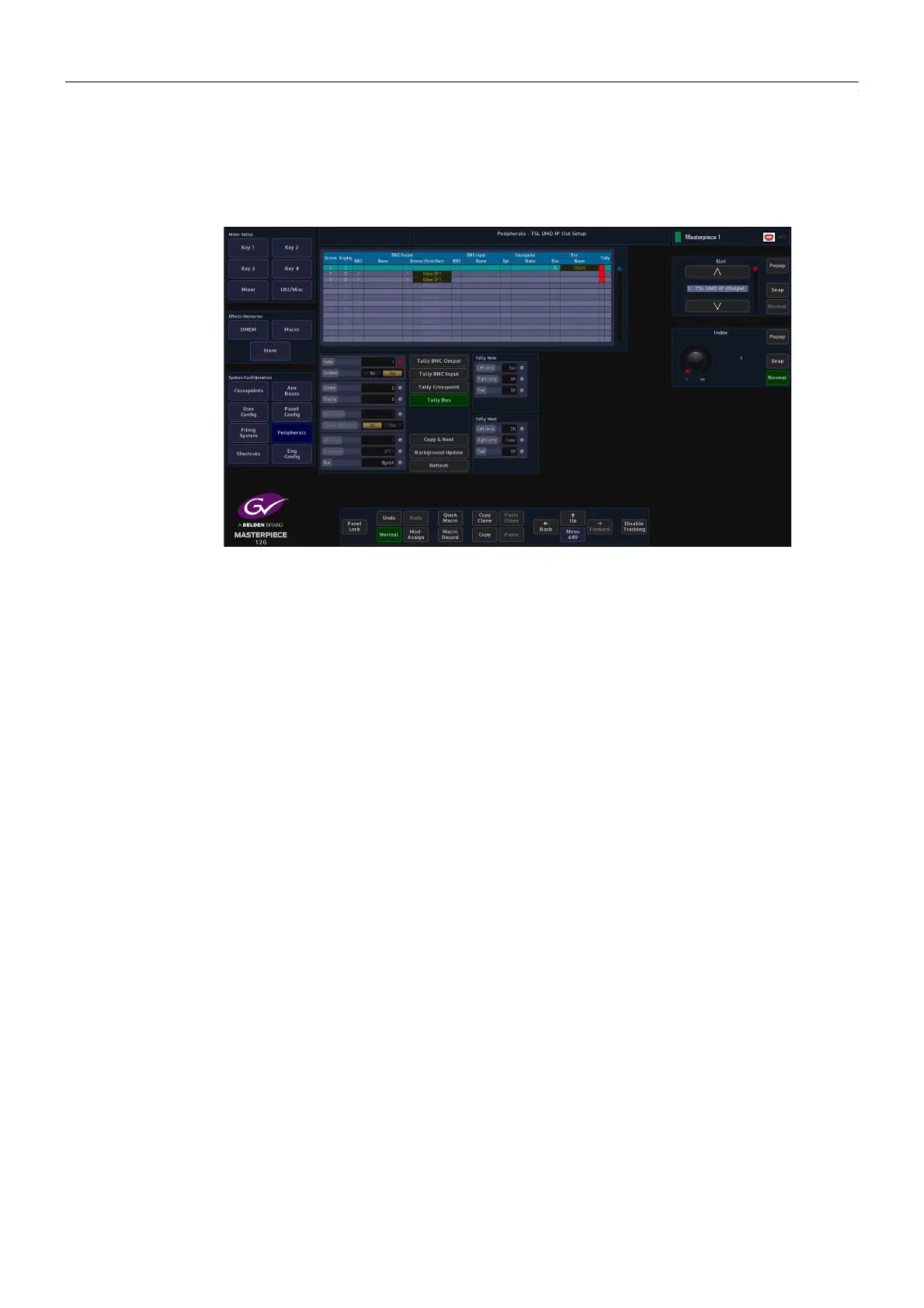

TSL UMD IP Output Setup
This is very similar to the TSL UMD Output, but is used on IP systems. The peripheral is used to
control and send information displayed in the Under Monitor Displays used in galleries and
Multiviewers.
The protocol is connected to Masterpiece over a network via IP Client or IP Server .
The menu has the ability to have Bus Tally as an Option for the A and B, Buses. thus allowing for
the Automation XPT to always show the correct BNC name on Air (for example) when using the
Automation XPT system.
This will also show the correct name when you override the Automaton from the panel by
selecting XPT's manually.
Select the UMD address, then select the BNC output from the Masterpiece mainframe, the user
can then select if they wish to display the output name from the Masterpiece system to be
displayed on the under monitor display.
A tally is also displayed if the source to the under monitor display is on air.
