GRASS VALLEY MASTERPIECE User Manual

114
Engineering, User & Panel Configuration
System Standard
System Standard - UHD Mode

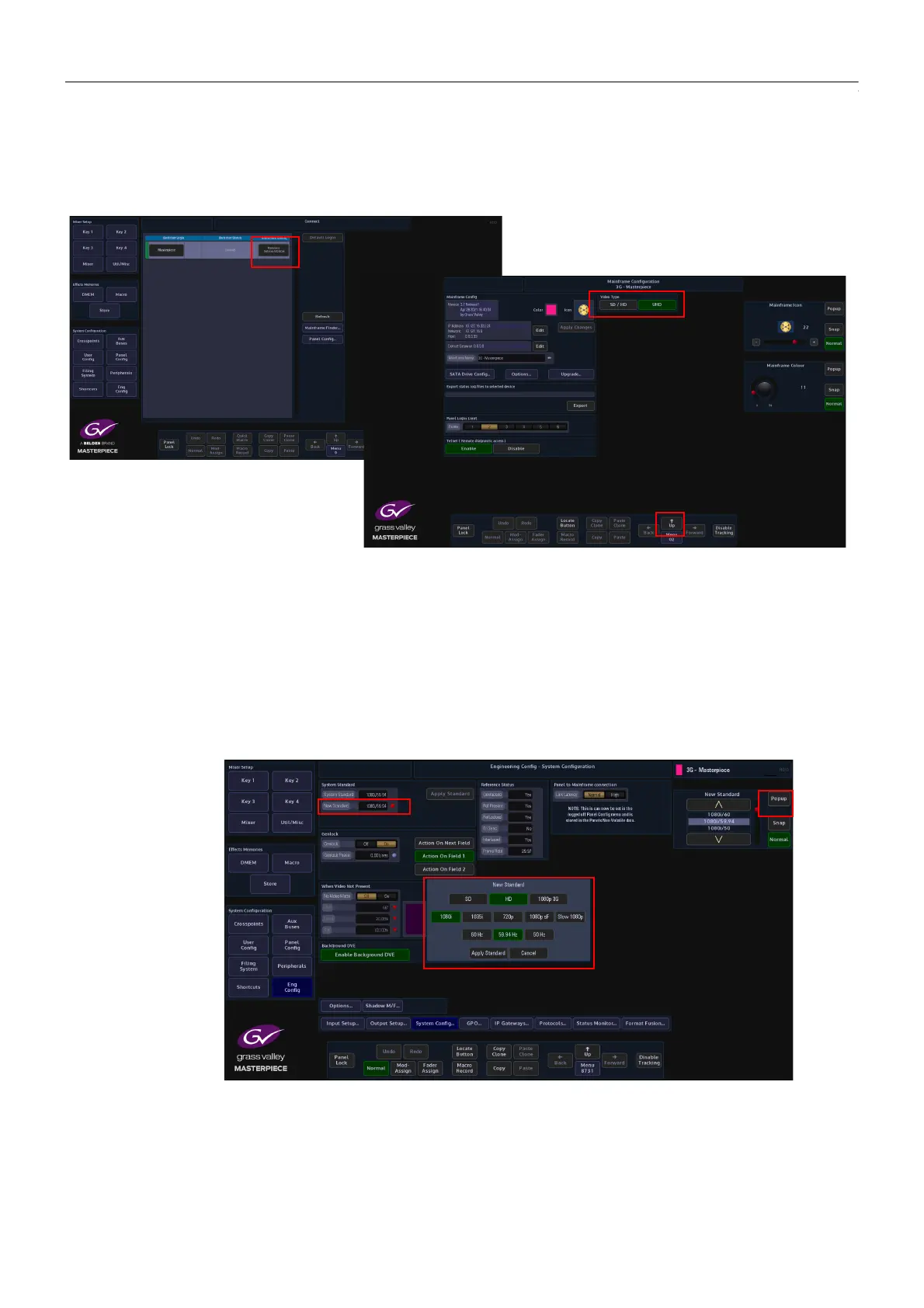

The first step in enabling UHD is in the “Mainframe Config” menu, in the logged out state in the
connect menu.
Touching the {Mainframe Config} button will open the “Mainframe Configuration” menu.
Touch the {UHD} button to select UHD mode, then press the {Up} button to go back to the
“Connect” menu, then touch the {Switcher Login} button to log back into the Masterpiece
operational menus.
The System Standard menu can be set to “UHD Mode - Quadrant” or “UHD Mode - 2SI”,
however the user can choose between the UHD standards by touching the “Popup” button top
right to reveal a “New Standard” dialog box. From the dialog box the user can select what type
of UHD standard the system is set to, as shown below.
