95
Masterpiece
User Manual
The default settings in the “Slow”, “Medium” and “Fast” transition options can be adjusted
using the “Trans Time” parameter. Touch the Slow, Medium or Fast option and it will turn
yellow indicating that it is selected, then adjust the Trans Time parameter as required.
The “Delay Time” parameter will place a delay on the audio if the sync is out with the video.
Enabling the “Voice Over” is the Grass Valleye as enabling AES In 1 in the Voice Over Audio
menu.
The In/Outputs display the “Shuffle” for 16 channels of AES, the profile displayed is for AES In 1.

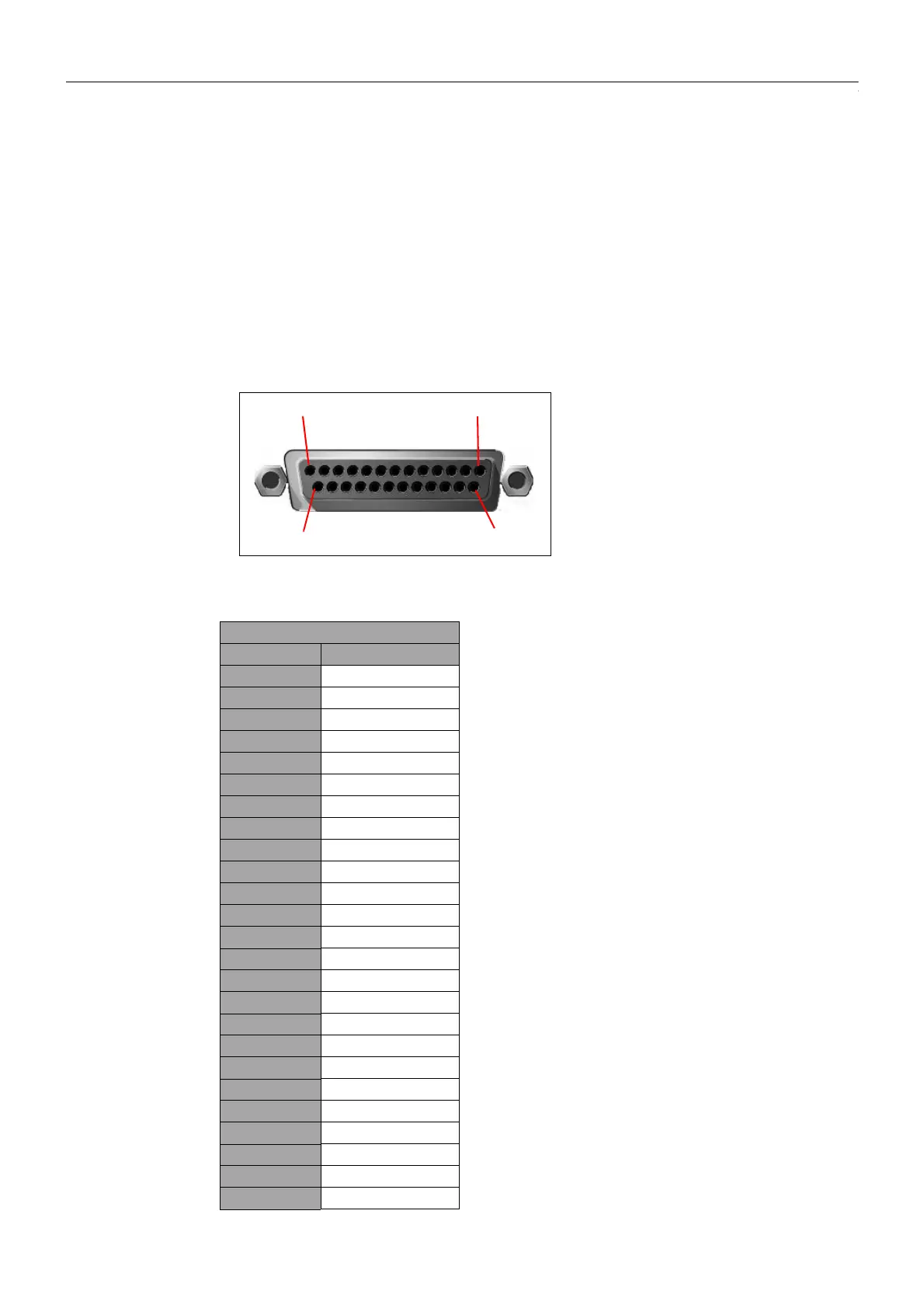

25 Way AES/LTC Connector In/Out Pin Configuration
The diagrams below display the single 25 Way D-type AES/LTC connector at the rear of the
Masterpiece mainframe and the pin-out configuration with signal information for each pin.
AES/LTC Pin-outs
AES/LTC 45 - 66
Pin Signal
1 LTC (+)
2 GND
3 Out 5/6 (-)
4 Out 3/4 (+)
5 GND
6 Out 1/2 (-)
7 In 7/8 (+)
8 GND
9 In 5/6 (-)
10 In 3/4 (+)
11 GND
12 In 1/2 (-)
13 NC
14 LTC (-)
15 Out 5/6 (+)
16 GND
17 Out 3/4 (-)
18 Out 1/2 (+)
19 GND
20 In 7/8 (-)
21 In 5/6 (+)
22 GND
23 In 3/4 (-)
24 In 1/2 (+)
25 GND
