Masterpiece Menu Operation
The Masterpiece GUI
The Masterpiece GUI
The Masterpiece GUI is part of the physical control surface, it is mainly used for monitoring the
status of the of Masterpiece; Key layers, Program/Preview outputs and Audio/Video transition
setup
Information and Title Bar with a Swipe Function
The Title Bar displays the name of the current menu. Swiping a finger in the “Swipe Area” in a
left to right action will go back through the previous menus. If the user wishes to go forward
then swipe in a right to left motion.
There is also an “Up” or Back button that will back to the previous menu.

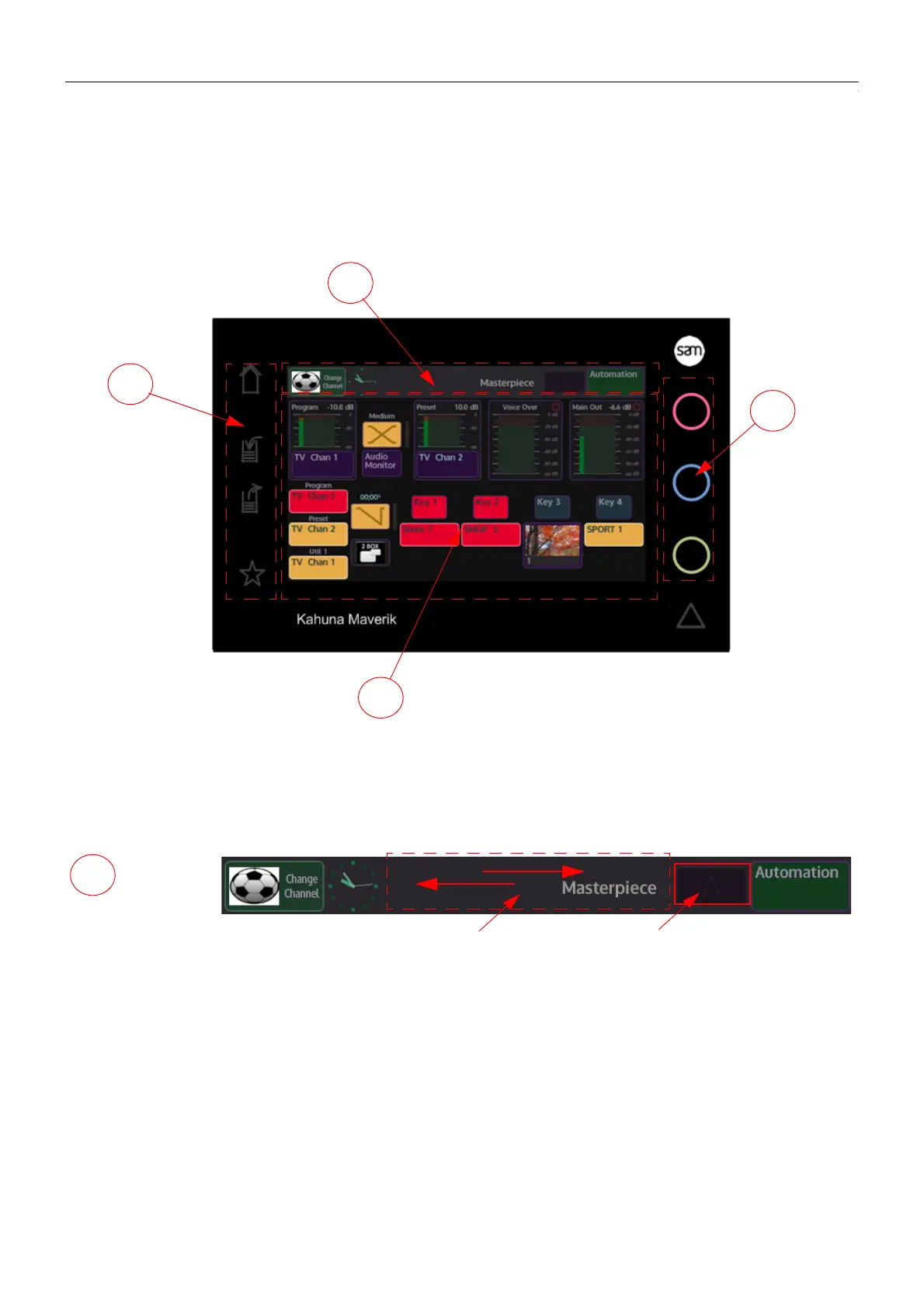

1
4
3
2
Title Bar
Rotary
Parameter
Controls
Touch Screen
Menu Area
Touch
Navigation
Copy
Paste
and
Side Bar Menu
Buttons
Swipe Area
Up or Back button
