Masterpiece Mainframe Rear Connectors

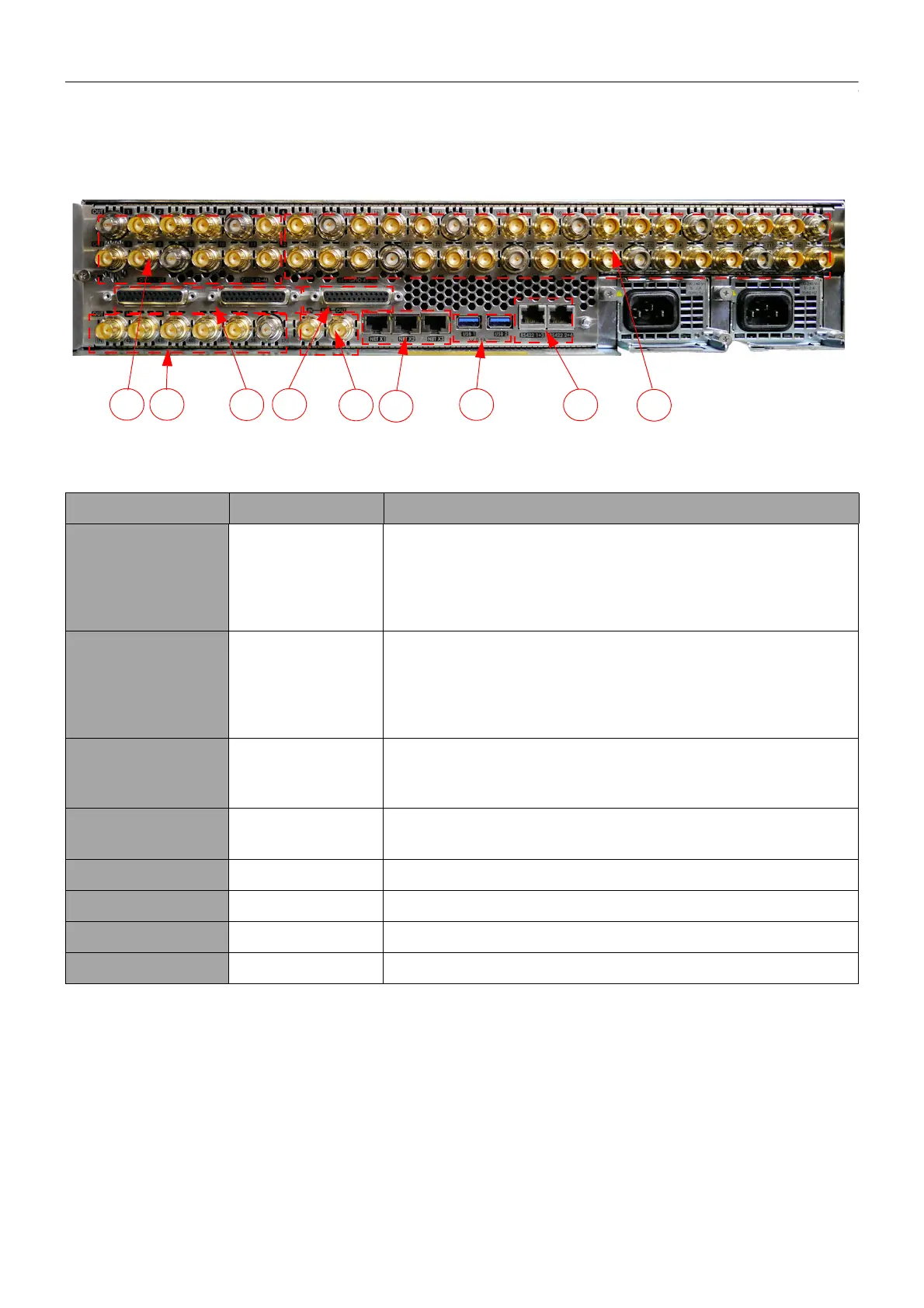

12G-SDI Mainframe Rear Connectors
12G-SDI Mainframe Rear Connectors
A
H
G
B
E
F
B
C
D
12G-SDI Mainframe Connectors
Connectors Description Connector Information
A
Output BNCs
12x HD/1080p (1.485Gbps / 2.97Gbps) Outputs.
Serial digital interface As REC601/ SMPTE/292M / SMPTE424M via BNC
connectors.
Including 3 x 12G-SDI (11.88Gbps SMPTE 2082) single link BNC
connectors (silver BNCs)
B
Input BNCs
For inputs 37 to 42
6 x HD/1080p (1.485Gbps / 2.97Gbps) Inputs.
Serial digital interface As REC601/ SMPTE/292M / SMPTE424M via BNC
connectors.
Including 10 x 12G-SDI (11.88Gbps SMPTE 2082) single link BNC
connectors (silver BNCs).
C
GPIO
44x GPI Tally/GPO Outputs Assignable GPI / GPO Isolated contact
closures via 2 x 25 way D Type.
Assignable as GPI or GPO.
D
AES/LTC
4 x AES inputs and 3 x AES outputs with 1 x LTC input. (AES formal name
is AES3-2003). LTC is Linear (or Longitudinal) Timecode.
E Reference 1x Ref In and 1x Ref out
F Network 3x 10/100/1000 base T
G USB 2x USB3 - for external memory device or hard drives
H Serial 2X RJ45, 4 x RS422 serial ports
