GRASS VALLEY MASTERPIECE User Manual

342
Peripherals
Peripherals - User
User Protocol

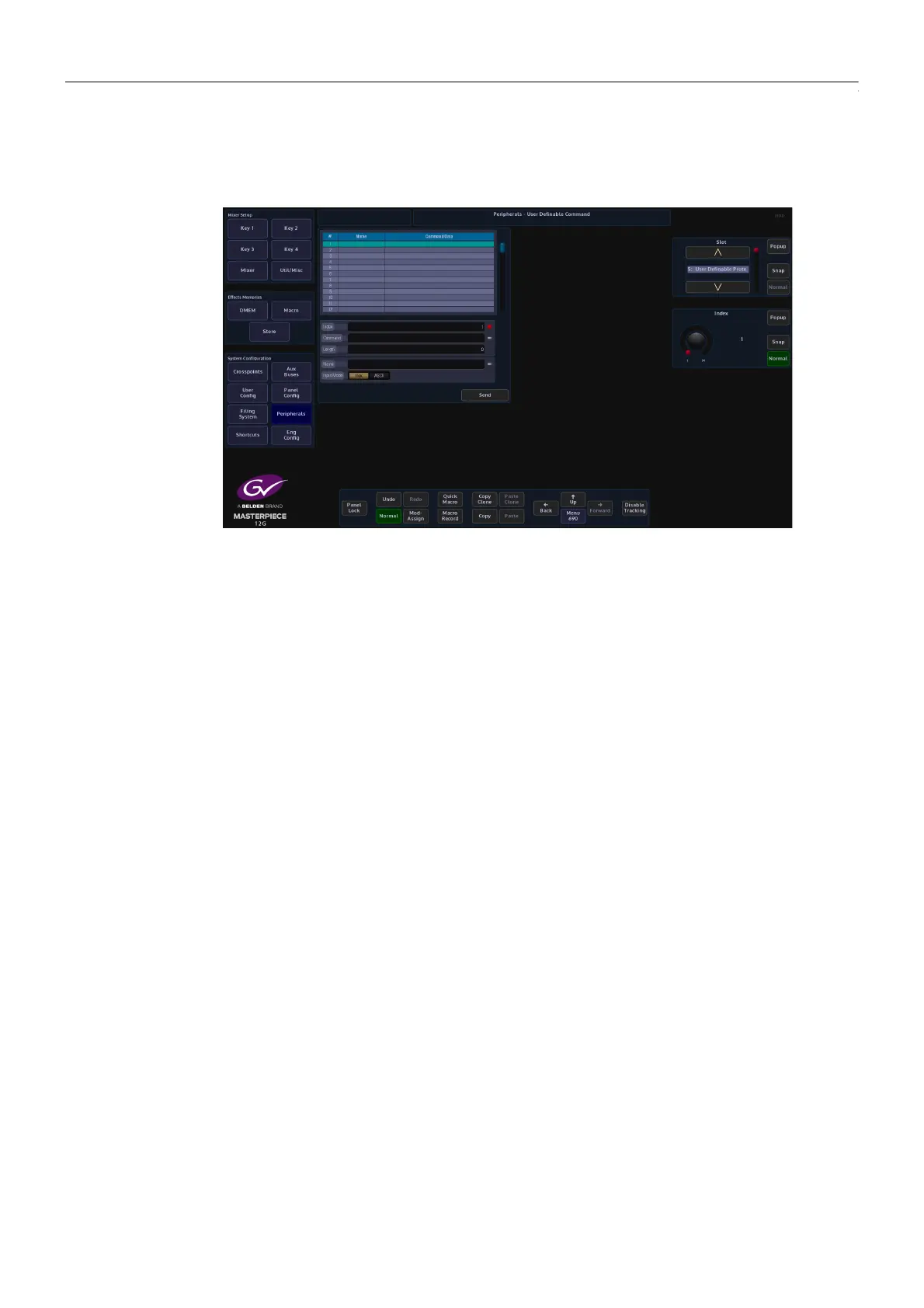

This function will allow the user to type in an ASCII or Hex command/message and send it out
to a serial port.
Slot - selects the serial port that will be used to send the commands
Index - the index number in the table for the selected command
Input Mode - selects between ASCII or HEX as a command form.
Command - command code written by the user. When in ASCII mode, Masterpiece can be
made to also send out two special characters.
To send a carriage return character type “<cr>” and “<lf>” for a line feed character
Length - command length
Name - name (function) given to the command data.
