Masterpiece
User Manual

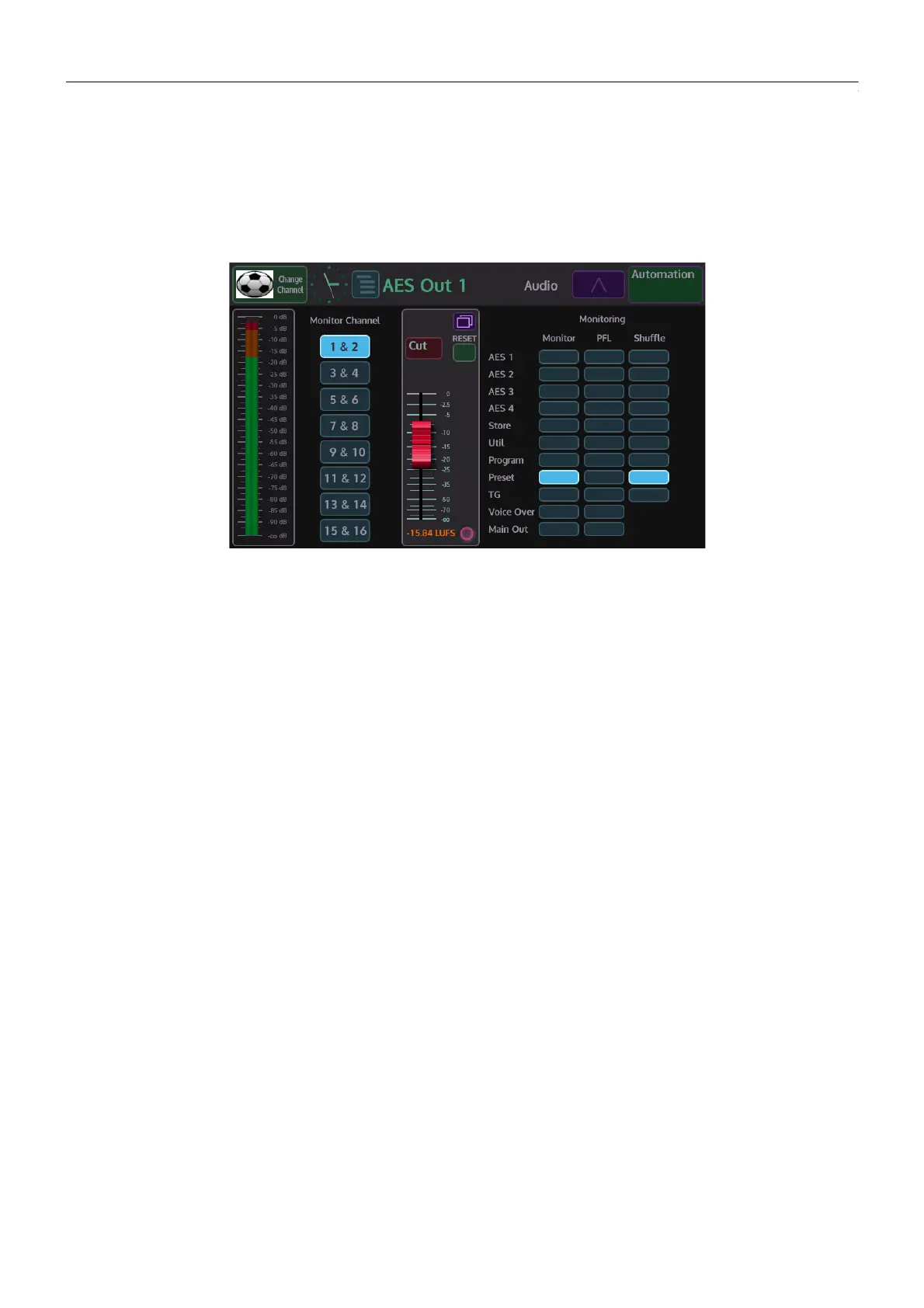

AES Audio Out 1 to 4
The AES Audio Out 1 to 4 menus are used to monitor any of the input stages including the
Main output stage. Each menu does the Grass Valleye function for its AES output
The Monitor Channel are used to select the 2 audio outputs, AES outputs are limited to 2
output channels and allows you to monitor any of the 16 channels into the audio mixer.
The Monitor column of buttons selects the where the audio to be monitored comes from.
Pre Fade Listen or PFL is also a monitor function, PFL allows you to listen to the channel's
audio at a point before the fader for that audio channel takes effect.
Shuffle will allow you to monitor the selected audio channel with any shuffle profiles that have
been assigned to an audio input stage (see the Audio Shuffler section of this chapter).
Cut - this will cut the audio output On/Off
Reset - resets the fader to 0dB (can be overridden by Morpheus automation)
Touching the menu expander will open the settings dialog box. Touch the {Assign} button, the
button will light up “light blue”. The function will be displayed when scrolling through the
function list using the toggle buttons. To enable the function touch the OLED button.
