GRASS VALLEY MASTERPIECE User Manual

165
Masterpiece
User Manual

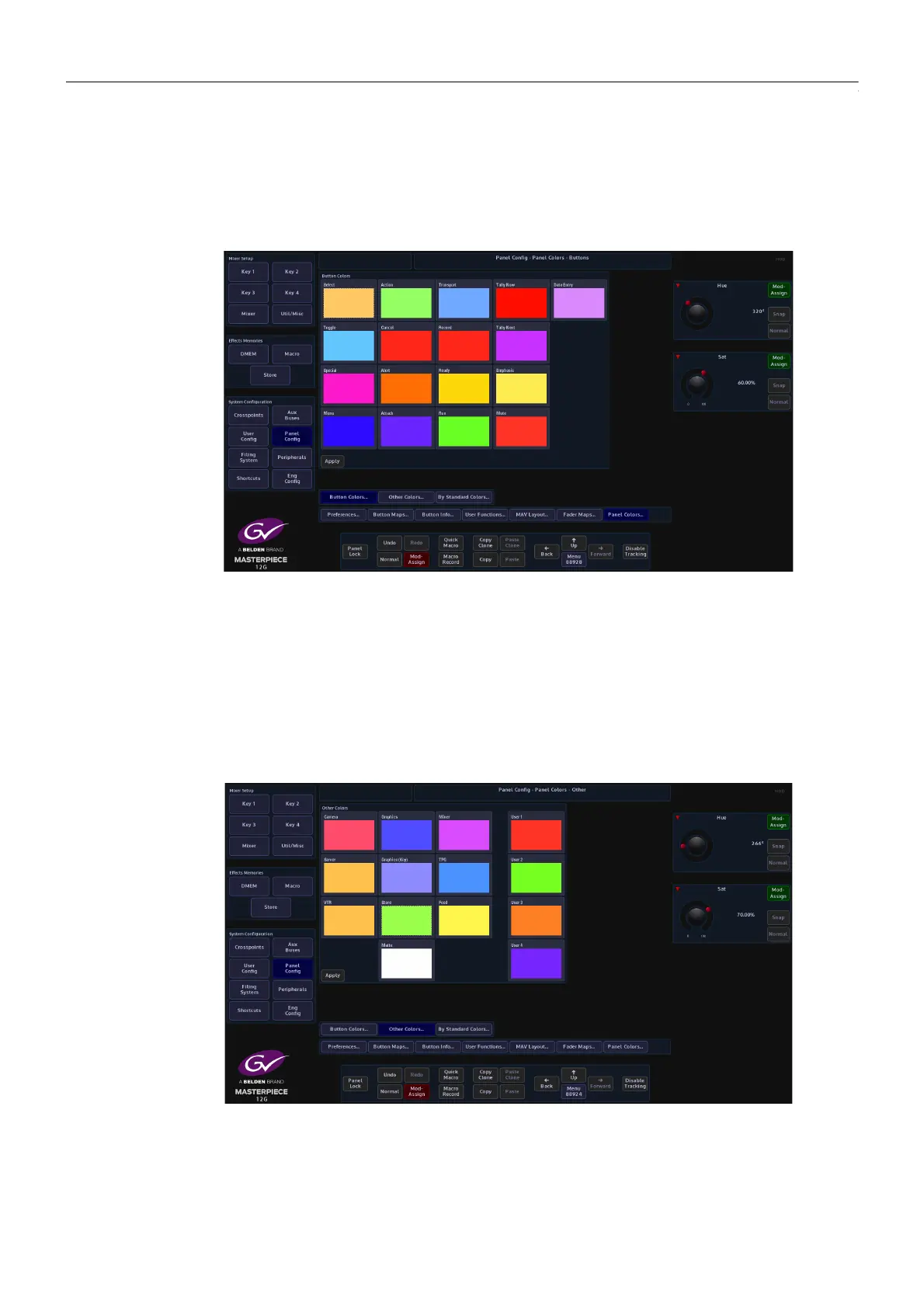

Panel Colors
Button Colors
This menu allows the user to set user defines color schemes to specific buttons on the control
surface and changes color schemes for actions and alerts.
All of the buttons on the control surface can have their default color schemes changed in this
menu. The diagram above Shows an example of the Tally Now adjustment menu. touch one of
the items in the main menu and an adjustment menu will appear.
The default color can be changed by adjusting the Hue and Saturation parameters.
Other Colors
The Other Colors menu allows the user to change the preset color scheme of the Masterpiece
color crosspoint buttons.
In the Crosspoint Mapping menu on the GUI, the user can select crosspoint in the table and
then use the Xpt Lamp Color parameter to set a preset color scheme for the selected
crosspoint.
