GRASS VALLEY MASTERPIECE User Manual

206
Keying and DVE Operation
Dual Tile

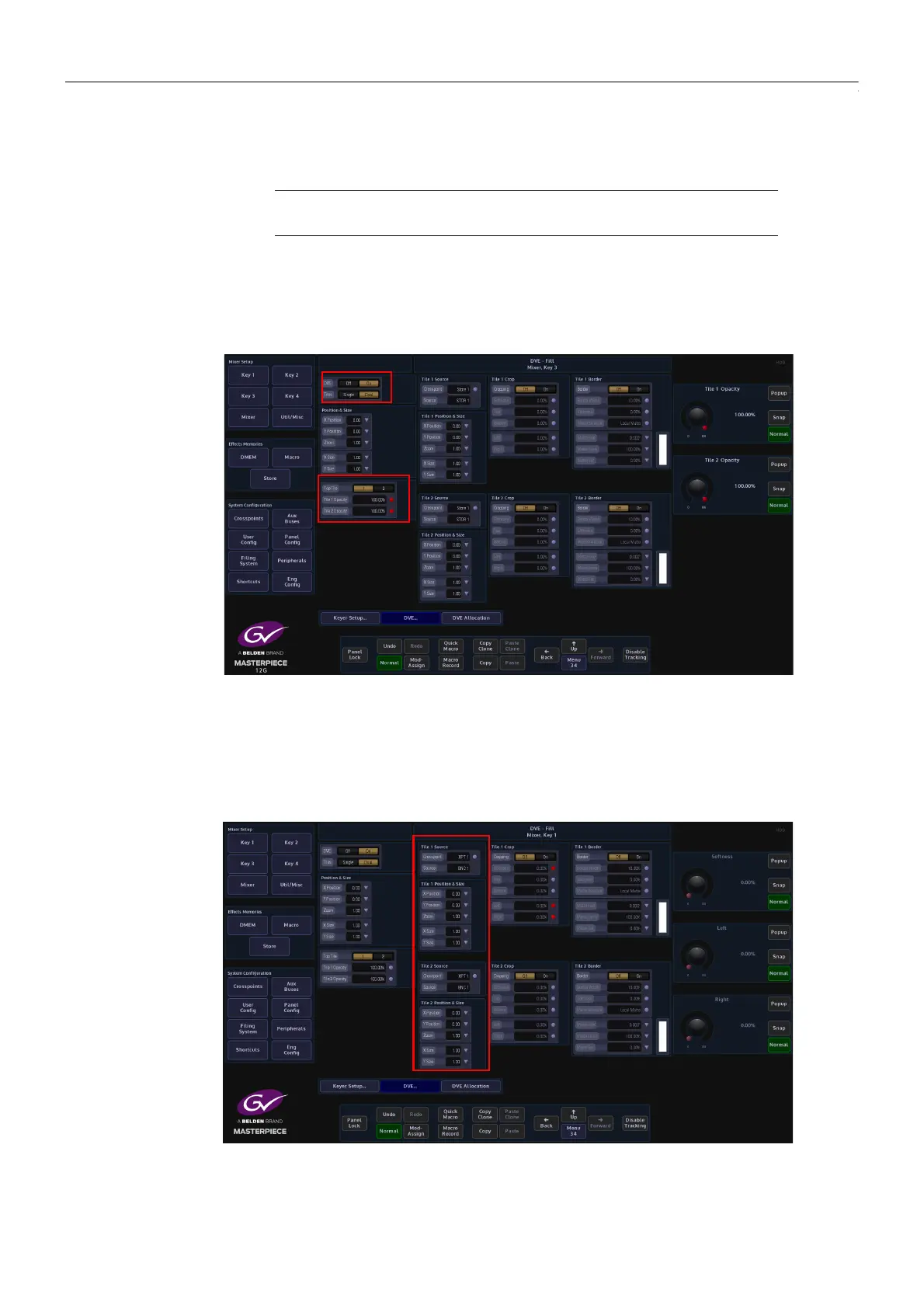

Dual Tile Menu
With a Key Layer on the monitor, make sure that the “DVE” parameter is turned “On” and then
select “Tiles” Dual. Notice that the menu is split in two “Tile One” and “Tile Two”.
Use the “Top Tile” parameter to swap around the tile priority, the bottom tile becomes the top.
The parameter controls for Tiles 1 and 2 are exactly the Grass Valleye. The parameters for Tile 1
will be described in this section.
Use the “Crosspoint” attacher to select the source for Tile 1. This can be a Xpt source, Matte or
Store.
Tile 1 Position & Size
The Position & Size attacher area, allows the user to move a Key Layer around the screen and
to zoom in/out.user-defined
X/Y Position - Parameters are used to move the position of the Key Layer around the monitor
screen.
Note: At this point you will only be able to see one tile, the other is
underneath.
