GRASS VALLEY MASTERPIECE User Manual

319
Masterpiece
User Manual
TSL UMD In
This protocol allows Masterpiece to receive source names from external devices (for example a
Router) Eng Config - Input Setup menu allows Masterpiece to use the source names.

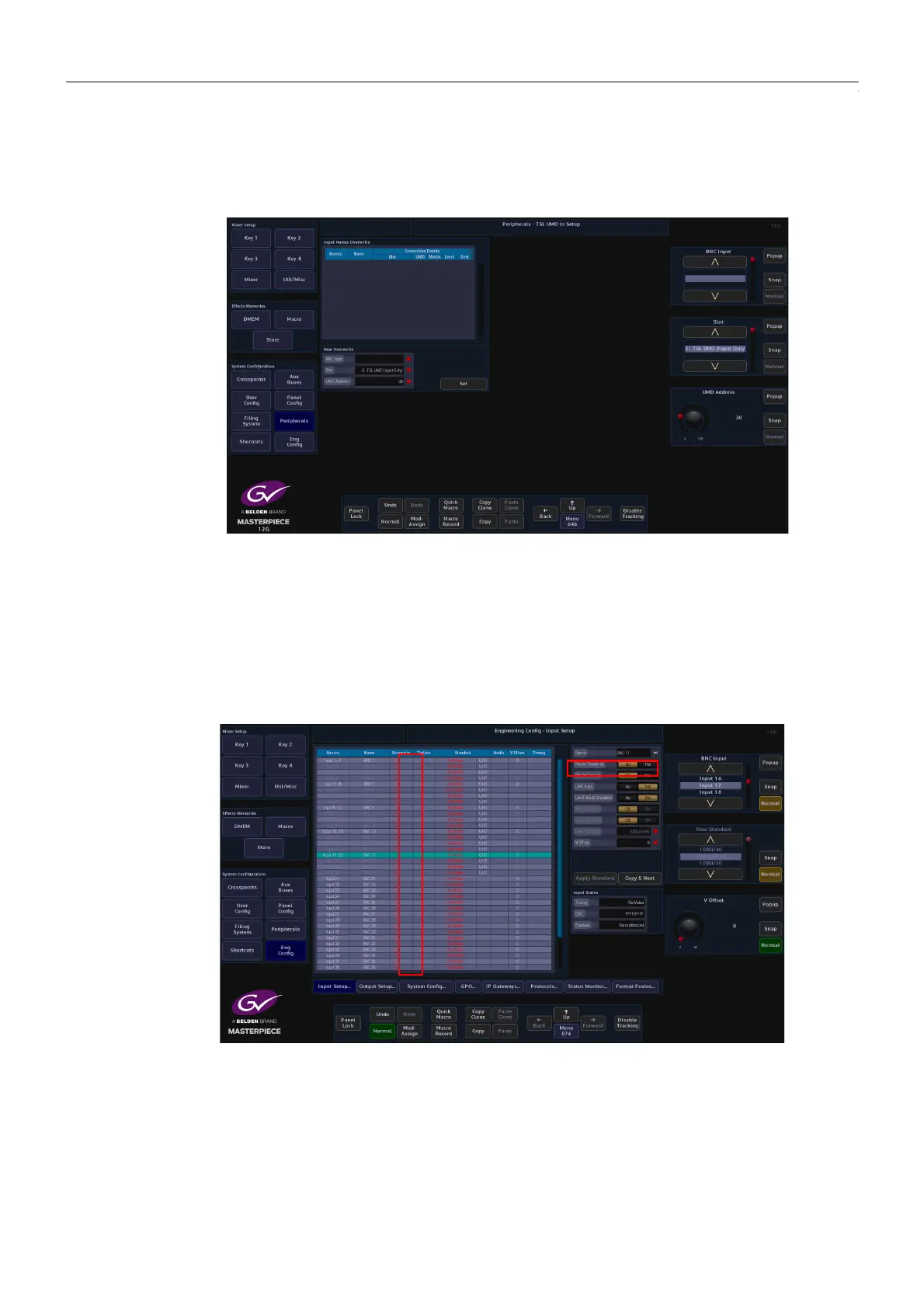

The protocol is setup in the Eng Config - Protocols menu, this will allow the Masterpiece
mainframe to communicate with the external device. Masterpiece is able to receive source
name information from the external device via the RS422/IP connection or the BNC, each
source name is mapped to a UMD address.
From the menu above, assume a source called VTR87 is mapped to UMD address 87 and it is
feeding Masterpiece input 3, the name “VTR87” will overwrite the default name “BNC3”
Using the Router Overwrite parameter in the Eng Config - Input Setup menu, Masterpiece is
able to receive UMD information from any of the BNC inputs. This information will then be
displayed in the input menu’s and can also be used for the mnemonic displays on the control
surface for selecting sources.
