25

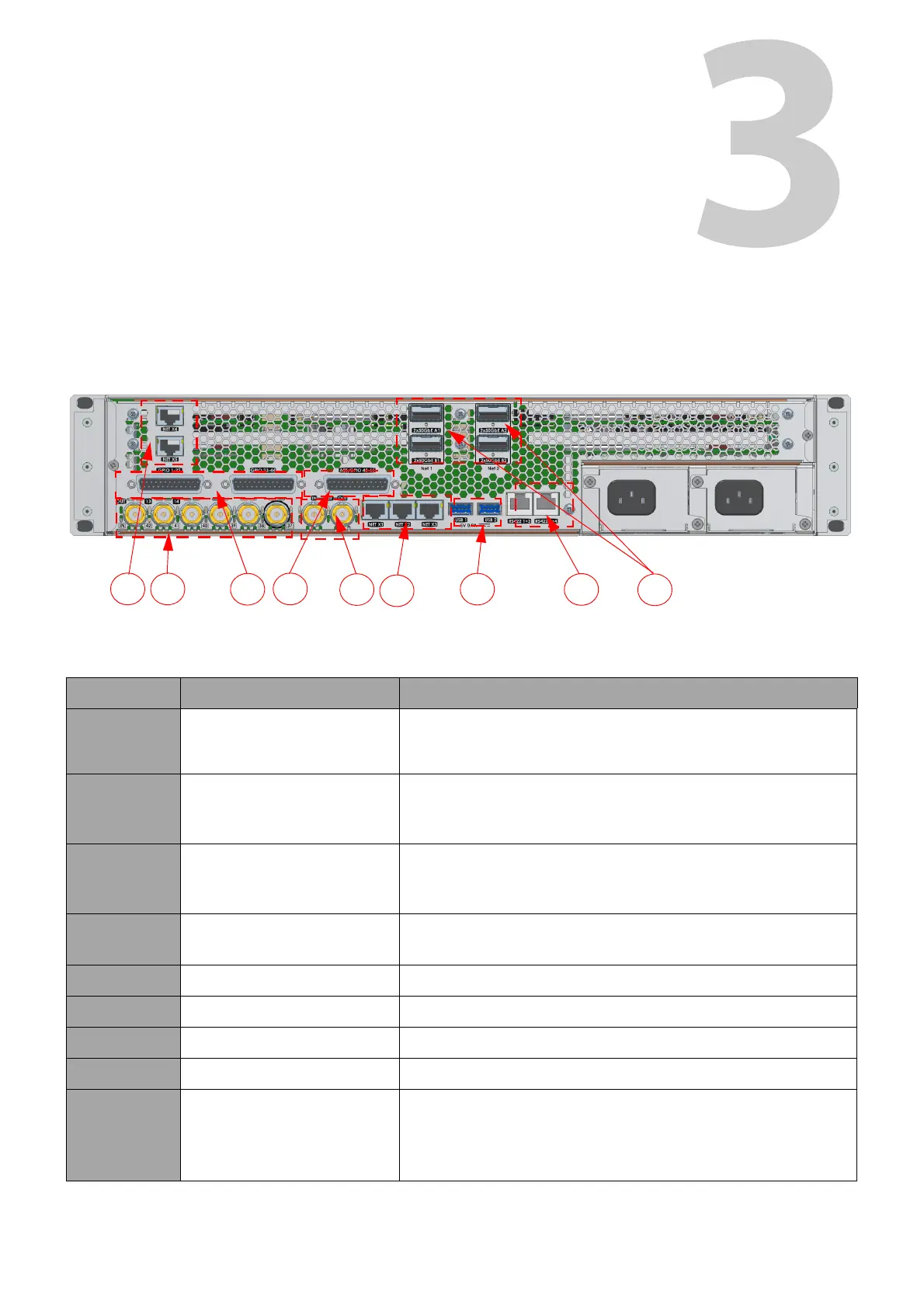

Masterpiece Mainframe Rear Connectors
IP Mainframe Rear Connectors
IP Mainframe Connectors
Connectors Description Connector Information
A
Network
(NOT for connection to Control
Surface or LAN/WAN networks)
NET X4 and NET X5 are used for direct connection from a laptop or
PC for software updates to the IP Fins via RollCall.
B
Input BNCs
For inputs 37 to 42
6x HD/1080p (1.485Gbps / 2.97Gbps) Inputs.
Serial digital interface As REC601/ SMPTE/292M / SMPTE424M via
BNC connectors.
C
GPIO
44x GPI Tally/GPO Outputs Assignable GPI / GPO Isolated contact
closures via 2 x 25 way D Type.
Assignable as GPI or GPO.
D
AES/LTC 4 x AES inputs and 3 x AES outputs with 1 x LTC input. (AES formal
name is AES3-2003). LTC is Linear (or Longitudinal) Timecode.
E Reference 1x Ref In and 1x Ref out
F Network 3x 10/100/1000 base T
G USB 2x USB3 - for external memory device or hard drives
H Serial 2X RJ45, 4 x RS422 serial ports
I
IP Inputs and Outputs
(secondary Inputs/Outputs are
for redundancy)
A1 (primary) 50GbE for Inputs 1 to 18 and Outputs 1 to 6
B1 (primary) 50GbE for Inputs 19 to 36 and Outputs 7 to 12
A2 (secondary) 50GbE for Inputs 1 to 18 and Outputs 1 to 6
B2 (secondary) 50GbE for Inputs 19 to 36 and Outputs 7 to 12
