Masterpiece
User Manual
User Configuration
Mixer Outputs
Masterpiece has 3 fixed Outputs, Mixer Op1, Mixer Op2 and Mixer Op3. For ease of use, the
outputs should be setup as follows:
• Mixer Op1 - Program Out
• Mixer Op2 - Preset Out
• Mixer Op3 - Clean

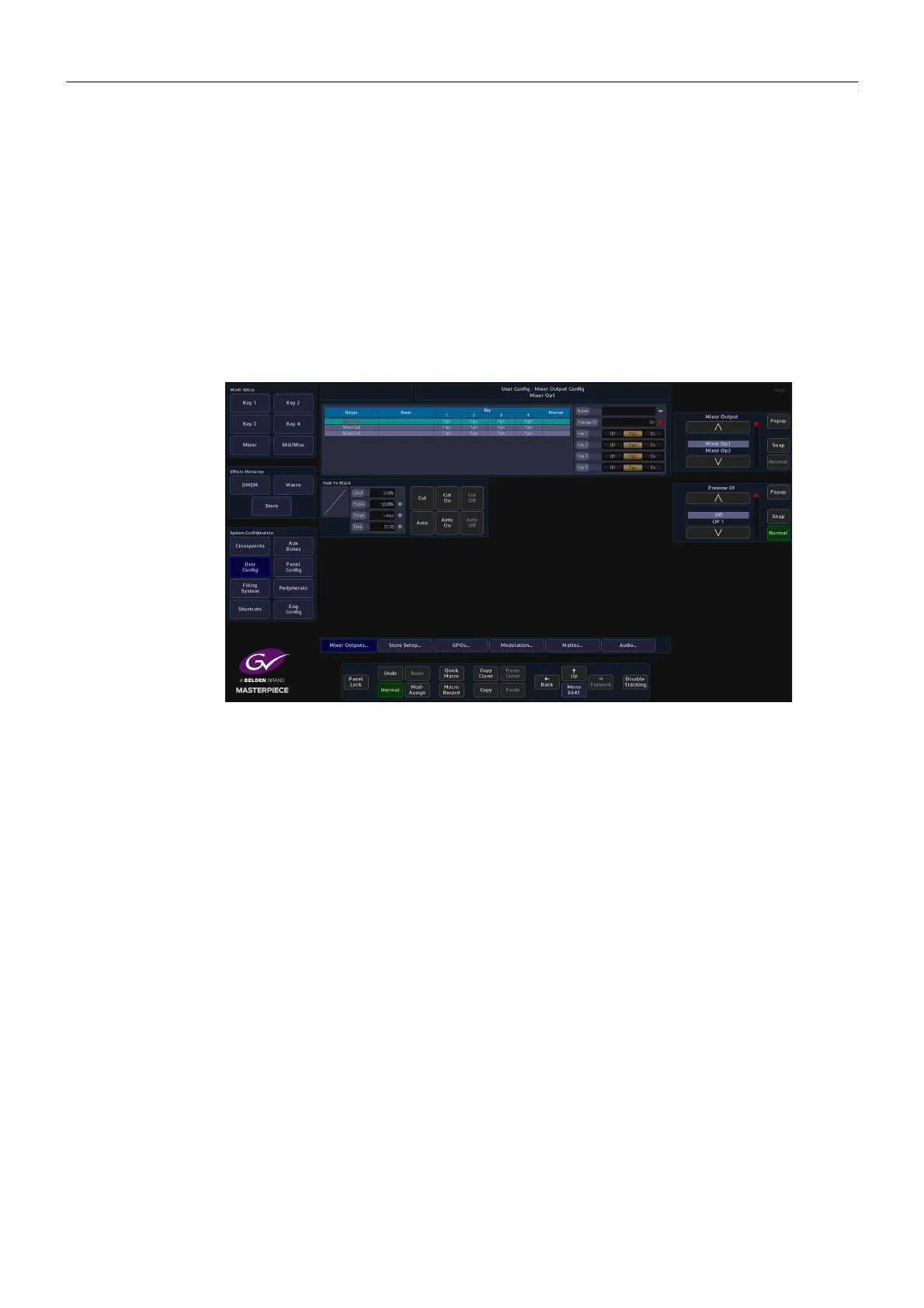

The Table:
Output - The number of Mixer outputs.
Name - This is the user assigned name for the Mixer output
Key1 to Key4 - These columns determine what Keys will appear on the Mixer output.
Off = This Key will NOT appear on this output
Program = The Key is available on this output as determined by the transition status on
the main panel
On = The Key will always be present on this output. The main transition will NOT be able
to remove it.
Preview Of- This sets this output to be a Preview for the Mixer output you select. Previews can
be re-entered but there will be no tally. Once you have selected this option all options to the
right of this will have no effect.
