Masterpiece
User Manual
RollCall Control
This function allows external equipment running RollCall control software to control certain
function on Masterpiece.
Only one instance of the RollCall Control protocol can be loaded at any one time. This instance
of the protocol is system wide, facilitating control of all the available switchers on the
mainframe.
RollCall software will need to be installed onto a computer/laptop which is connected either
directly to one of the network ports on the Masterpiece mainframe or to a network switch that
is connected to the Masterpiece mainframe.

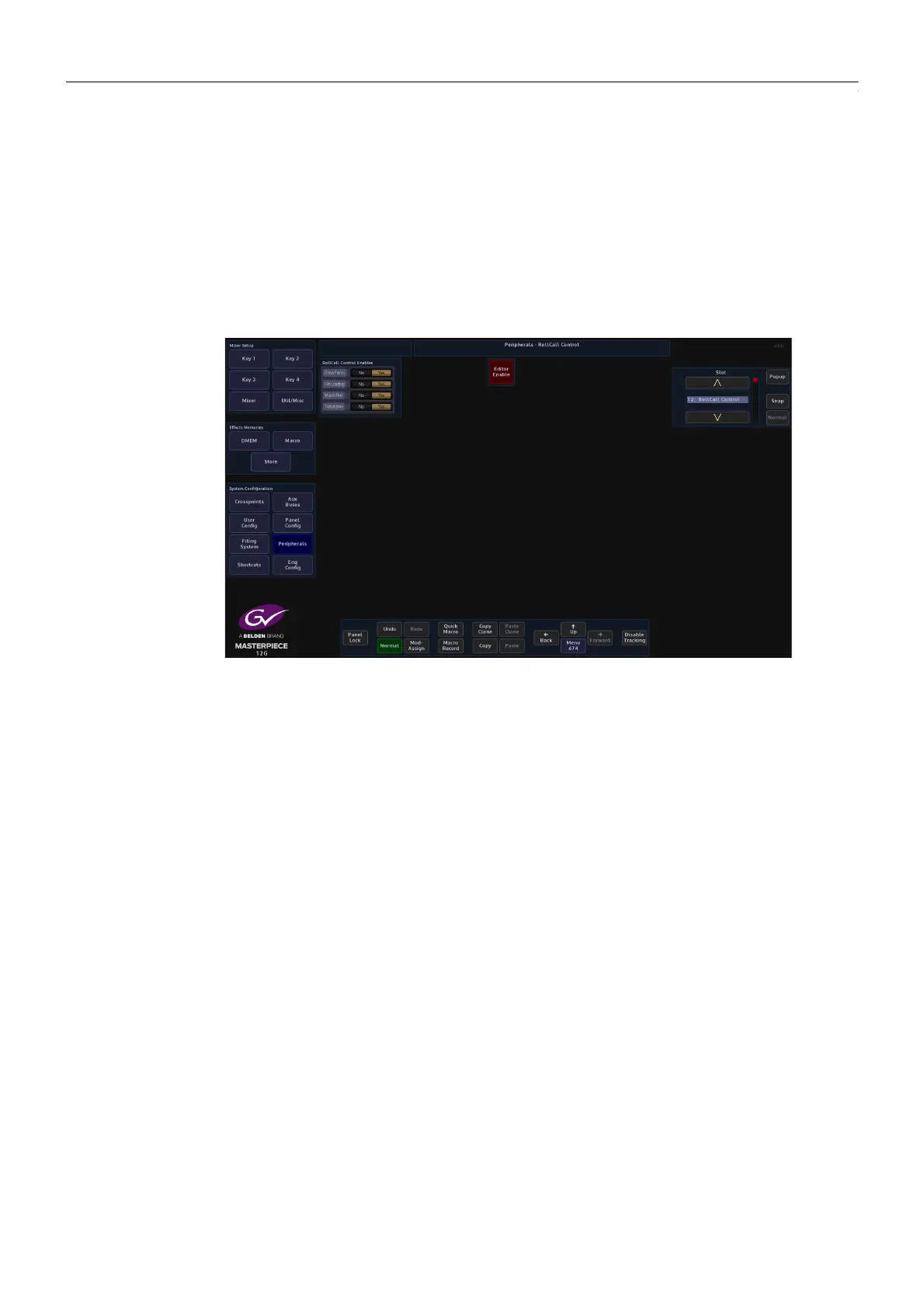

The “Yes/No” parameters allow the user to filter incoming RollCall messages to affect certain
areas of Masterpiece.
Touch the {Editor Enable} button to enable the protocol, then select which RollCall message is
enabled.
The RollCall software is able to control the functions listed above, but with the crosspoint
control, the RollCall software is able to control both internal crosspoints in the Masterpiece
mainframe and allow crosspoints to be controlled via an external control panel.
