TriCore
®
TC1.6P & TC1.6E
32-bit Unified Processor Core
Instruction Set Overview
V1.0 2013-07
User Manual (Volume 2) 2-12

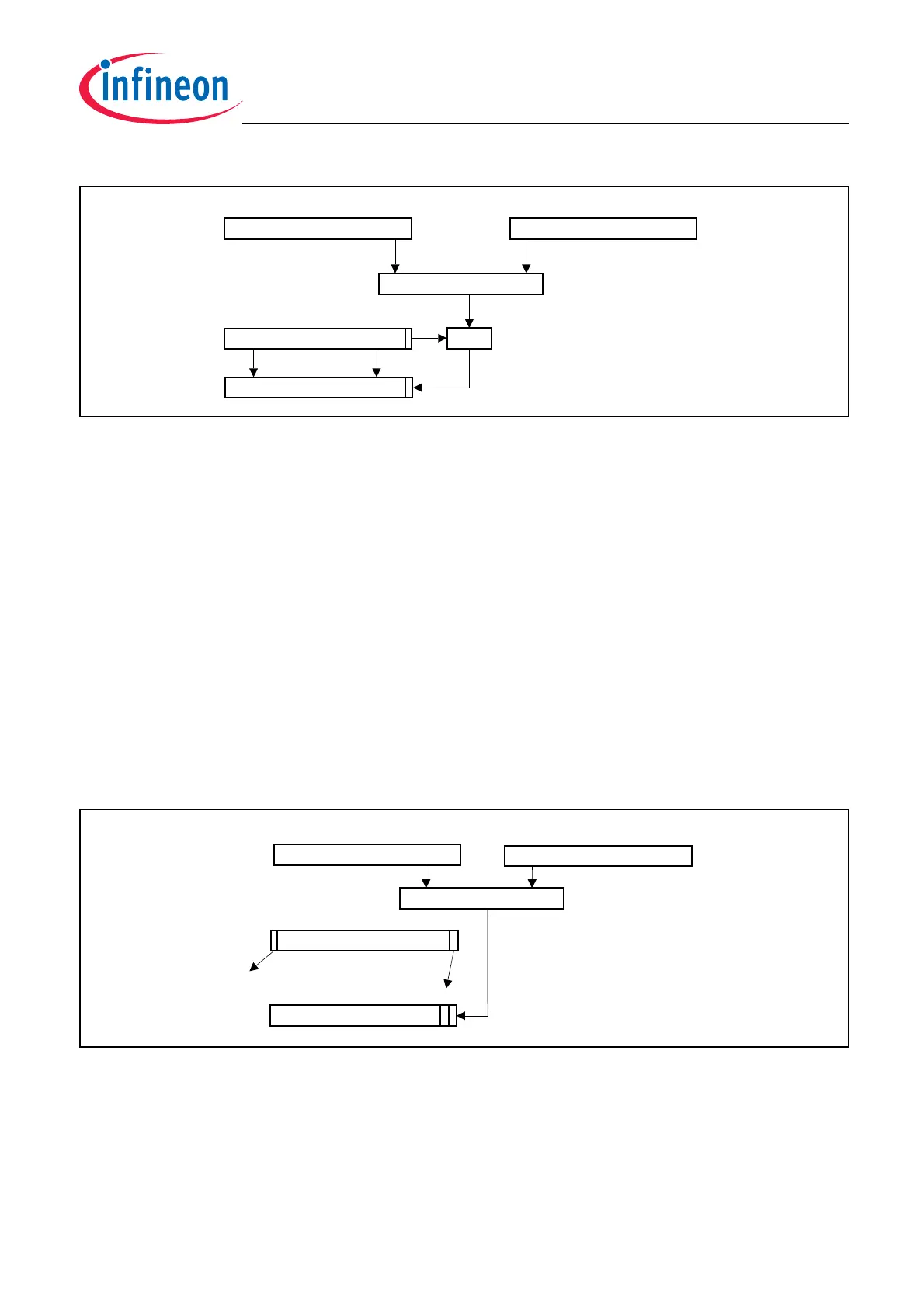

Figure 2-9 Combining LT Comparison with Boolean Operation
The evaluation of the following C expression can be optimized using the combined compare-Boolean operation:
d5 = (d1 < d2) || (d3 == d4);
Assuming all variables are in registers, the following two instructions compute the value in d5:
lt d5, d1, d2; // compute (d1 < d2)
or.eq d5, d3, d4; // or with (d3 == d4)
2.5.3 Compare with Shift
Certain control applications require that several Booleans be packed into a single register. These packed bits can
be used as an index into a table of constants or a jump table, which permits complex Boolean functions and/or
state machines to be evaluated efficiently.
To facilitate the packing of Boolean results into a register, compound Compare with Shift instructions (for example
SH.EQ) are supported.
The result of the comparison is placed in the least-significant bit of the result after the contents of the destination
register have been shifted left by one position.
Figure 2-10 illustrates the operation of the SH.LT (Shift Less Than) instruction.
Figure 2-10 SH.LT Instruction
2.5.4 Packed Compare
For packed bytes, there are special compare instructions that perform four individual byte comparisons and
produce a 32-bit mask consisting of four ‘extended’ Booleans.
For example, EQ.B yields a result where individual bytes are FF
H
for a match, or 00
H
for no match. Similarly for
packed half-words there are special compare instructions that perform two individual half-word comparisons and
TC1052B
A
D[a]
D[b]
B
31 0 31 0
D[c]
031
D[c]
031
op
op = AND, OR or XOR
A < B ?
Discarded
TC1053B
A
D[a]
D[b]
B
31 0
31 0
D[c]
0
31
D[c]
031
Left shift 1
A < B ?
1
2
