Infineon TriCore TC1.6P User Manual

TriCore
®
TC1.6P & TC1.6E
32-bit Unified Processor Core
Instruction Set Overview
V1.0 2013-07
User Manual (Volume 2) 2-20

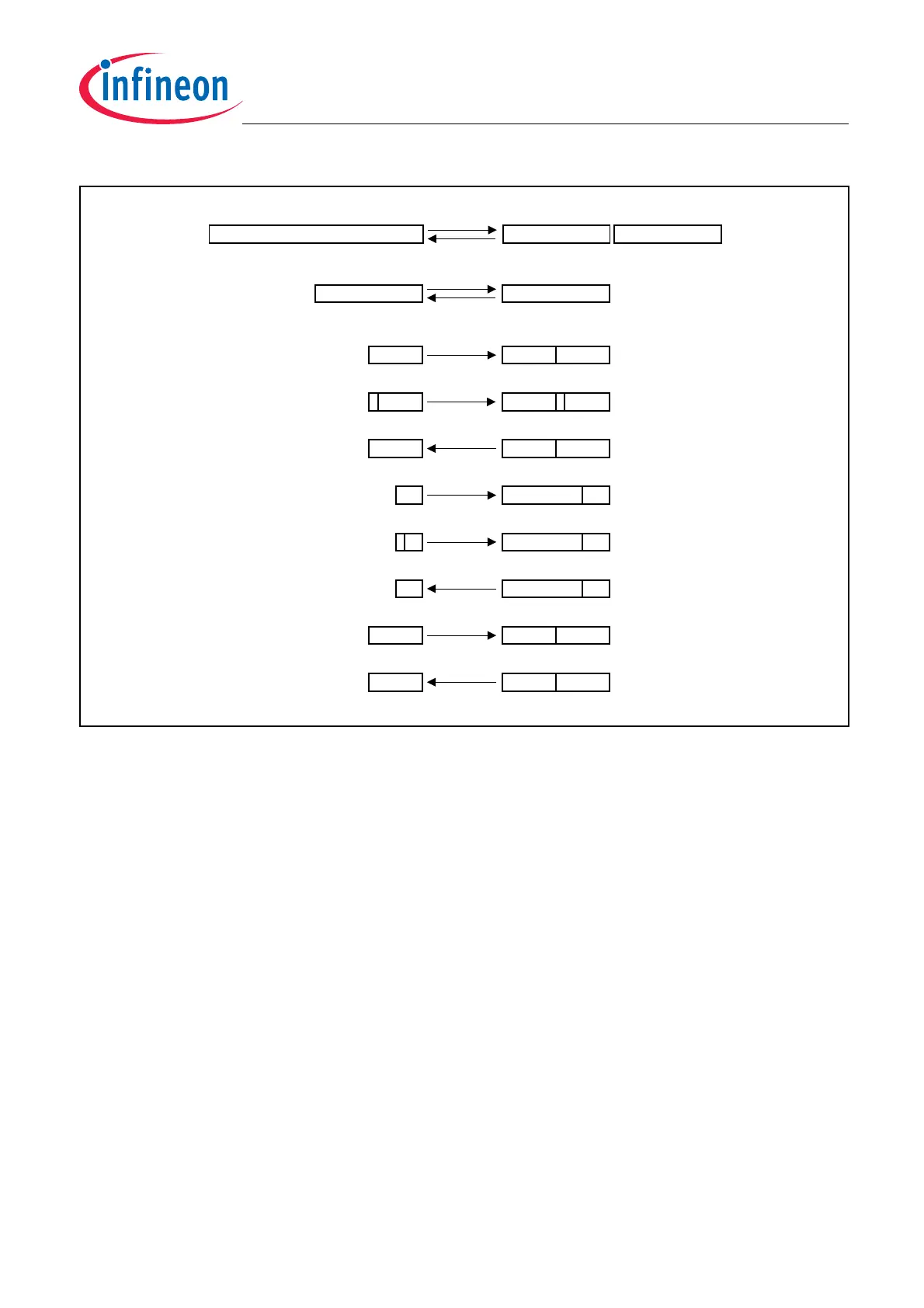

Figure 2-17 Load/Store Basic Data Type
2.10.2 Load Bit
The approaches for loading individual bits depend on whether the bit within the word (or byte) is given statically or
dynamically.
Loading a single bit with a fixed bit offset from a byte pointer is accomplished with an ordinary load instruction. It
is then possible to extract, logically operate on, or jump to any bit in a register.
Loading a single bit with a variable bit offset from a word-aligned byte pointer, is performed with a special scaled
offset instruction. This offset instruction shifts the bit offset to the right by three positions (producing a byte offset),
adds this result to the byte pointer above, and finally zeros out the two lower bits, so aligning the access on a word
boundary.
A word load can then access the word that contains the bit, which can be extracted with an extract instruction that
only uses the lower five bits of the bit pointer; i.e. the bits that were either shifted out or masked out above. For
example:
ADDSC.AT A8, A9, D8; // A9 = byte pointer. D8 = bit offset
LD.W D9, [A8]
EXTR.U D10, D9, D8, 1; // D10[0] = loaded bit
2.10.3 Store Bit and Bit Field
The ST.T (Store Bit) instruction can clear or set single memory or peripheral bits, resulting in reduced code size.
ST.T specifies a byte address and a bit number within that byte, and indicates whether the bit should be set or
cleared. The addressable range for ST.T is the first 16-KBytes of each of the 16 memory segments.
TC1060B
m1
015
m1
07
m1
015
m1
07
s
m1
07
m1
015
m1
015
s
m1
015
m1
031
m1
063
Memory Data
LD.W / LD.A
m1
031
ST.W / ST.A
LD.D / LD.DA
ST.D / ST.DA
M1[63:32]
031
M1[31:0]
031
D[n+1] / A[n+1] D[n] / A[n]
D[n]
0
31
m1
01516
zero fill
LD.HU
s
31 16
sign fill
LD.H
m1
015
s
D[n]
ST.H
D[n]
x
31
m1
01516
0
31
zero fill
0
D[n]
m1
87
LD.BU
s
31
sign fill
0
D[n]
m1
87
LD.B
x
31 0
D[n]
m1
87
ST.B
LD.Q
D[n]
0
31
m1
01516
zero fill
ST.Q
D[n]
x
31
m1
01516
Registers
D[n] / A[n]
