Infineon TriCore TC1.6P User Manual

TriCore
®
TC1.6P & TC1.6E
32-bit Unified Processor Core
Instruction Set
V1.0 2013-07
User Manual (Volume 2) 3-1
3 Instruction Set
The instruction mnemonics which follow are grouped into families of similar or related instructions, then listed in
alphabetical order within those groups.
For explanations of the syntax used, please refer to the previous chapter.
3.1 CPU Instructions

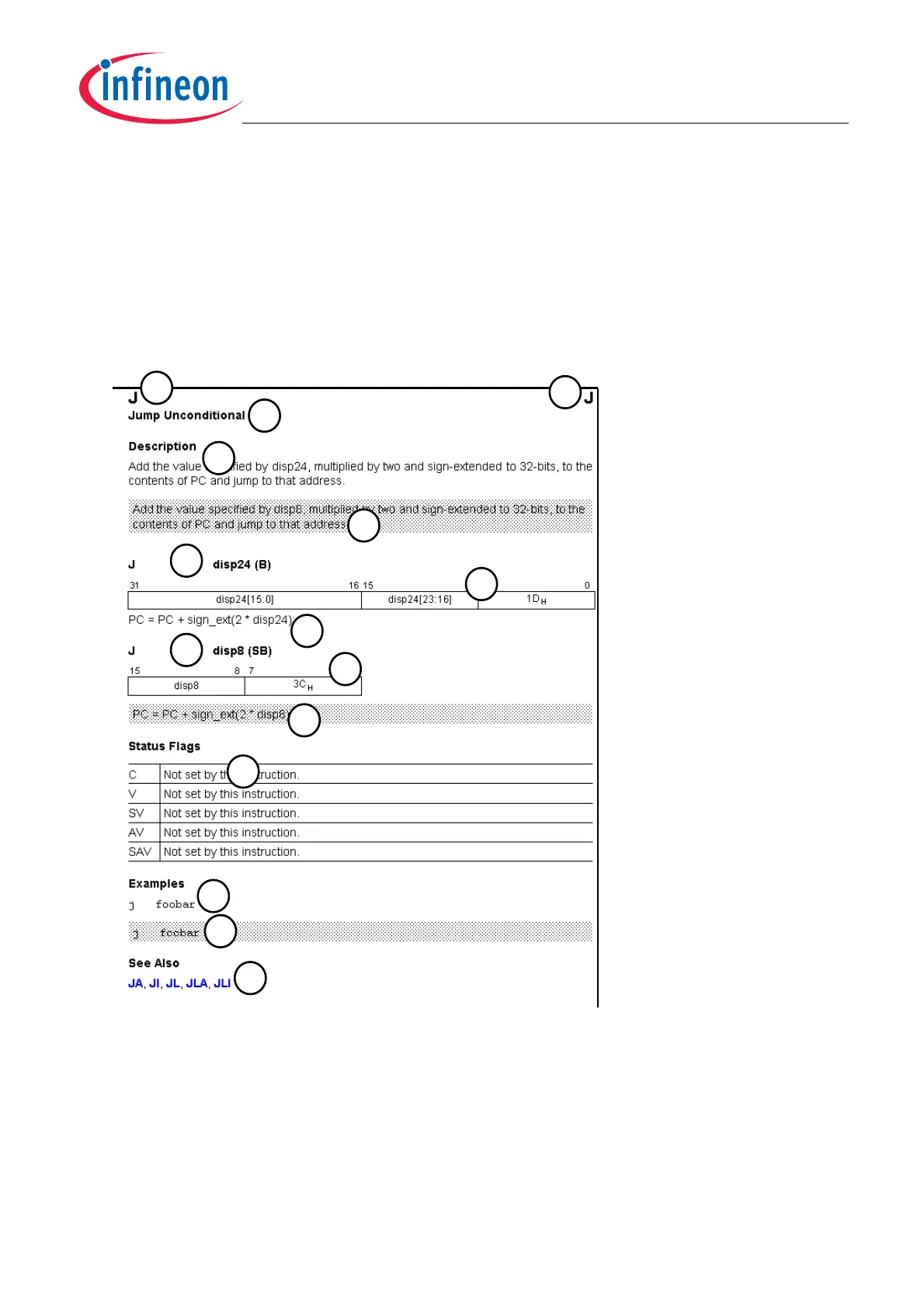

Each page for this group of instructions is laid out as follows:
TC1066
2
2) Instruction Longname
3
4
5
6
7
8
9
10
11
12
13
14
3) Description (32-bit)
4) Description (16-bit)
5) Syntax (32-bit),
followed by Instruction
format in parentheses
1) Instruction Mnemonic
6) Opcodes (32-bit)
7) Operation in RTL format
(32-bit)
Key:
8) Syntax (16-bit)
9) Opcodes (16-bit)
10) Operation (RTL) (16-bit)
11) Status Flags
(User Status Bits)
12) One or more Instruction
Examples (32-bit)
13) Instruction Examples
(16-bit)
14) Links to related
instructions
1
1
