5. 11. 2 KT lines and Line Keys

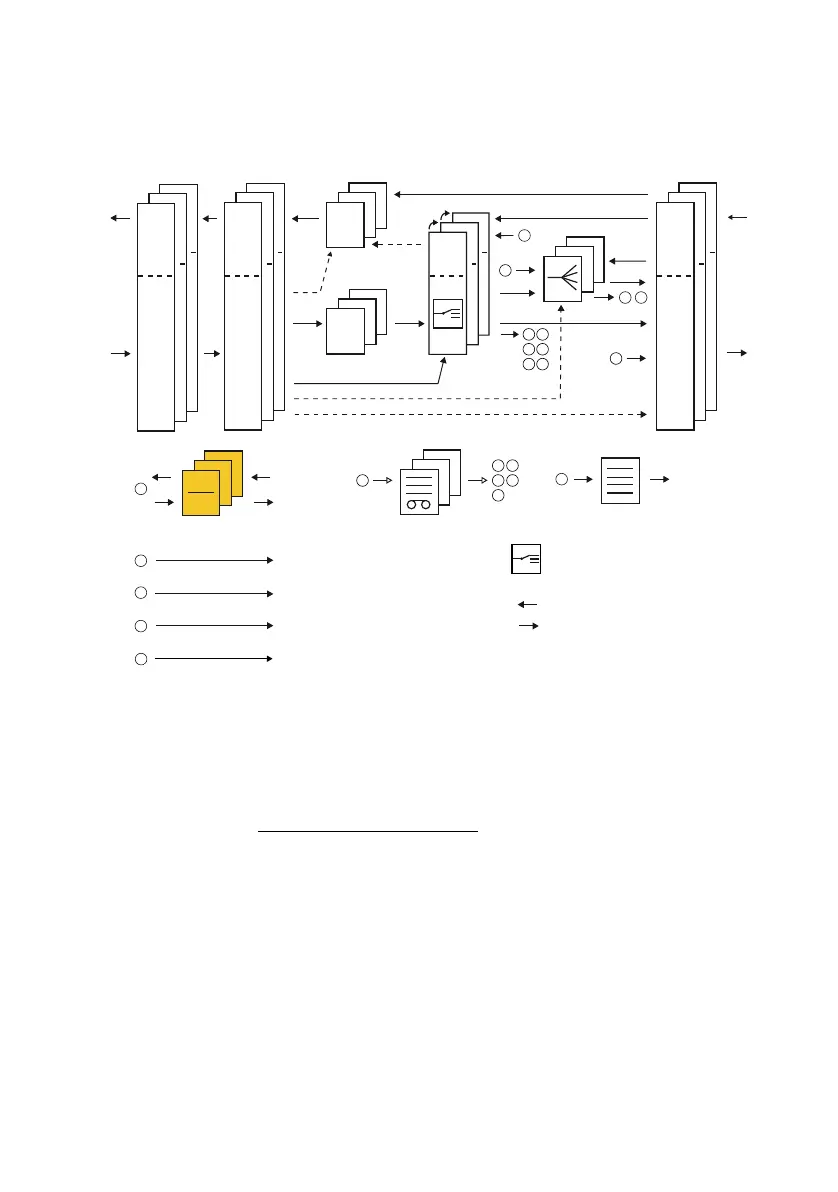

Fig. 71 Key telephones in relation to the other routing elements
KT Lines
Each call distribution element is allocated under its reference number one or more
lines for key telephones (KT lines) if KT line or combinations with KT has been set as
the destination (see "Call destination", page 121
).
Line Keys
Each line key of a key telephone is allocated to a KT line. For example one line key is
allocated to KT line "1/1", another to KT line "1/2". The first digit is the reference num-
ber of the call distribution element; the second digit is the line number. Moreover, a pri-
ority can be chosen with which the call is offered on this line.
