Routing elements
160
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
Utilization of the queue with announcement is subject to the acquisition of a licence.
The Queue is assigned with the call destinations in the CDE configuration.
Restrictions:
Any call forwarding actions (CFU, CFNR, default call forwarding, call forwarding if un-
obtainable, etc.) configured at the call destination are not executed.
Integrated mobile/external users and PISN users are not called.
Internal calls are only routed via the queue if the internal user is called via the call num-
ber of his call distribution element.
See also:
For more detailed information on the mode of operation and the necessary configuration steps,
see the Chapter "Queue with announcement (Number in Queue)", page 449.
5. 13 ACD Server

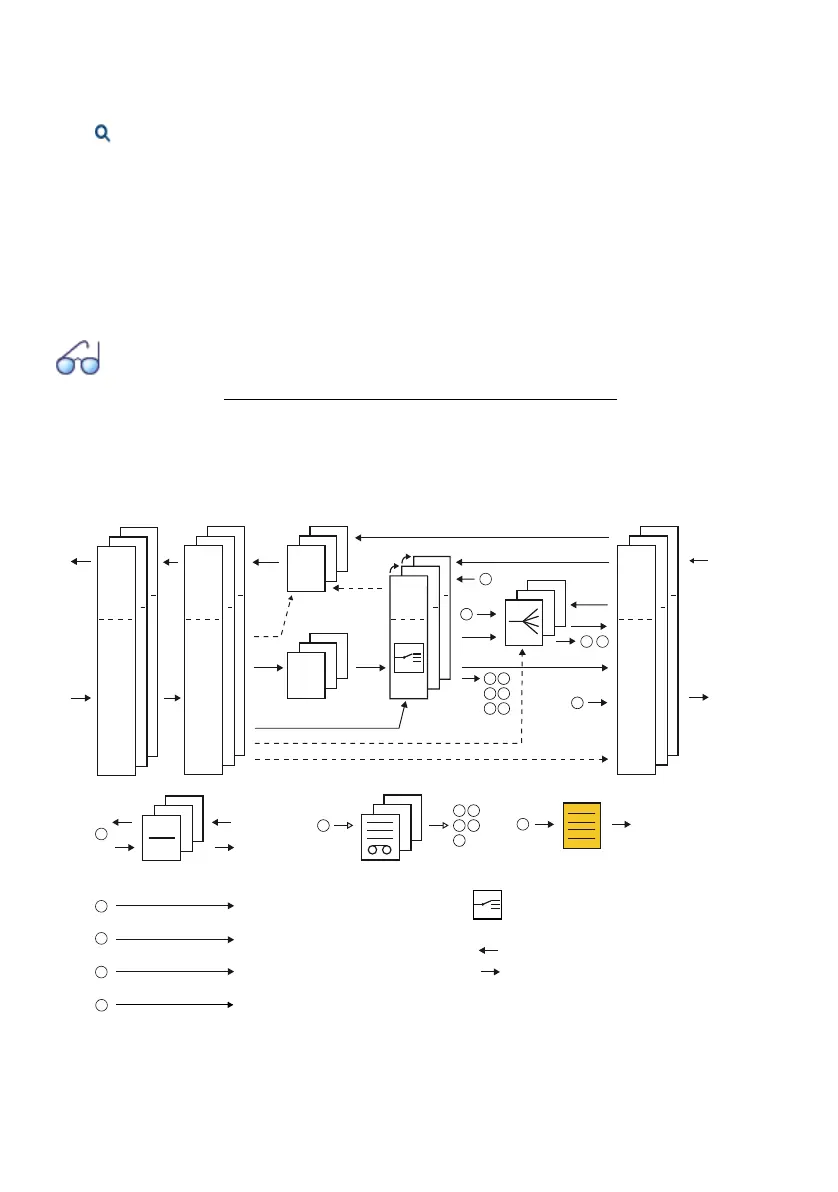

Fig. 78 The ACD server in relation to the other routing elements
