Mitel 430 - Call to the Public Network Via a Key Telephone

Call routing
200
System functions and features as of R4.1
syd-0570/1.2 – R4.1 – 08.2016
6. 4. 3. 2 Call to the public Network via a Key Telephone
Dialling via a line key on a key telephone routes the call via the allocated KT route The
KT route is entered in the call distribution element of the KT line.
The call charges can be logged (among others) at the KT cost centre. The KT cost
centre is entered in the call distribution element of the KT line (for more information on
call charge allocation see page 262
).
[1] One and the same trunk group cannot contain both analogue and digital network interfaces.

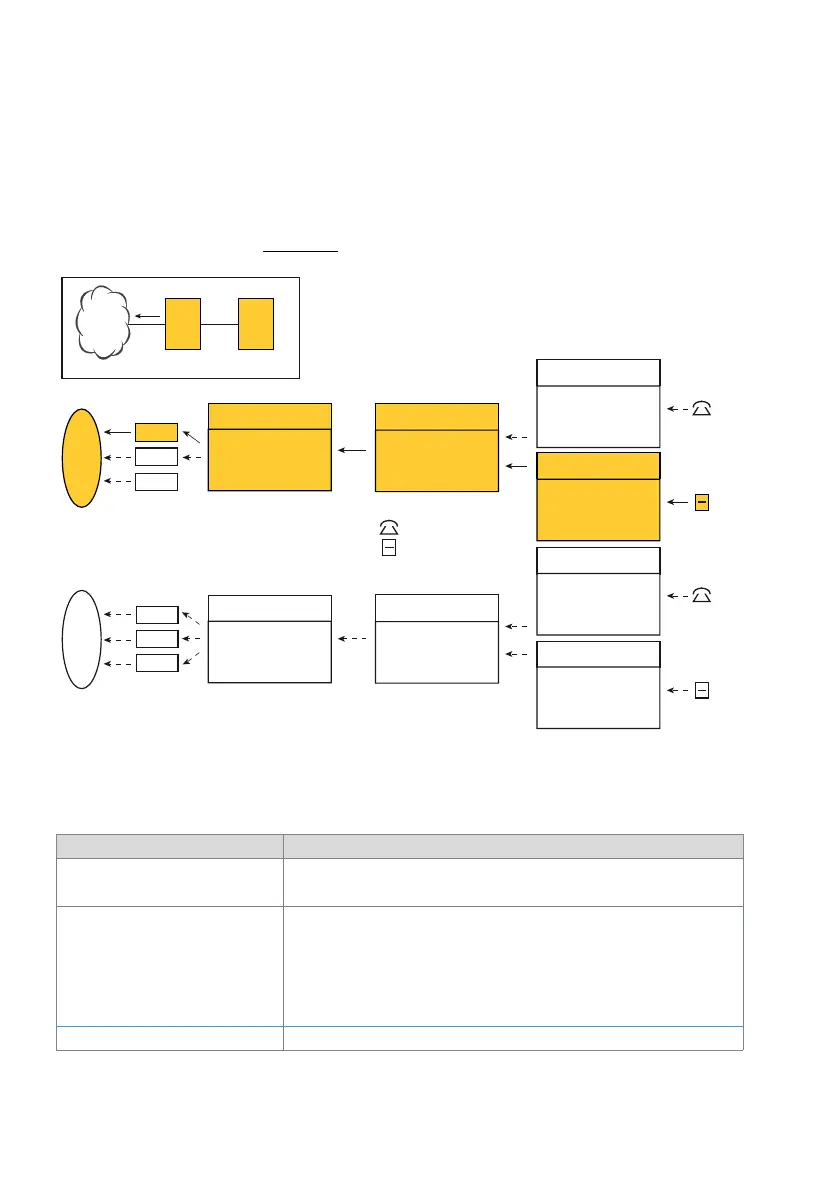

Fig. 94 Routing a call to the public network via a line key of a key telephone
Tab. 38 Setting the routing parameters
Parameter Parameter value
Call distribution element 1:
• KT route 1 (route reference number)
Route 1:
• Trunk group 1 (reference number of one or more trunk group(s))
• Max outgoing calls Number of calls going out simultaneously via this route
• External digit barring activated (poll digit barring)
• Numbering plan identifier (NPI) E.164
Trunk group 1
[1]
